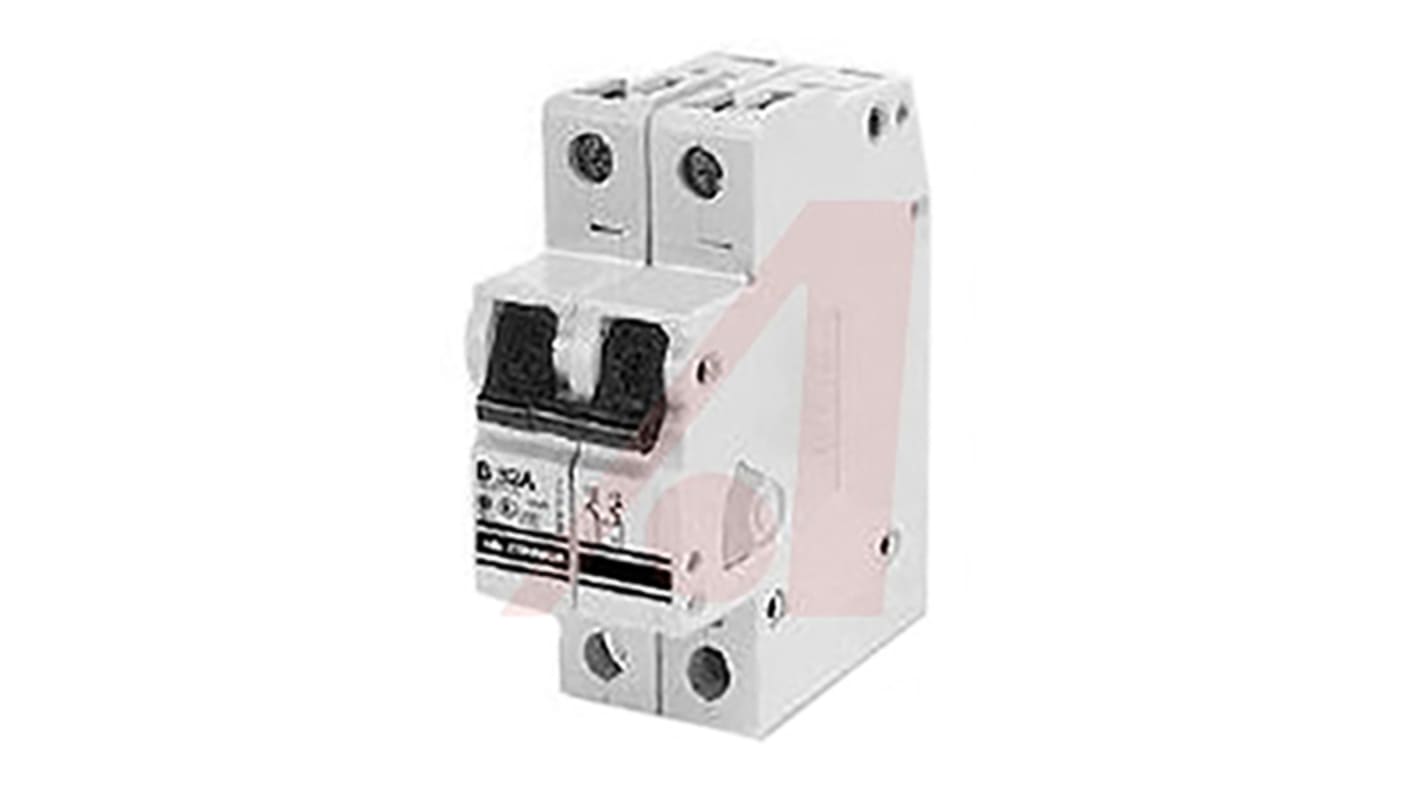

Altech Thermal Circuit Breaker - V-EA 2 Pole 480Y/277V Voltage Rating DIN Rail Mount, 0.5A Current Rating
- RS Stock No.:
- 899-1816
- Mfr. Part No.:
- 2EU05
- Brand:
- Altech
Subtotal (1 unit)*
Kr.377 13
(exc. VAT)
Kr.471 41
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Units | Per unit |
|---|---|
| 1 + | Kr. 377,13 |
*price indicative
- RS Stock No.:
- 899-1816
- Mfr. Part No.:
- 2EU05
- Brand:
- Altech
Select all | Attribute | Value |
|---|---|---|
| Brand | Altech | |
| Current Rating | 0.5A | |
| Number of Poles | 2 | |
| Voltage Rating | 480Y/277V | |
| Width | 35mm | |
| Series | V-EA | |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, High Efficiency Motors, UL508 Application, Which have Exceedingly High Inrush Current | |
| Tripping Mechanism | Thermal-Magnetic | |
| Reset Actuator Type | Handle | |
| Tripping Characteristics | Type E | |
| Rated AC Voltage | 480Y/277V | |
| Mounting Style | DIN Rail Mount | |
| Break Time | Time Delay | |
| Rated DC Voltage | 80V | |
| Overall Dimensions | 91.5 x 35 x 70mm | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
| Overall Length | 91.5mm | |
| Terminal Contact Type | Screw | |
| Overall Depth | 70mm | |
| Special Features | IP20 Terminal Protection | |
Select all | ||
|---|---|---|
Brand Altech | ||
Current Rating 0.5A | ||
Number of Poles 2 | ||
Voltage Rating 480Y/277V | ||
Width 35mm | ||
Series V-EA | ||
Application AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, High Efficiency Motors, UL508 Application, Which have Exceedingly High Inrush Current | ||
Tripping Mechanism Thermal-Magnetic | ||
Reset Actuator Type Handle | ||
Tripping Characteristics Type E | ||
Rated AC Voltage 480Y/277V | ||
Mounting Style DIN Rail Mount | ||
Break Time Time Delay | ||
Rated DC Voltage 80V | ||
Overall Dimensions 91.5 x 35 x 70mm | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
Overall Length 91.5mm | ||
Terminal Contact Type Screw | ||
Overall Depth 70mm | ||
Special Features IP20 Terminal Protection | ||
