RS PRO LEDO Series DIN Rail Timer Relay, 12 to 230 V ac/dc 12V ac, 230 V ac, 0.1 s to 100 h, Multifunction-Function,
- RS Stock No.:
- 102-6125
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
Kr. 598,86
(exc. VAT)
Kr. 748,58
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 105 unit(s) shipping from 13 April 2026
- Plus 315 unit(s) shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 598,86 |
| 5 - 9 | Kr. 574,94 |
| 10 - 24 | Kr. 568,94 |
| 25 + | Kr. 539,02 |
*price indicative
- RS Stock No.:
- 102-6125
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Multifunction | |
| Time Range | 0.1 s to 100 h | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | DPDT | |
| Supply AC Voltage | 12, 230V ac | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 8A | |
| Supply DC Voltage | 12 to 230 V ac/dc | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Width | 17.5mm | |
| Height | 92mm | |
| Length | 89mm | |
| Series | LEDO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Multifunction | ||
Time Range 0.1 s to 100 h | ||
Number of Timer Functions Multifunction | ||
Contact Configuration DPDT | ||
Supply AC Voltage 12, 230V ac | ||
Minimum Operating Temperature -20°C | ||
Contact Current 8A | ||
Supply DC Voltage 12 to 230 V ac/dc | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Width 17.5mm | ||
Height 92mm | ||
Length 89mm | ||
Series LEDO | ||
- COO (Country of Origin):
- GB

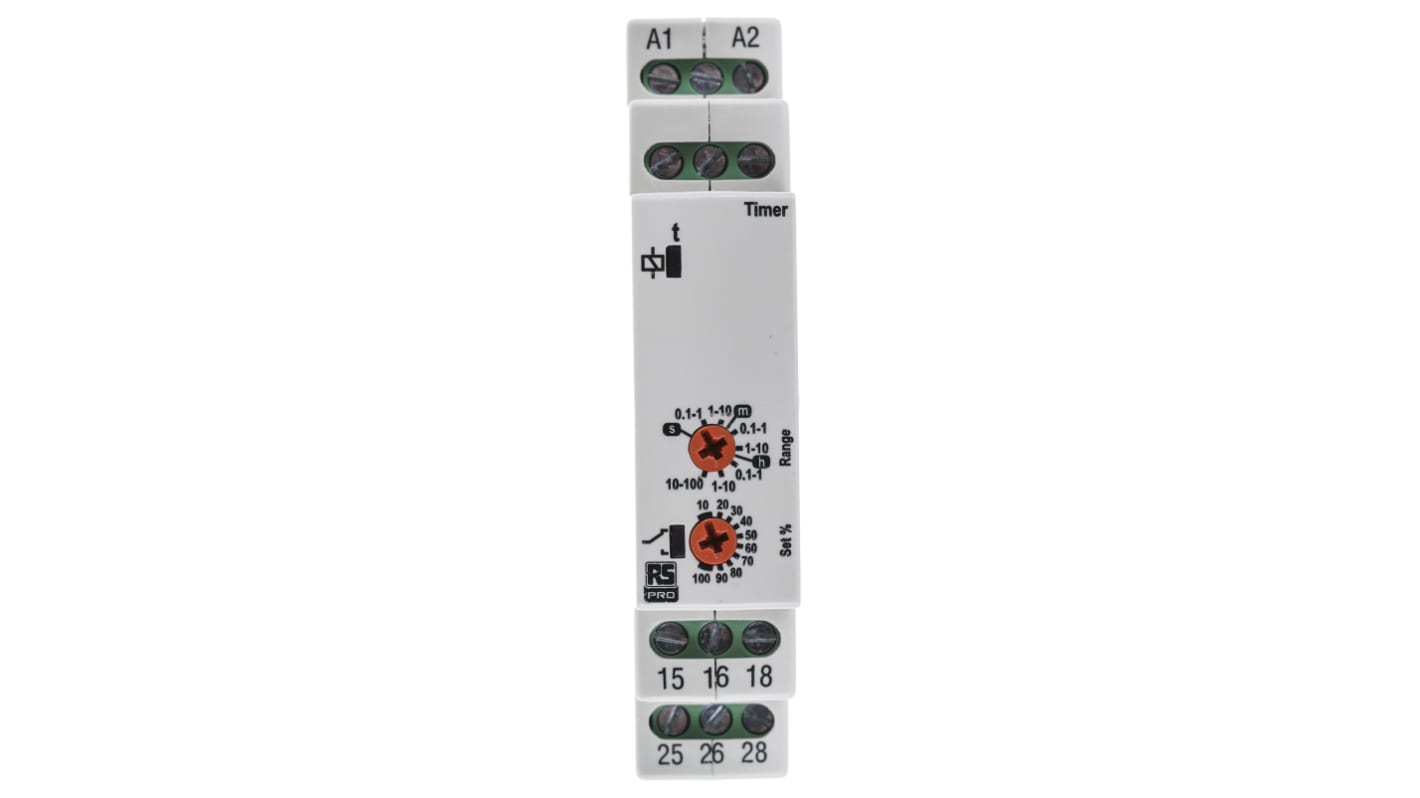

RS PRO DPDT Time Delay Relay, 12 to 230 V AC/DC, DIN Rail Mounting
Looking for a solution that controls power flow to your instruments and devices? This RS PRO time delay relay regulates electricity transmissions by starting and stopping the relays at determined times.
Green and red LED indicators show the supply, timing and relay statuses of the unit so that you can easily spot its present phase of operation and make adjustments if needed. The item's compact design and DIN rail mounting capability enable you to install it in limited spaces and keep it out of the way.
This product is UL (Underwriters' Laboratories) certified which means it passed quality and safety tests. You can use the timer relay to operate industrial applications like conveyor belts.
Features and Benefits
• DPDT (Double Pole, Double Throw) contact configuration
• Dimensions of 17.5 (width) x 66.5 (height) x 89 mm (length)
• Frequency sensing range of 48 to 63 Hz
• Maximum operating temperature of +60°C
• Minimum operating temperature of -20°C
• DIN rail mounting type
• Two poles
• CE (European Conformity) certified
• C-tick (compliant with EMC/radiocommunications equipment)
• IEC (International Electrotechnical Commission) 61812 standards met
• Supply voltage of 12 to 230 V AC/DC
• Screw terminal type
• Time delay of 100 ms
