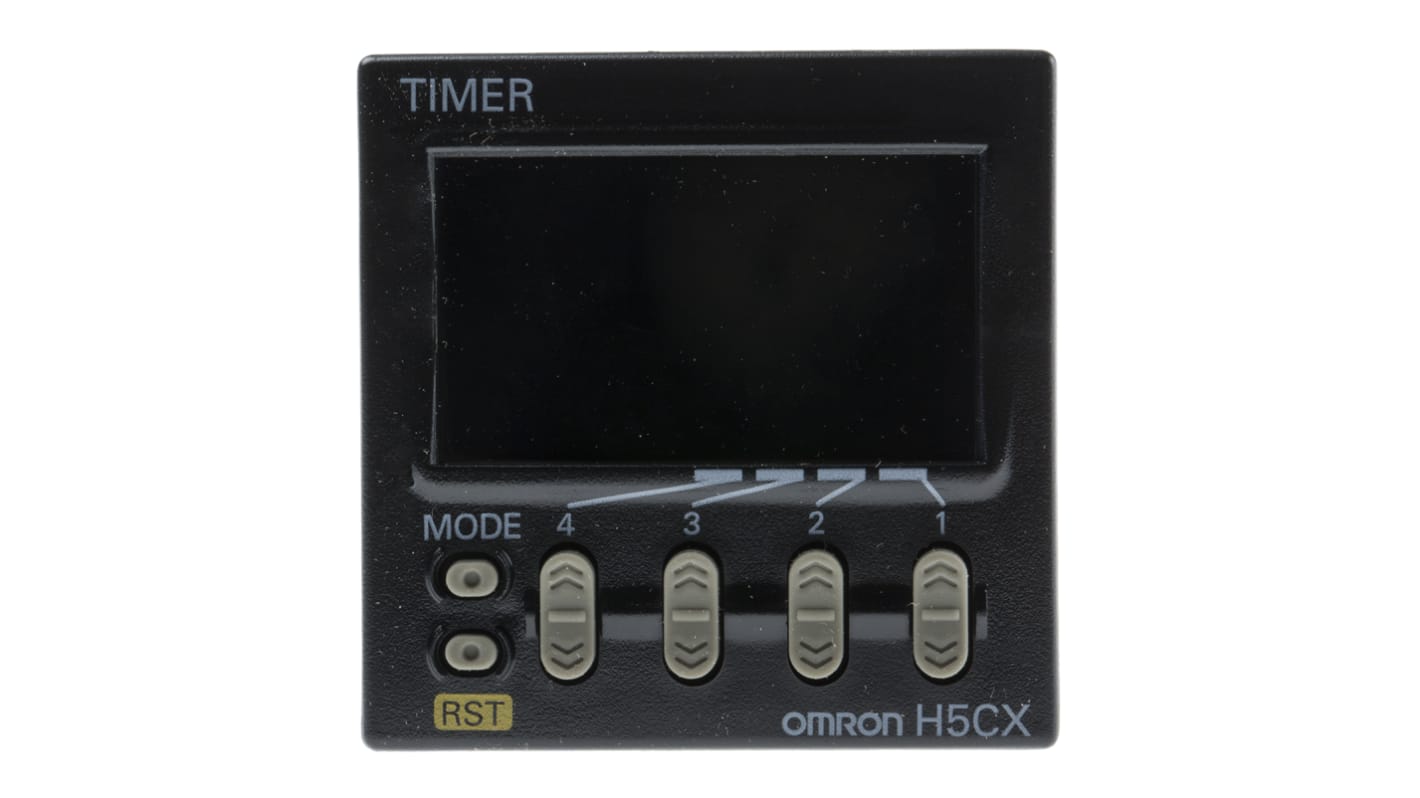

Omron H5CX Series Flush Timer Relay, 1-Contact, 24 V dc 24V ac, 0.001 s to 9999 h, Multifunction-Function, SPST Switch

RS Stock No.:: 687-6115
Mfr. Part No.:: H5CX-A11SD-N
Brand:: Omron

Omron H5CX Series Flush Timer Relay, 1-Contact, 24 V dc 24V ac, 0.001 s to 9999 h, Multifunction-Function, SPST Switch

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

Omron H5CC Series Flush Timer Relay, 1-Contact, 12 to 48 V dc 12V ac, 48 V ac, 0.001 s to 999999h h, 2-Function, SPDT

RS Stock No.: 402-685

Each

Kr. 3 533,99

(exc. VAT)

Kr. 4 417,49

(inc. VAT)

RS Stock No.:: 687-6115
Mfr. Part No.:: H5CX-A11SD-N
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Timer Relay
	Mount Type	Flush
	Time Range	0.001 s to 9999 h
	Number of Contacts	1
	Number of Timer Functions	Multifunction
	Contact Configuration	SPST
	IP Rating	IP66
	Supply DC Voltage	24 V dc
	Contact Current	5A
	Minimum Operating Temperature	-10°C
	Supply AC Voltage	24V ac
	Timing Adjustment	Thumbwheel Switch
	Terminal Type	11-Pin
	Maximum Operating Temperature	55°C
	Width	48mm
	Length	48mm
	Standards/Approvals	EN, UR, CSA
	Height	48mm
	Series	H5CX

	Select all
	Brand Omron
	Product Type Timer Relay
	Mount Type Flush
	Time Range 0.001 s to 9999 h
	Number of Contacts 1
	Number of Timer Functions Multifunction
	Contact Configuration SPST
	IP Rating IP66
	Supply DC Voltage 24 V dc
	Contact Current 5A
	Minimum Operating Temperature -10°C
	Supply AC Voltage 24V ac
	Timing Adjustment Thumbwheel Switch
	Terminal Type 11-Pin
	Maximum Operating Temperature 55°C
	Width 48mm
	Length 48mm
	Standards/Approvals EN, UR, CSA
	Height 48mm
	Series H5CX

Datasheet

Omron H5CX Series Timer Relay, 12 to 24V AC/DC Supply Voltage, 11-Pin Connector Terminal - H5CX-A11SD-N

This timer relay is a reliable digital device designed for precise control in various automation systems. The compact model measures 48mm in width and depth, making it ideal for installation in panel mounts. It operates within a supply voltage range of 12 to 24 V AC/DC and features multiple timer functions, providing flexibility for users in controlling electrical circuits.

Features & Benefits

• Cumulative and interval settings enhance operational flexibility

• Switchable display colours improve visibility from a distance

• Power ON delay function helps prevent unexpected outputs

• Multi-function capability accommodates diverse timing needs

• SPDT relay configuration supports multiple requirement

Applications

• Used with machinery to automate operational tasks

• Suitable for HVAC control to manage timing sequences

• Ideal for lighting systems requiring timed operation

• Utilised in industrial processes to monitor and adjust cycles

• Effective in automated tests ensuring precise timing operations

What is the range for setting time increments?

The timer relay supports a time range from 0.001 seconds up to 9999 hours, allowing extensive flexibility for various applications. This wide range ensures it can handle both short and long timing requirements effectively.

How does the product enhance safety during operation?

The timer's isolated power supply and input circuits prevent possible electrical interference and potential hazards, which is crucial for safe operation in industrial environments. This isolation helps mitigate risks associated with circuit malfunctions.

What input types can be connected?

It accepts both voltage inputs (PNP) and no-voltage inputs (NPN), providing flexibility for compatibility with different sensor types. This versatility makes it easy to integrate into existing systems.

Can the display be adjusted for better visibility?

Yes, the timer relay features a switchable present value display that can cycle through red, green, and orange colours, enhancing visibility based on the user's environment and preferences.

How does the timer maintain its accuracy under varying conditions?

The timer relay is designed to operate accurately with minimal time drift, featuring a power-on start accuracy of ±0.01% and reliability under pre-specified temperature ranges, ensuring consistent performance in varied conditions.
