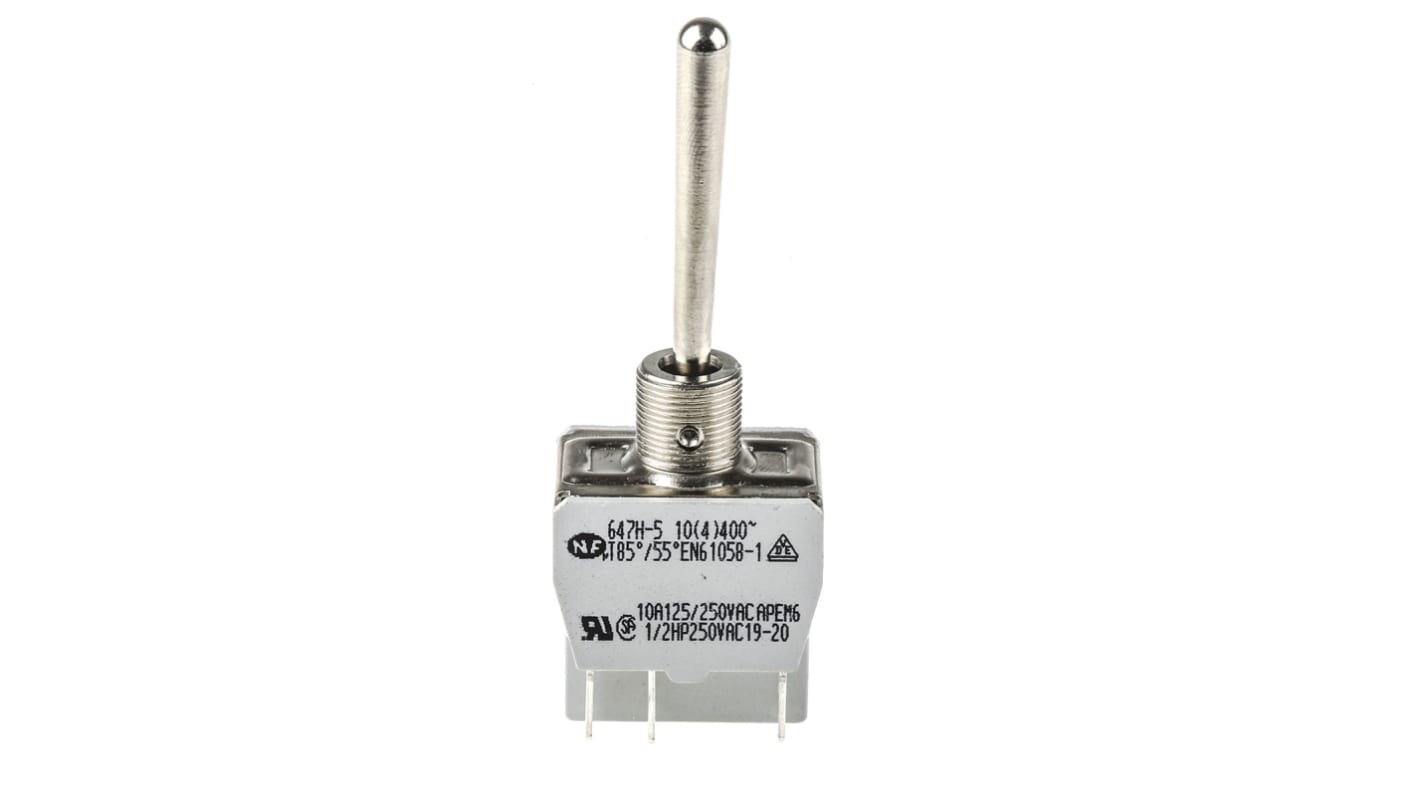

APEM Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, 24 V dc, 250 V ac
- RS Stock No.:
- 614-6348
- Distrelec Article No.:
- 304-00-740
- Mfr. Part No.:
- 647H/2-5RS
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
Kr. 241,04
(exc. VAT)
Kr. 301,30
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 54 unit(s) shipping from 11 May 2026
- Plus 100 unit(s) shipping from 06 July 2026
- Plus 300 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | Kr. 241,04 |
| 25 - 49 | Kr. 197,68 |
| 50 - 99 | Kr. 180,87 |
| 100 - 249 | Kr. 168,74 |
| 250 + | Kr. 154,33 |
*price indicative
- RS Stock No.:
- 614-6348
- Distrelec Article No.:
- 304-00-740
- Mfr. Part No.:
- 647H/2-5RS
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | DPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-Off-On | |
| Switch Contact Current | 5A | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| Illuminated | No | |
| Panel Cutout Size | 12.5 mm | |
| Contact DC Voltage | 24V dc | |
| Contact AC Voltage | 250V ac | |
| Minimum Operating Temperature | -20°C | |
| Actuator Length | 40mm | |
| Actuator Material | Nickel Plated Brass | |
| Switch Configuration | Mom-Off-Mom | |
| Maximum Operating Temperature | 55°C | |
| Series | 600h | |
| Length | 29.7mm | |
| Width | 21.5mm | |
| Height | 60.4mm | |
| Standards/Approvals | CSA, VDE, UL, RoHS, NF, EN | |
| Mechanical Life | 10000Operations | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration DPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-Off-On | ||
Switch Contact Current 5A | ||
Mount Type Panel | ||
Terminal Type Solder | ||
Illuminated No | ||
Panel Cutout Size 12.5 mm | ||
Contact DC Voltage 24V dc | ||
Contact AC Voltage 250V ac | ||
Minimum Operating Temperature -20°C | ||
Actuator Length 40mm | ||
Actuator Material Nickel Plated Brass | ||
Switch Configuration Mom-Off-Mom | ||
Maximum Operating Temperature 55°C | ||
Series 600h | ||
Length 29.7mm | ||
Width 21.5mm | ||
Height 60.4mm | ||
Standards/Approvals CSA, VDE, UL, RoHS, NF, EN | ||
Mechanical Life 10000Operations | ||
- COO (Country of Origin):
- FR
Industrial Toggle Switch, 600H series
From Apem, this industrial toggle switch features a 40mm lever actuator that can be used with joystick-type sealing caps. With a 12mm bushing, this Apem switch boasts an ergonomic design and has contacts resistance welded to the terminal for increased durability.
The front face of this 600H Series toggle switch is fully insulated and sealed, meaning it is ideal for use in industrial environments.
Features and Benefits:
• Long lever
• ø 12 mm bushing
• Robust design
