Honeywell Toggle Switch, Bushing Mount, On-Off-On, DPDT, Screw Terminal, 277 V ac

RS Stock No.:: 842-4766
Distrelec Article No.:: 303-45-273
Mfr. Part No.:: 2TL1-5
Brand:: Honeywell

Honeywell Toggle Switch, Bushing Mount, On-Off-On, DPDT, Screw Terminal, 277 V ac

Bulk discount available

Subtotal (1 unit)*

Kr. 1 032,18

(exc. VAT)

Kr. 1 290,22

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

Plus 24 unit(s) shipping from 08 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	Kr. 1 032,18
10 - 24	Kr. 908,17
25 - 49	Kr. 774,38
50 +	Kr. 724,81

*price indicative

RS Stock No.:: 842-4766
Distrelec Article No.:: 303-45-273
Mfr. Part No.:: 2TL1-5
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Contact Configuration	DPDT
	Product Type	Toggle Switch
	Switch Operation	On-Off-On
	Switch Contact Current	18A
	Mount Type	Bushing
	Terminal Type	Screw
	Panel Cutout Size	12.4 mm
	Actuator Length	17mm
	Minimum Operating Temperature	-65°C
	Contact AC Voltage	277V ac
	Switch Configuration	DPDT
	Maximum Operating Temperature	71°C
	Standards/Approvals	UL, CSA, CE
	Width	33.5mm
	Series	TL
	Height	26.7mm
	Length	22mm

	Select all
	Brand Honeywell
	Contact Configuration DPDT
	Product Type Toggle Switch
	Switch Operation On-Off-On
	Switch Contact Current 18A
	Mount Type Bushing
	Terminal Type Screw
	Panel Cutout Size 12.4 mm
	Actuator Length 17mm
	Minimum Operating Temperature -65°C
	Contact AC Voltage 277V ac
	Switch Configuration DPDT
	Maximum Operating Temperature 71°C
	Standards/Approvals UL, CSA, CE
	Width 33.5mm
	Series TL
	Height 26.7mm
	Length 22mm

COO (Country of Origin):: US

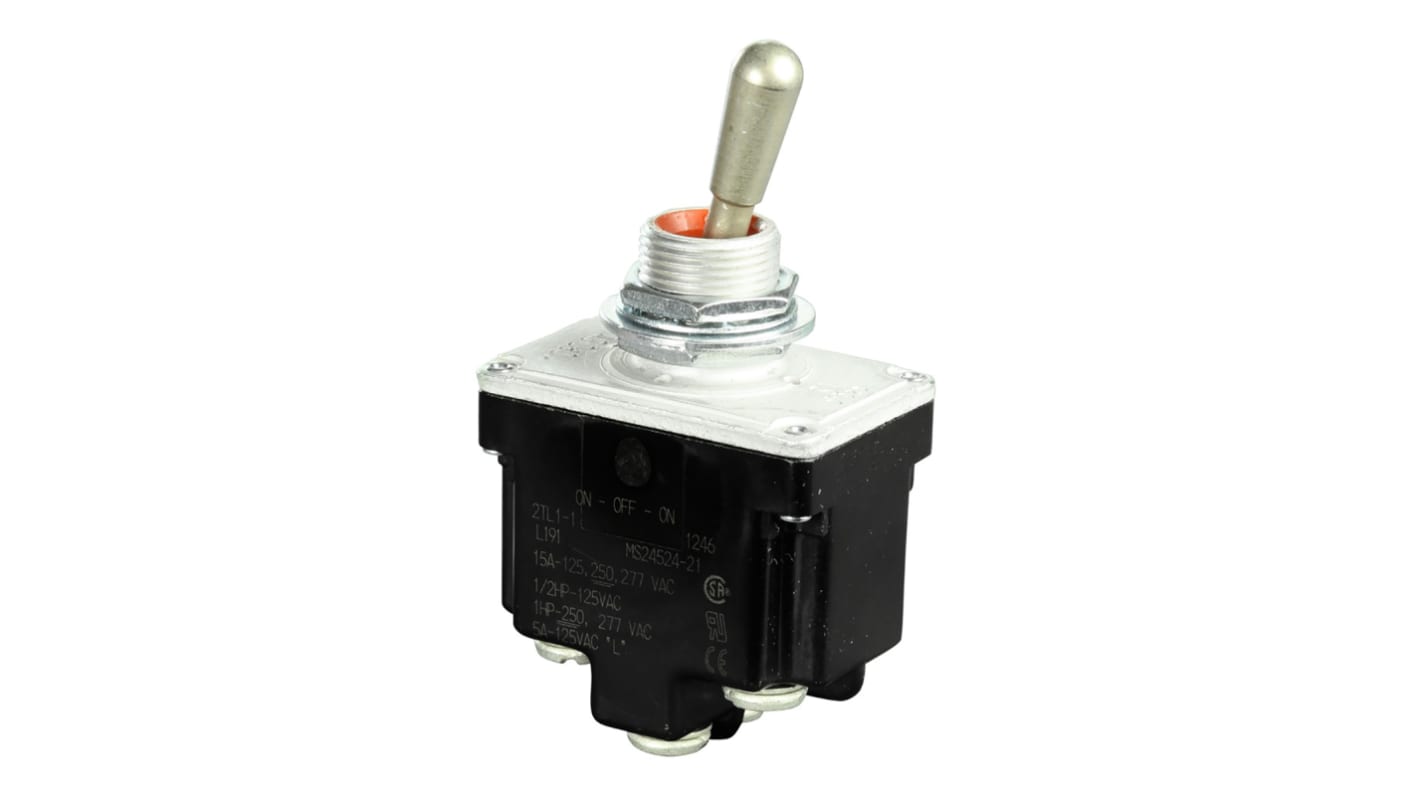

Honeywell Series TL Toggle Switch, 18A Switch Contact Current, 277V AC Contact AC Voltage - 2TL1-5

This toggle switch provides manual control of electrical circuits in industrial and commercial installations, offering changeover switching for two independent poles. It is intended for panel installation using a bushing mount and operates in an On‑Off‑On arrangement to select between two outputs or isolate a circuit. The unit is suitable where a mechanical, user-operated selector is required for machinery controls, instrumentation panels or power distribution interfaces.

Features and Benefits:

• DPDT contacts deliver dual-circuit switching with simplified wiring
• 18A rated contact current supports high-load switching
• 277V AC contact rating accommodates higher-voltage circuits
• Screw terminals permit secure, serviceable cable connections
• Operates between -65°C and 71°C for wide thermal ranges

Applications

• Suitable for control panels in factory automation systems
• Ideal for manual changeover of motor control circuits
• Used for selection between redundant power feeds in distribution boards
• Can be used for switching instrument signal routes in test rigs

What mount method is required for panel fitting?

The switch installs via a bushing mount requiring a 12.4mm panel cut-out to secure the bezel and ensure correct alignment.

How is the actuator accessed and operated?

The lever provides a 17mm extension for tactile engagement on control panels and operator stations.

How are electrical connections terminated?

External conductors are fastened to screw-type terminals that allow repeated service and firm electrical contact.

Which approvals cover suitability for industrial installations?

It holds UL, CSA and CE approvals indicating conformity with recognised electrical safety and market standards.

Standards

UL recognized, CSA certified, CE approved
