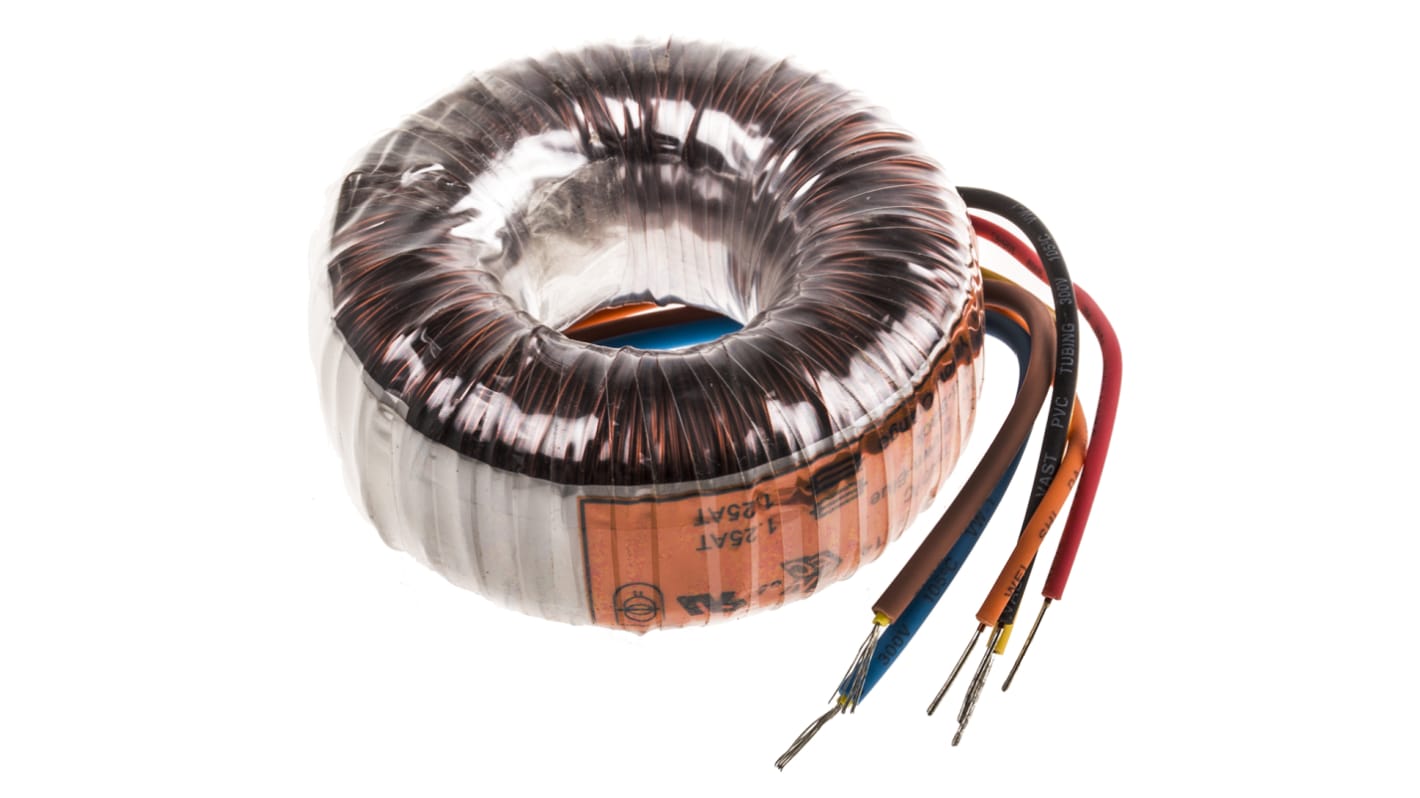

Nuvotem Talema 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 30, EN61558, ENEC KEMA-KEUR, IEC61558, UL 5085-1,
- RS Stock No.:
- 223-7822
- Mfr. Part No.:
- 0030P1-2-012
- Brand:
- Nuvotem Talema
Get a bulk buy discount
Add 10 more to save 5%
View bulk pricing optionsSubtotal (1 unit)*
Kr. 667,41
(exc. VAT)
Kr. 834,26
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 202 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 9 | Kr. 667,41 | - |
| 10 - 24 | Kr. 630,69 | 5% |
| 25 - 49 | Kr. 563,99 | 15% |
| 50 - 74 | Kr. 497,18 | 25% |
| 75 + | Kr. 430,49 | 35% |
*price indicative
- RS Stock No.:
- 223-7822
- Mfr. Part No.:
- 0030P1-2-012
- Brand:
- Nuvotem Talema
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nuvotem Talema | |
| Product Type | Toroidal Transformer | |
| Primary Voltage | 230 V ac | |
| Secondary Voltage | 2 x 12 V ac | |
| Number of Outputs | 2 | |
| Secondary Current | 1.25A | |
| Weight | 450g | |
| Power | 30 | |
| Diameter | 70mm | |
| Minimum Operating Frequency | 48Hz | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Frequency | 450Hz | |
| Maximum Operating Temperature | 180°C | |
| Height | 32mm | |
| Termination Type | Copper Conductor Termination Wire | |
| Standards/Approvals | EN61558, ENEC KEMA-KEUR, IEC61558, UL 5085-1, XPTQ8.E215495 (Canada), DEKRA Nr.2161054.01, DEKRA Nr.2161054.02, XPTQ2.E215495 (USA) | |
| Select all | ||
|---|---|---|
Brand Nuvotem Talema | ||
Product Type Toroidal Transformer | ||
Primary Voltage 230 V ac | ||
Secondary Voltage 2 x 12 V ac | ||
Number of Outputs 2 | ||
Secondary Current 1.25A | ||
Weight 450g | ||
Power 30 | ||
Diameter 70mm | ||
Minimum Operating Frequency 48Hz | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Frequency 450Hz | ||
Maximum Operating Temperature 180°C | ||
Height 32mm | ||
Termination Type Copper Conductor Termination Wire | ||
Standards/Approvals EN61558, ENEC KEMA-KEUR, IEC61558, UL 5085-1, XPTQ8.E215495 (Canada), DEKRA Nr.2161054.01, DEKRA Nr.2161054.02, XPTQ2.E215495 (USA) | ||
Open Style with Leads, 15VA to 1000VA
High-quality open style toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field and very low induced noise (hum)
Very low iron losses
Double insulated primary leads
100% electrical and flash tested
High-quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE 0551, VDE 0550 and BS415
Approvals
UL 506; EN 61558
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Standards
UL 506; EN 61558
Supplied with
Full mounting kit
