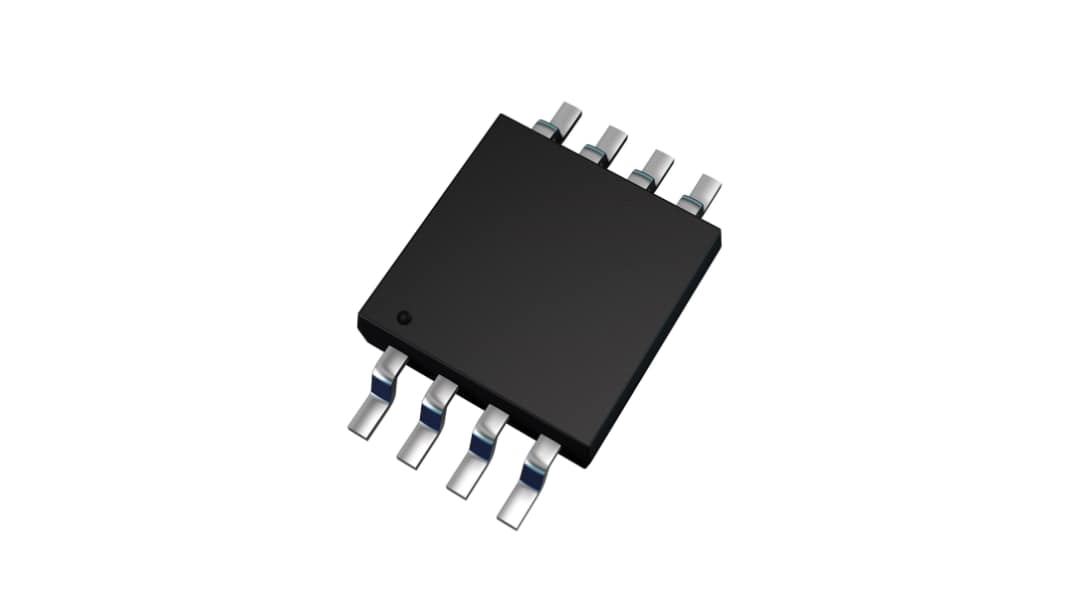

DiodesZetex PI4ULS5V202UEX, Voltage Level Shifter Level Translator Bi-Directional, 8-Pin MSOP
- RS Stock No.:
- 216-326
- Mfr. Part No.:
- PI4ULS5V202UEX
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 unit)*
Kr. 4,83
(exc. VAT)
Kr. 6,04
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 2 414 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 4,83 |
| 10 - 99 | Kr. 4,35 |
| 100 - 499 | Kr. 4,00 |
| 500 - 999 | Kr. 3,66 |
| 1000 + | Kr. 2,97 |
*price indicative
- RS Stock No.:
- 216-326
- Mfr. Part No.:
- PI4ULS5V202UEX
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Direction Type | Bi-Directional | |
| Product Type | Voltage Level Shifter | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Pin Count | 8 | |
| Logic Function | Level Translator | |
| Minimum Supply Voltage | 1.2V | |
| Maximum Supply Voltage | 5.5V | |
| Translation | Bi-Directional | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | PI4ULS5V202 | |
| Standards/Approvals | RoHS 2, RoHS 3, RoHS | |
| Automotive Standard | AEC-Q101, AEC-Q100, AEC-Q200 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Direction Type Bi-Directional | ||
Product Type Voltage Level Shifter | ||
Mount Type Surface | ||
Package Type MSOP | ||
Pin Count 8 | ||
Logic Function Level Translator | ||
Minimum Supply Voltage 1.2V | ||
Maximum Supply Voltage 5.5V | ||
Translation Bi-Directional | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series PI4ULS5V202 | ||
Standards/Approvals RoHS 2, RoHS 3, RoHS | ||
Automotive Standard AEC-Q101, AEC-Q100, AEC-Q200 | ||
The DiodesZetex 2 Bit Bi directional Level Shifter is a 2 bit configurable dual supply bidirectional auto sensing translator that does not require a directional control pin. The A and B ports are designed to two different power supply rail, VCCA and VCCB respectively.
Low bit to bit skew
Totally lead free and fully RoHS compliant
Halogen and antimony free
