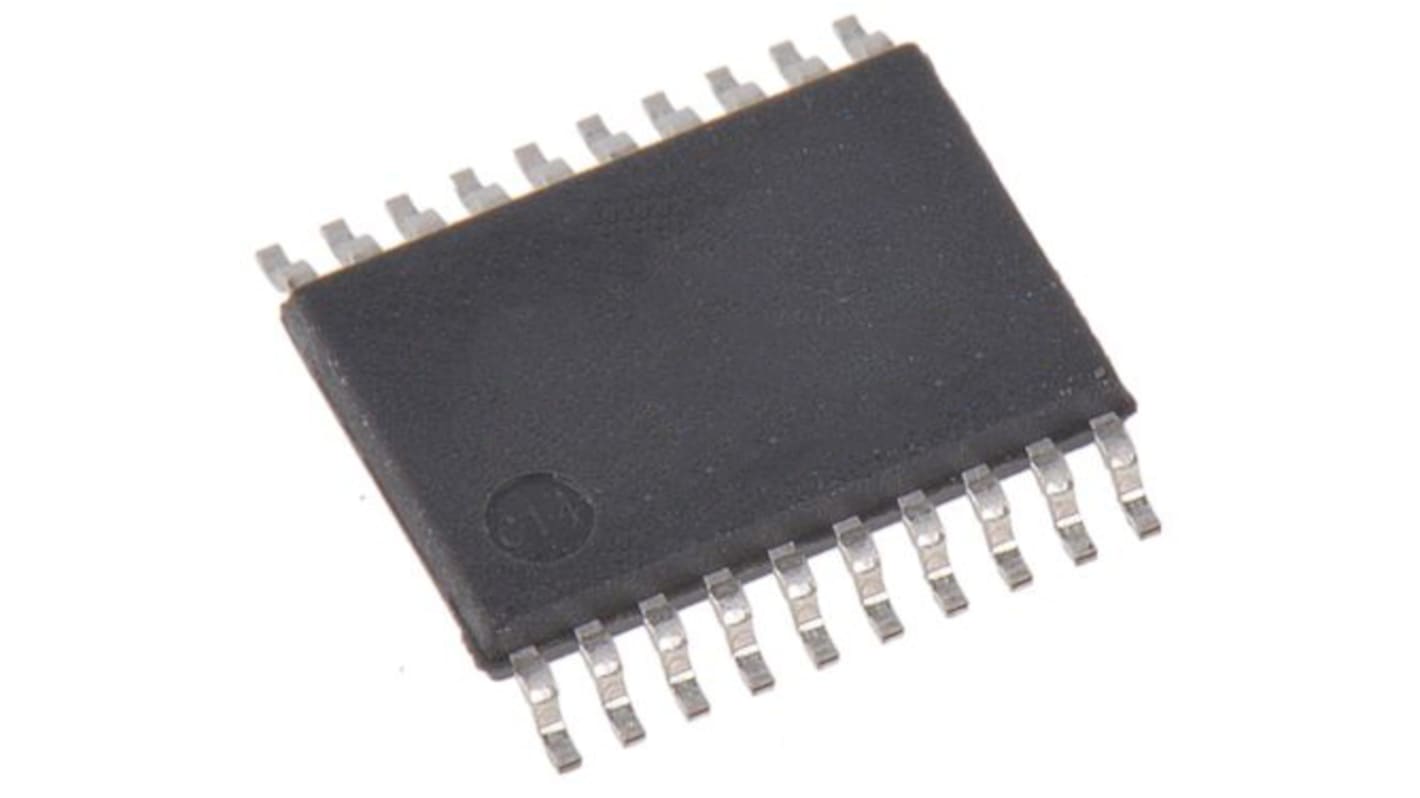

ON Semiconductor 74VHC541MTCX, Voltage Level Shifter Buffer 1, 20-Pin TSSOP
- RS Stock No.:
- 186-8384
- Mfr. Part No.:
- 74VHC541MTCX
- Brand:
- onsemi
2275 In stock for same day dispatch
Added
Price Each (In a Pack of 25)
Kr. 2,75
(exc. VAT)
Kr. 3,44
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 + | Kr. 2,75 | Kr. 68,75 |
| *price indicative | ||
- RS Stock No.:
- 186-8384
- Mfr. Part No.:
- 74VHC541MTCX
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
High Speed: tPD = 3.5 ns (typ) at VCC = 5V
Low power dissipation: ICC = 4 μA (max) at TA = 25°C
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.9V (typ)
Pin and function compatible with 74HC541
Applications
This product is general usage and suitable for many different applications.
Low power dissipation: ICC = 4 μA (max) at TA = 25°C
High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs
Low noise: VOLP = 0.9V (typ)
Pin and function compatible with 74HC541
Applications
This product is general usage and suitable for many different applications.
Specifications
Attribute | Value |
|---|---|
| Logic Family | VHC |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Package Type | TSSOP |
| Pin Count | 20 |
| Output Type | 3 State |
| Logic Function | Buffer |
| Dimensions | 6.6 x 4.5 x 1.05mm |
| Maximum Low Level Output Current | 8mA |
| Maximum High Level Output Current | -8mA |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 2 to 5.5 V |
| Maximum Propagation Delay Time @ Maximum CL | 12 ns @ 50 pF |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
