Select all	Attribute	Value
	Brand	Maxim Integrated
	Mounting Type	Surface Mount
	Package Type	SCT0
	Pin Count	6
	Output Type	3 State, Open Drain
	Logic Function	Voltage Level Translator
	Dimensions	2.15 x 1.35 x 1mm
	Maximum Operating Supply Voltage	5.5 V
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	2.5 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Maxim Integrated
	Mounting Type Surface Mount
	Package Type SCT0
	Pin Count 6
	Output Type 3 State, Open Drain
	Logic Function Voltage Level Translator
	Dimensions 2.15 x 1.35 x 1mm
	Maximum Operating Supply Voltage 5.5 V
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 2.5 V
	Minimum Operating Temperature -40 °C

Allow Bidirectional Level Translation

Miniature μDFN (1mm x 1.5mm) and SC70 Packages

Operational Down to 1.6V

Low Quiescent Current (< 100μA)

Ultra-Low (< 1μA) Shutdown Supply Current (MAX3371)

Three-State Outputs in Shutdown (MAX3371)

2Mbps (10pF Load) Push-Pull Driving

1Mbps (50pF Load) Push-Pull Driving

500kbps (30pF Load) Open-Drain Driving

Applications

Cell Phone Cradles

Cell Phone Hands-Free Kits

Low-Voltage ASIC Level Translation

Portable Communication Devices

Portable POS Systems

RS-232-Compatible Translation

Smart Card Readers

SPI™, MICROWIRE™, and I²C Level Translation

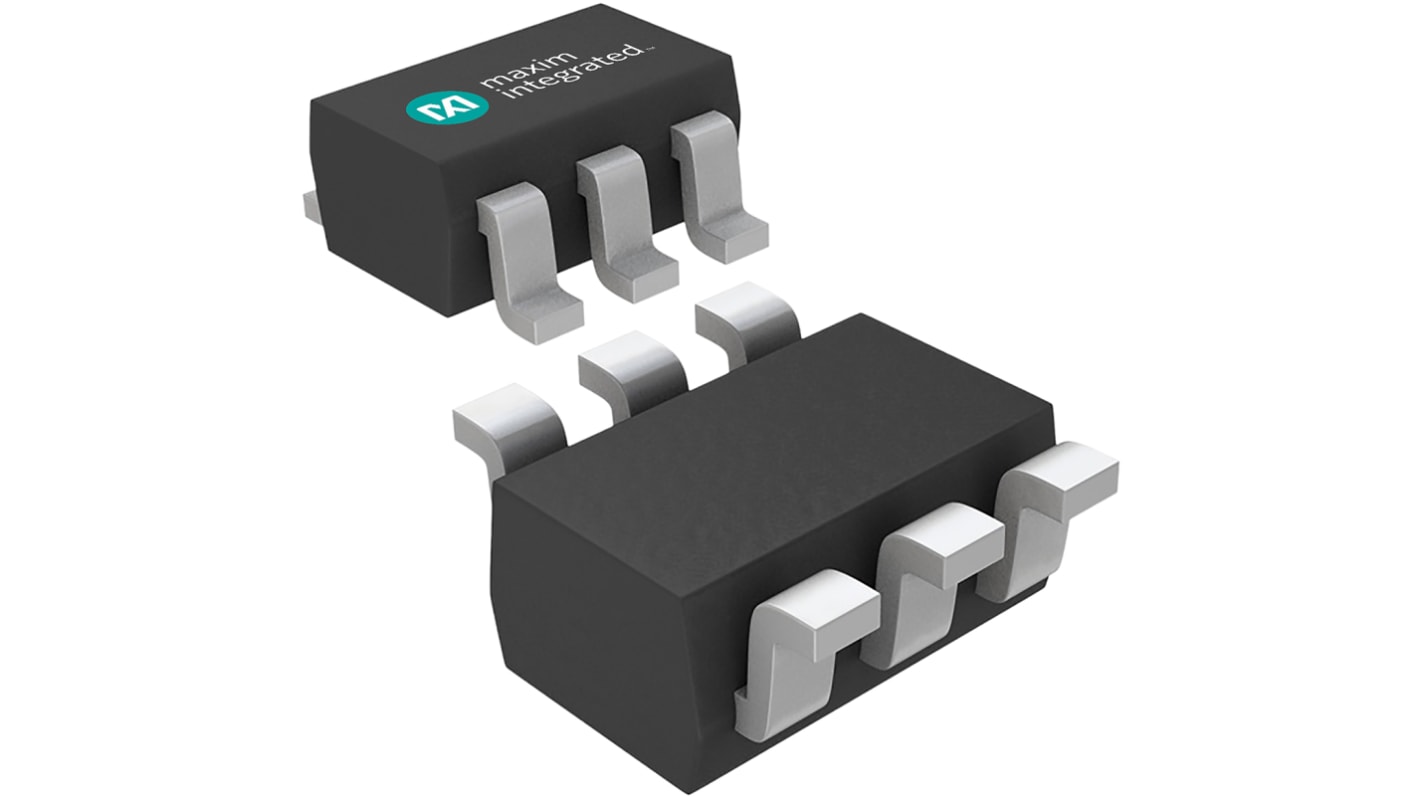

Maxim Integrated MAX3371EXT+T, Logic Level Translator Voltage Level Translator, 6-Pin SCT0
