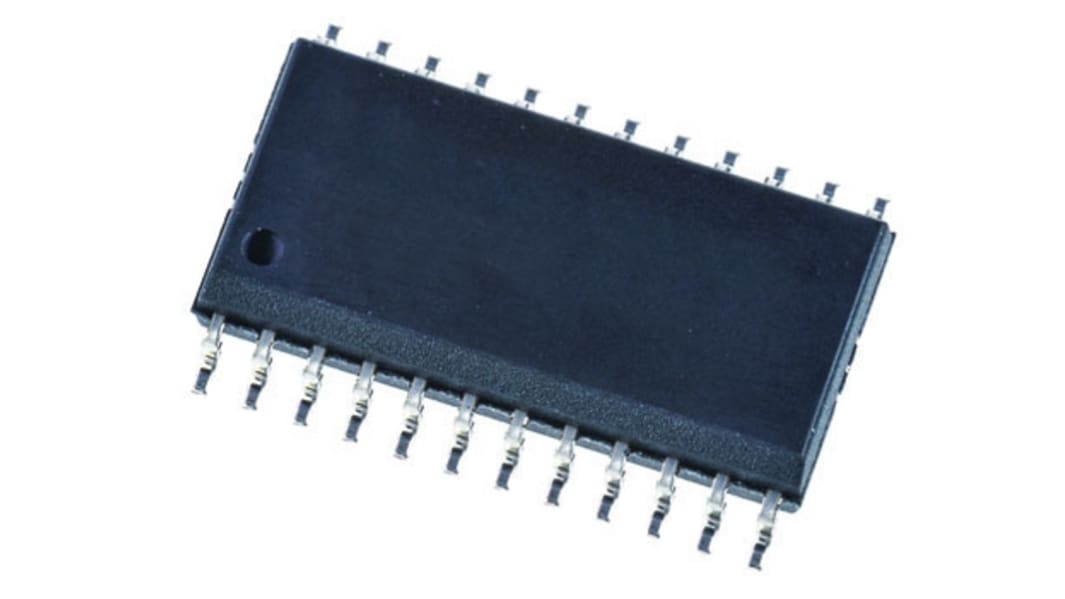

Texas Instruments SN74LVC8T245DWR, Voltage Level Translator Bus Transceiver 1 Voltage Level, 24-Pin SOIC

View all Translator ICs
Bulk discount available

Subtotal (1 pack of 5 units)*

Kr. 89,92

(exc. VAT)

Kr. 112,40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 55 unit(s) shipping from 02 March 2026
  • Plus 1 170 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20Kr. 17,984Kr. 89,92
25 - 45Kr. 17,068Kr. 85,34
50 - 120Kr. 15,398Kr. 76,99
125 - 245Kr. 13,842Kr. 69,21
250 +Kr. 13,178Kr. 65,89

*price indicative

Packaging Options:
RS Stock No.:
825-3479
Mfr. Part No.:
SN74LVC8T245DWR
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Family

LVC

Direction Type

Bi-Directional

Product Type

Voltage Level Translator

Maximum Propagation Delay Time @ CL

4.4ns

Mount Type

Surface

Number of Elements per Chip

1

Package Type

SOIC

Output Type

3 State

Pin Count

24

Logic Function

Bus Transceiver

Maximum Low Level Output Current

32mA

Minimum Supply Voltage

1.65V

Maximum High Level Output Current

-32mA

Maximum Supply Voltage

5.5V

Translation

Voltage Level

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Length

15.6mm

Height

2.35mm

Series

SN74LVC8T

Width

7.6 mm

Automotive Standard

No

74LVC Family Bus Transceivers, Texas Instruments


Texas Instruments range of Bus Transceivers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.

Operating Voltage: 1.65 to 3.6V

5V tolerant inputs

Compatibility: Input LVTTL/TTL, Output LVCMOS

Latch-up performance exceeds 250 mA per JESD 17

ESD protection exceeds JESD 22

74LVC Family
