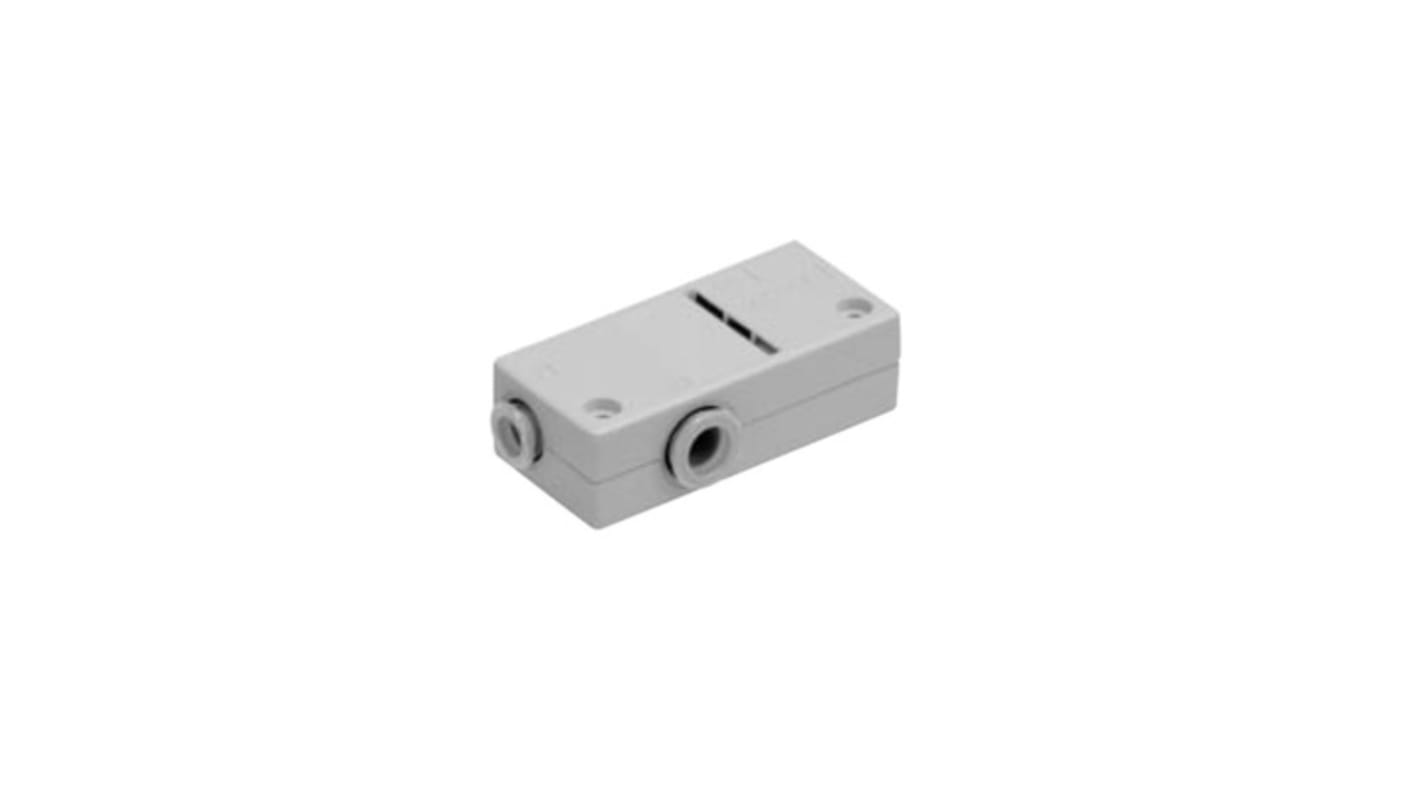

SMC Vacuum Ejector, 0.5 mm nozzle, -87 kPa 6 L/min, ZH series
- RS Stock No.:
- 231-5358
- Mfr. Part No.:
- ZH05BSA-06-06
- Brand:
- SMC
Subtotal (1 unit)*
Kr. 340,89
(exc. VAT)
Kr. 426,11
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 13 unit(s) shipping from 23 March 2026
- Plus 4 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 340,89 |
*price indicative
- RS Stock No.:
- 231-5358
- Mfr. Part No.:
- ZH05BSA-06-06
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Vacuum Ejector | |
| Maximum Suction Flow | 6L/min | |
| Maximum Vacuum Pressure | -87kPa | |
| Nozzle Diameter | 0.5mm | |
| Series | ZH | |
| Silencer | Yes | |
| Supply Port Type | One Touch | |
| Vacuum Port Type | One-Touch | |
| Vacuum Port Size | 6 mm | |
| Supply Port Size | 6 mm | |
| Maximum Supply Pressure | 7bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Vacuum Ejector | ||
Maximum Suction Flow 6L/min | ||
Maximum Vacuum Pressure -87kPa | ||
Nozzle Diameter 0.5mm | ||
Series ZH | ||
Silencer Yes | ||
Supply Port Type One Touch | ||
Vacuum Port Type One-Touch | ||
Vacuum Port Size 6 mm | ||
Supply Port Size 6 mm | ||
Maximum Supply Pressure 7bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- JP
The SMC Lightweight, point-of-use ZH series vacuum generators combine design simplicity with high performance. The slim ZH generators are extra compact. Also, these generators are often smaller and lighter than the bulky vacuum lines used in central vacuum systems. A built-in exhaust silencer keeps generator noise to a minimum. Available in four nozzle diameters and a number of port sizes.
Nozzle diameter 0.5
Compact and lightweight
Box style and body ported style
One-touch and screw-in connections can be combined
Body can be mounted and secured
