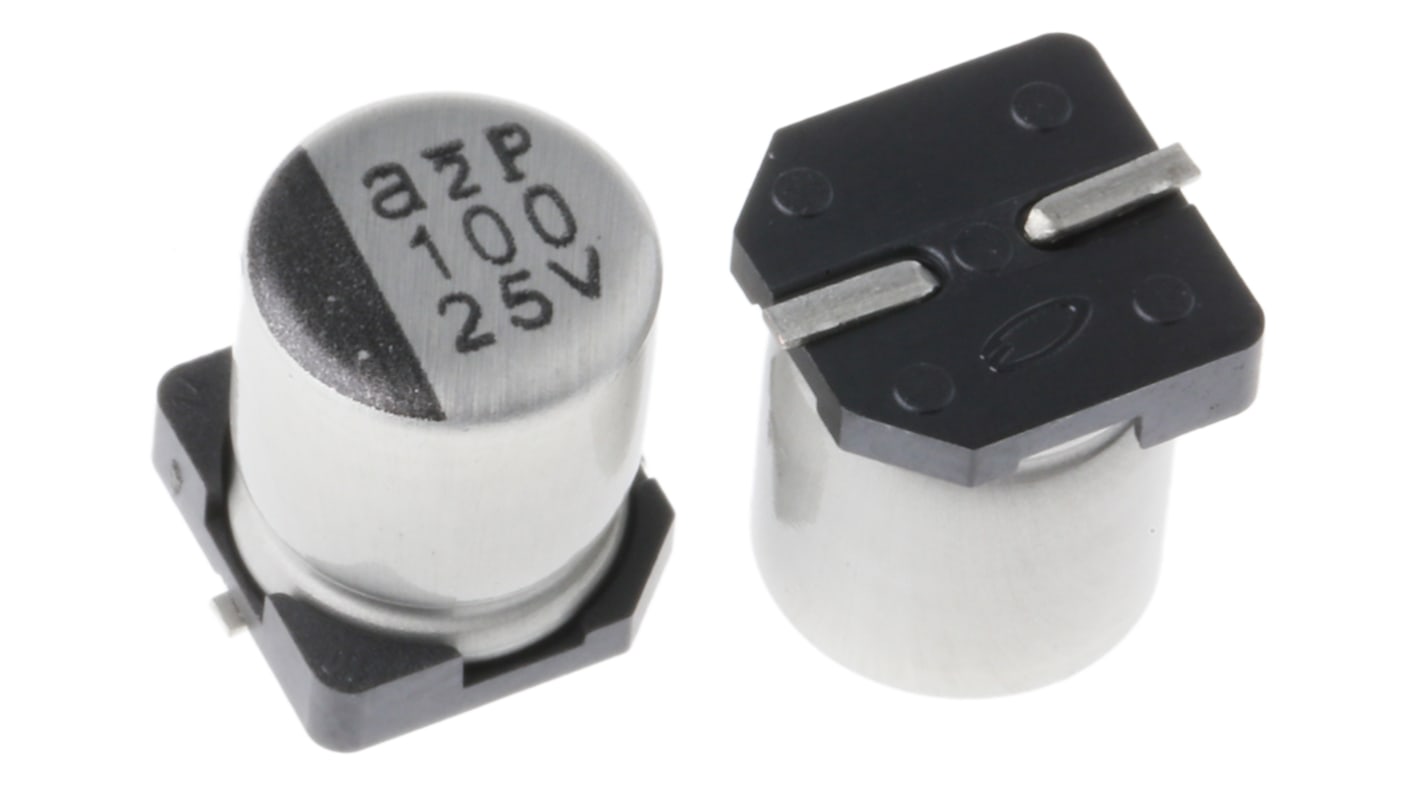

    Nichicon 100μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - UWT1E101MCL1GS

    Nichicon
    RS Stock No.:
    171-0702
    Mfr. Part No.:
    UWT1E101MCL1GS
    Brand:
    Nichicon
    View all Aluminium Capacitors
    Available to back order for despatch when stock is available
    Add to Basket
    Units

    This product is currently unavailable to backorder.

    Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

    Added

    Price Each (On a Reel of 900)

    kr 1,564

    (exc. VAT)

    kr 1,955

    (inc. VAT)

    UnitsPer unitPer Reel*
    900 +kr 1,564kr 1 407,60
    *price indicative
    RS Stock No.:
    171-0702
    Mfr. Part No.:
    UWT1E101MCL1GS
    Brand:
    Nichicon

    Legislation and Compliance

    COO (Country of Origin):
    JP

    Product Details

    WT Series


    WT Aluminium Electrolytic Capacitor series

    Chip type operating over wide temperature range of to –55 to +105°C.
    Rated Voltage Range of 4 to 50V
    Rated Capacitance Range of 0.1 to 1500μF
    Designed for surface mounting on high density PC board
    Suitable for automatic mounting machine using carrier tape


    Specifications

    AttributeValue
    Capacitance100µF
    Voltage25V dc
    Mounting TypeSurface Mount
    TechnologyAluminium Electrolytic
    Dimensions6.3 (Dia.) x 7.7mm
    Height7.7mm
    Minimum Operating Temperature-55°C
    Diameter6.3mm
    Maximum Operating Temperature+105°C
    Lifetime1000h
    Tolerance±20%
    PolarisedPolar
    SeriesWT
    Ripple Current91mA
    Leakage Current3 μA
