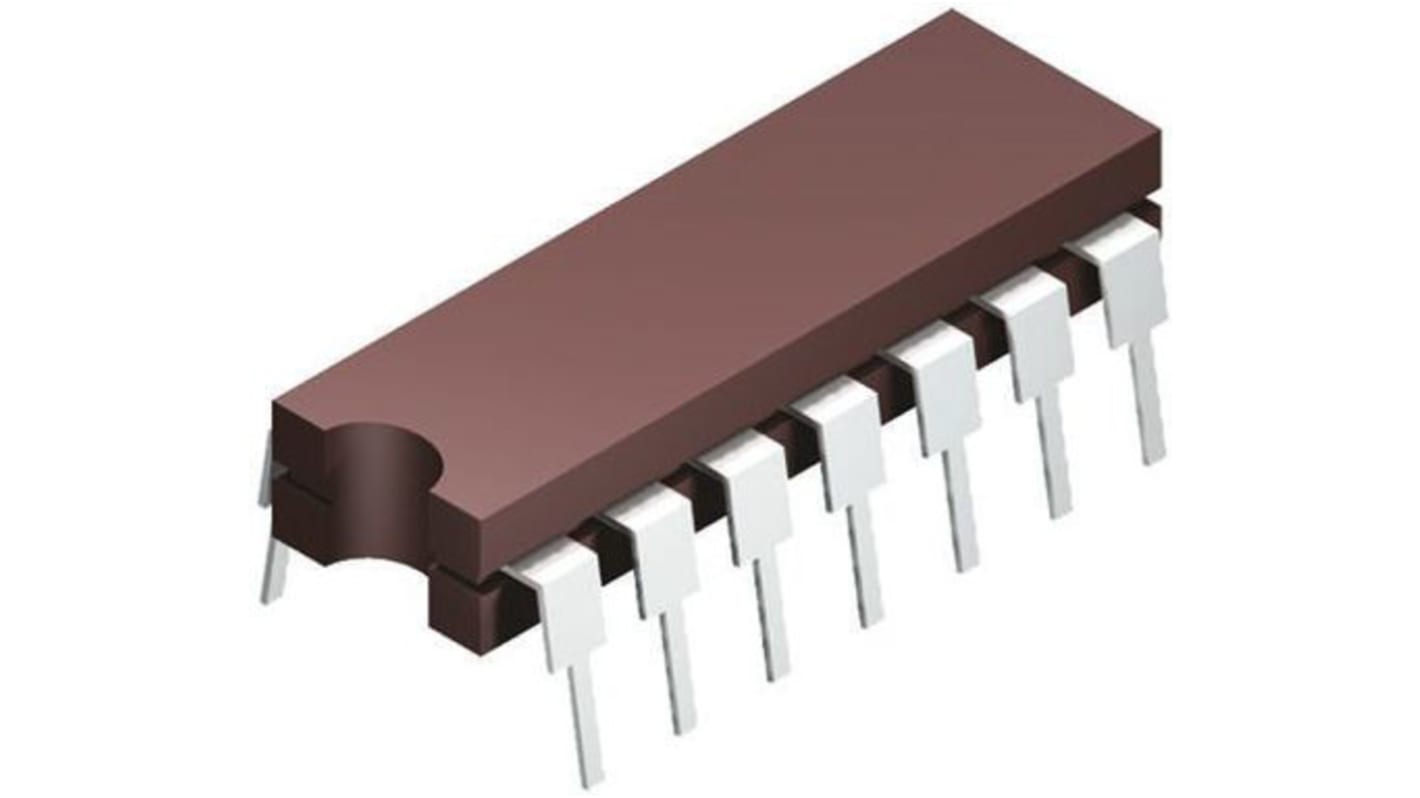

AD532JDZ Analog Devices, 4-quadrant Voltage Divider and Multiplier, 1 MHz, 14-Pin SBCDIP
- RS Stock No.:
- 913-0790
- Mfr. Part No.:
- AD532JDZ
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 913-0790
- Mfr. Part No.:
- AD532JDZ
- Brand:
- Analog Devices
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Number of Quadrants | 4 | |
| Output Type | Single Ended | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Frequency | 1 MHz | |
| Maximum Dual Supply Voltage | ±18V | |
| Minimum Dual Supply Voltage | ±10V | |
| Mounting Type | Through Hole | |
| Package Type | SBCDIP | |
| Pin Count | 14 | |
| Maximum Operating Temperature | +70 °C | |
| Width | 7.87mm | |
| Height | 5.08mm | |
| Length | 19.94mm | |
| Dimensions | 19.94 x 7.87 x 5.08mm | |
| Minimum Operating Temperature | 0 °C | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Number of Quadrants 4 | ||
Output Type Single Ended | ||
Number of Elements per Chip 1 | ||
Maximum Operating Frequency 1 MHz | ||
Maximum Dual Supply Voltage ±18V | ||
Minimum Dual Supply Voltage ±10V | ||
Mounting Type Through Hole | ||
Package Type SBCDIP | ||
Pin Count 14 | ||
Maximum Operating Temperature +70 °C | ||
Width 7.87mm | ||
Height 5.08mm | ||
Length 19.94mm | ||
Dimensions 19.94 x 7.87 x 5.08mm | ||
Minimum Operating Temperature 0 °C | ||
