OEP Panel Mount Audio Transformer
- RS Stock No.:
- 123-7237
- Mfr. Part No.:
- V78A01F
- Brand:
- OEP
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 2 509,48
(exc. VAT)
Kr. 3 136,85
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 27 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 2 509,48 |
| 10 + | Kr. 2 459,26 |
*price indicative
- RS Stock No.:
- 123-7237
- Mfr. Part No.:
- V78A01F
- Brand:
- OEP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OEP | |
| Product Type | Audio Transformer | |
| Primary DC Resistance | 100.4Ω | |
| Secondary DC Resistance | 432mΩ | |
| Mount Type | Panel Mount | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 130°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 100mm | |
| Standards/Approvals | UL94-HB | |
| Series | V78A01F | |
| Weight | 1.8kg | |
| Length | 84mm | |
| Depth | 68.6mm | |
| Construction | Open Frame | |
| Isolation Voltage | 1kVrms | |
| Minimum Operating Frequency | 20Hz | |
| Maximum Operating Frequency | 40kHz | |
| Select all | ||
|---|---|---|
Brand OEP | ||
Product Type Audio Transformer | ||
Primary DC Resistance 100.4Ω | ||
Secondary DC Resistance 432mΩ | ||
Mount Type Panel Mount | ||
Termination Type Solder | ||
Minimum Operating Temperature 130°C | ||
Maximum Operating Temperature 60°C | ||
Width 100mm | ||
Standards/Approvals UL94-HB | ||
Series V78A01F | ||
Weight 1.8kg | ||
Length 84mm | ||
Depth 68.6mm | ||
Construction Open Frame | ||
Isolation Voltage 1kVrms | ||
Minimum Operating Frequency 20Hz | ||
Maximum Operating Frequency 40kHz | ||
- COO (Country of Origin):
- GB

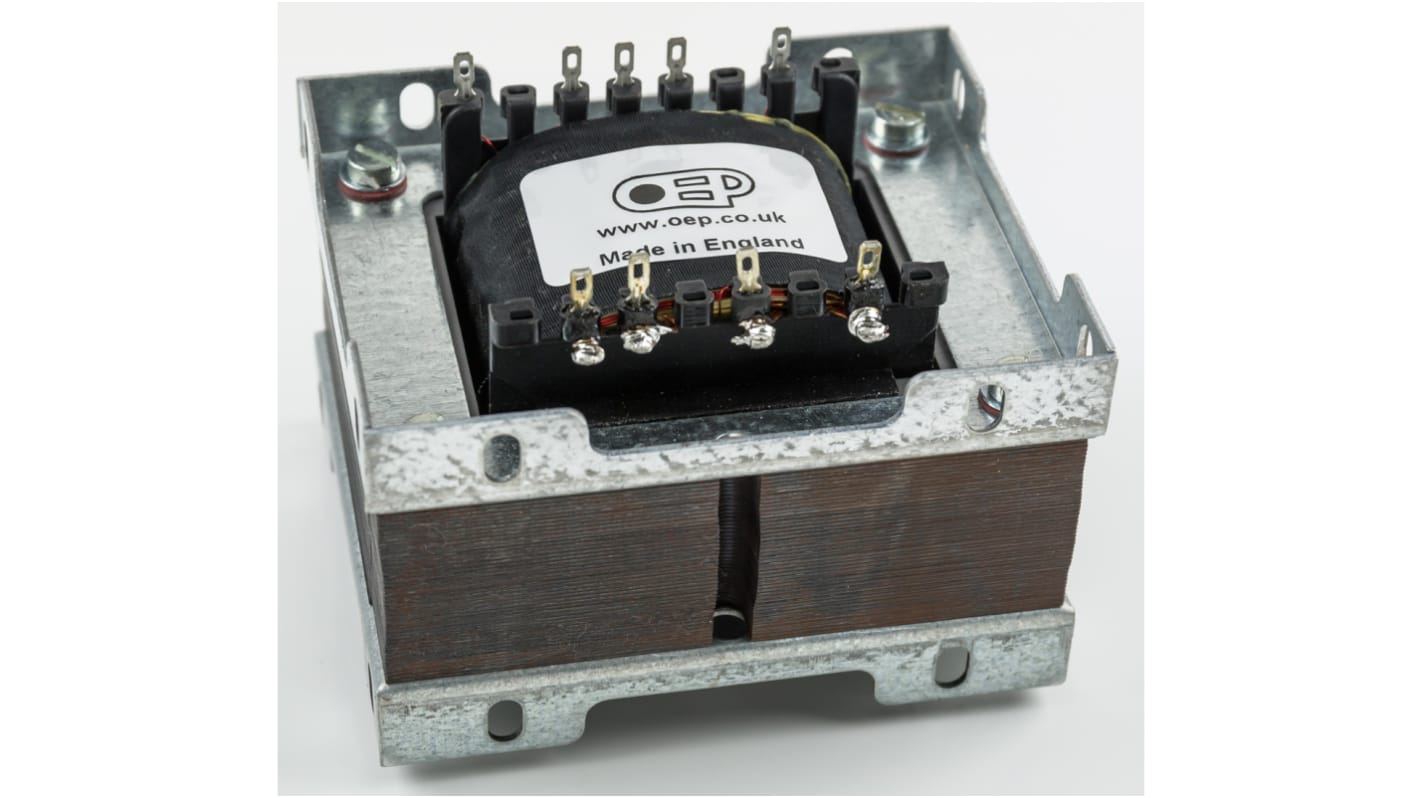

OEP V78A01F Audio Output Transformers
V78A01F 25W valve output transformers are constructed with a grain orientated steel core. The core construction reduces distortion and reduces the stray magnetic field. Featuring 24.5% UL taps on the primary output these push-pull transformers have outputs for 4 Ω, 8 Ω and 16 Ω. V78A01F push pull transformers are suitable for use with amplifiers with EL34 valves.
UL94-HB (minimum)
Temperature class B (+130°C) minimum
19 H total primary inductance at 1 kHz
85.7 mH total secondary inductance at 1 kHz
Isolation of primary to secondary is 1 kVrms for 2 seconds
