Units	Per unit
1 - 9	Kr. 1 261,32
10 +	Kr. 1 135,55

Select all	Attribute	Value
	Brand	OEP
	Primary Impedance	6.6kΩ
	Secondary Impedance	3.75 Ω, 7.5 Ω, 15 Ω
	Primary DC Resistance	294.7Ω
	Power Rating	10W
	Secondary DC Resistance	682mΩ
	Dimensions	76.8 x 64 x 64mm
	Mounting Type	Panel Mount
	Termination Type	Solder
	Weight	860g
	Depth	64mm
	Length	76.8mm
	Width	64mm
	Core Type	Laminated
	Isolation Voltage	2000V
	Construction	Open Frame
	Maximum Operating Frequency	25kHz
	Maximum Temperature	+60°C
	Minimum Operating Frequency	40Hz
	Minimum Temperature	-20°C

	Select all
	Brand OEP
	Primary Impedance 6.6kΩ
	Secondary Impedance 3.75 Ω, 7.5 Ω, 15 Ω
	Primary DC Resistance 294.7Ω
	Power Rating 10W
	Secondary DC Resistance 682mΩ
	Dimensions 76.8 x 64 x 64mm
	Mounting Type Panel Mount
	Termination Type Solder
	Weight 860g
	Depth 64mm
	Length 76.8mm
	Width 64mm
	Core Type Laminated
	Isolation Voltage 2000V
	Construction Open Frame
	Maximum Operating Frequency 25kHz
	Maximum Temperature +60°C
	Minimum Operating Frequency 40Hz
	Minimum Temperature -20°C

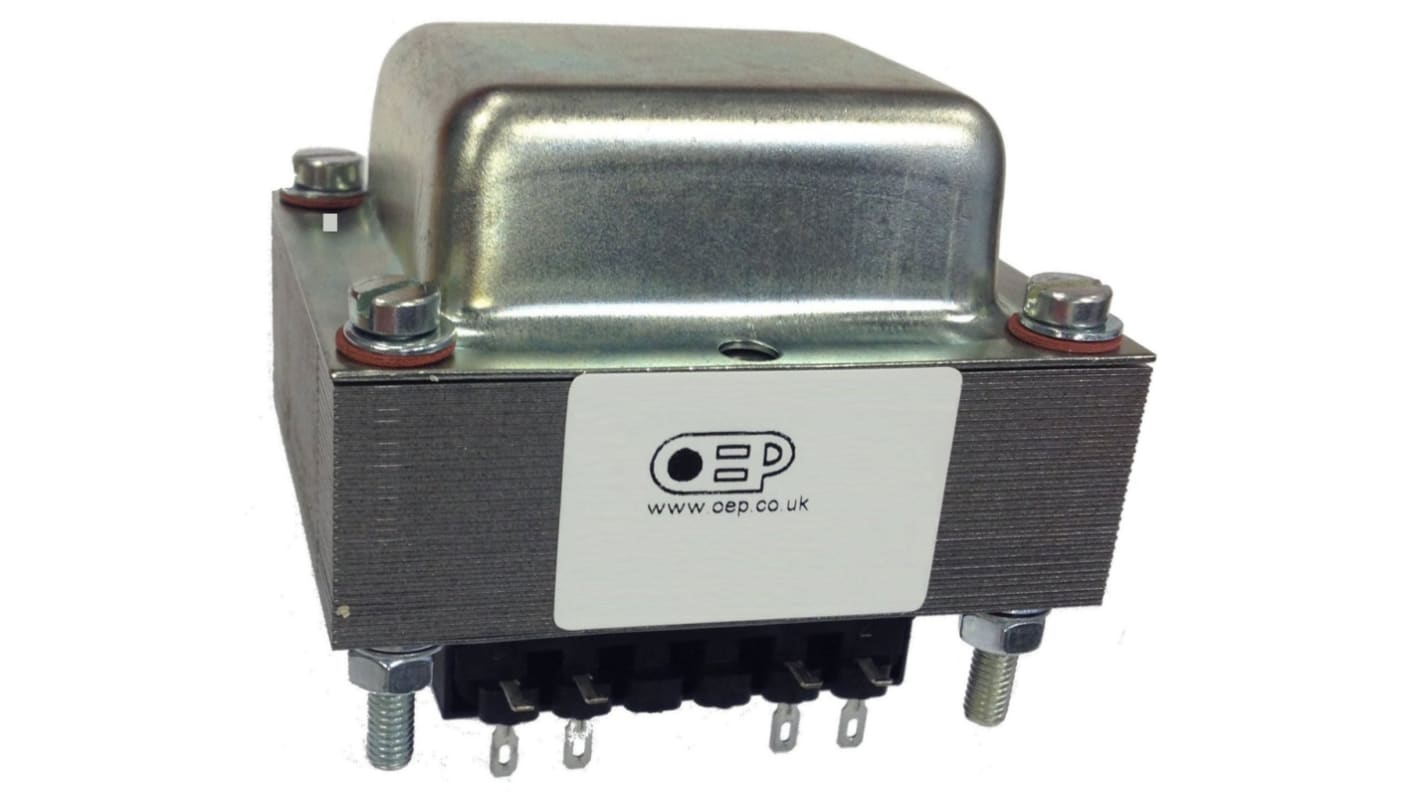

Panel Mount Audio Transformer 3.75 Ω, 7.5 Ω, 15 Ω 10W

FREE delivery for orders over kr 500,00

OEP D29A09F 10W Push-Pull Audio Transformers
