Standard linear magnetic base

  • RS Stock No. 414-4766
  • Mfr. Part No. MB-1
  • Brand Noga
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

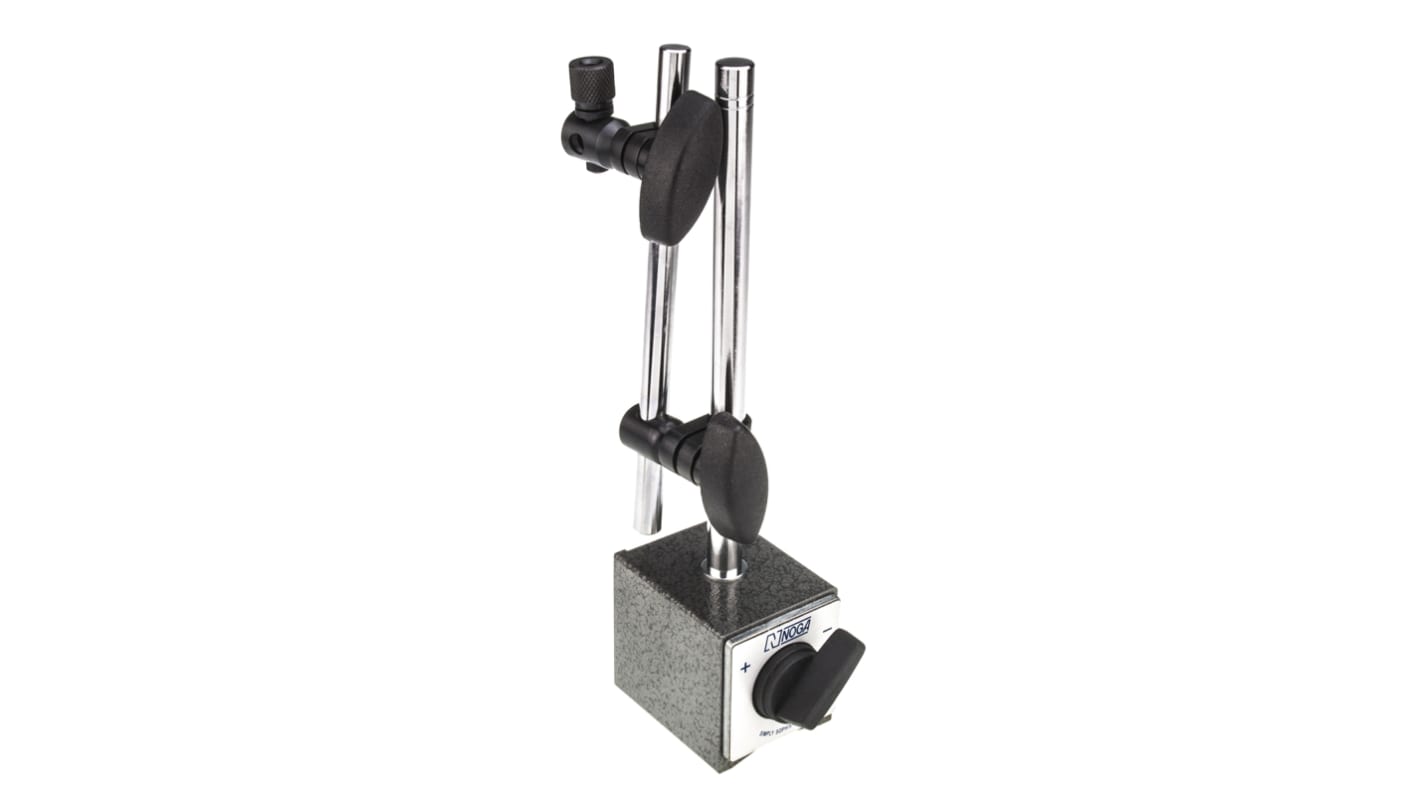

NOGA Magnetic Base With Solid Cross Arm

The NOGA standard magnetic base with solid cross arm has an overall height of 230mm. It has an economic, functional base for general workshop or maintenance applications.

Features and Benefits

An upright arm is a 12mm diameter with M8 x 1.25 thread
Lever indicators held by a spigot
Magnetic base with fine adjustment arm
Plunger indicators held by lug back or up to 8mm diameter stem
Switchable magnetic has 80 kg pull
Switchable magnetic has 800N force

Specifications
Attribute Value
Arm Type Solid Cross
84 In stock for delivery within 1 working days
Price Each
Was kr 571,58
kr 514,42
(exc. VAT)
kr 643,02
(inc. VAT)
Units
Per unit
1 +
kr 514,42
