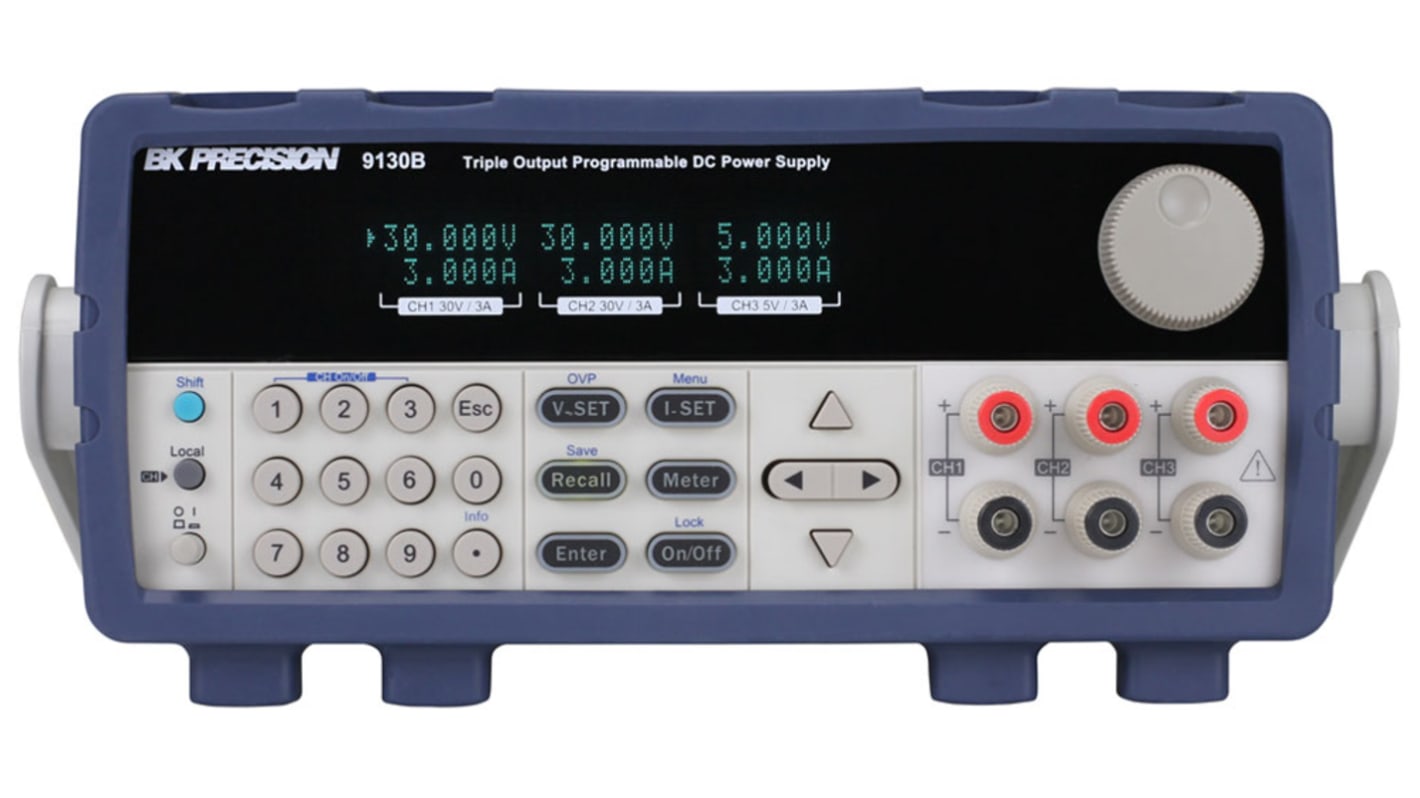

BK Precision Bench Power Supply, 0 → 5V, 0 → 3A, 3-Output, 195W - UKAS Calibrated

The BK9130C Series triple output linear programmable DC power supplies feature isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Additionally, these supplies can operate in tracking mode with user-configurable ratios between channels. The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values.

For remote control, the standard USB (USBTMC-compliant), RS232 interfaces supporting SCPI commands can be used to remotely control the power supplies via a PC.

Three independent and electrically isolated outputs
Displays voltage and current settings for all three channels simultaneously
Low noise, linear regulation
High programming and readback resolution of 1 mV 1 mA
Series and parallel modes combine channels to increase the output voltage or current
Tracking mode allows users to set up channels to maintain a programmed ratio
Fully programmable channels with Output OnOff control
Store and recall up to 36 instrument settings
Remote sense
Timer-controlled output function adjustable from 0.1 – 99999.9 s
Standard USB (USBTMC-compliant), RS232 supporting SCPI commands for remote control
NI certified LabVIEW driver and softpanel for remote control, test sequence generation, and datalogging available
Overvoltage (OVP) and overtemperature (OTP) protection including keylock function
Compact 19” half-rack form factor allows for side-by-side rack mounting of two units
