Thorlux Lighting Rectangular SON-E Bulkhead Light, 70 W, 230 V ac, IP65
- RS Stock No.:
- 571-748
- Mfr. Part No.:
- PX6385ZFS19145
- Brand:
- Thorlux Lighting
View all Bulkhead Lights
- RS Stock No.:
- 571-748
- Mfr. Part No.:
- PX6385ZFS19145
- Brand:
- Thorlux Lighting
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

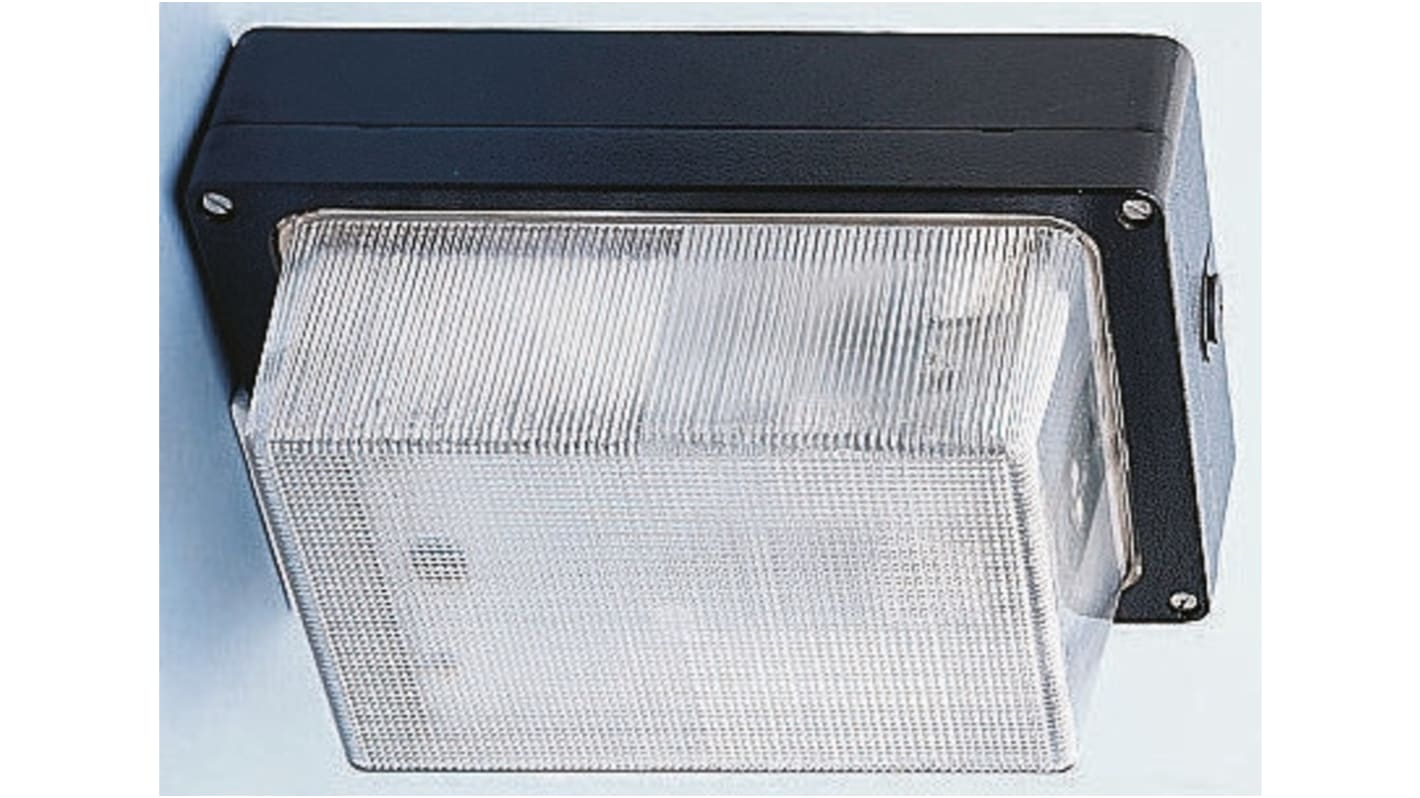

Thorlux Prismalux Corrosion Resistant Heavy Duty Bulkhead SON Luminaire
This Thorlux Lighting General purpose aluminium bulkhead is a high quality, British made product, with die cast aluminium body and frame. It can be wall mounted or ceiling mounted and is ideal in applications such as walkways, loading bays, entrances, security areas, industrial areas and power stations.
Indoor or outdoor use
Die cast aluminium alloy body
Textured grey powder coat finish
Impact resistant polycarbonate cover
Frame is hinged on a stainless steel pin and fastened to the body by 4 captive stainless steel screws
Top and bottom entry for 20mm conduit (1 entry is plugged)
Die cast aluminium alloy body
Textured grey powder coat finish
Impact resistant polycarbonate cover
Frame is hinged on a stainless steel pin and fastened to the body by 4 captive stainless steel screws
Top and bottom entry for 20mm conduit (1 entry is plugged)
Note
To convert existing Prismalux SON luminaires to LED, please see RS 784-4885 (Thorlux Prismalux Retrofit LED gear Tray Kit)
Exterior Amenity Bulkheads
Specifications
| Attribute | Value |
| Type | Bulkhead |
| Shape | Rectangular |
| Wattage | 70 W |
| Voltage Rating | 230 V ac |
| Lamp Type | SON-E |
| Length | 318 mm |
| Width | 210 mm |
| Depth | 175 mm |
| IP Rating | IP65 |
| Maximum Operating Temperature | +40°C |
| Operating Temperature Range | 0 → +40°C |
| Minimum Operating Temperature | 0°C |
| Anti-corrosive | Yes |
| Case Material | Die Cast Aluminium |
