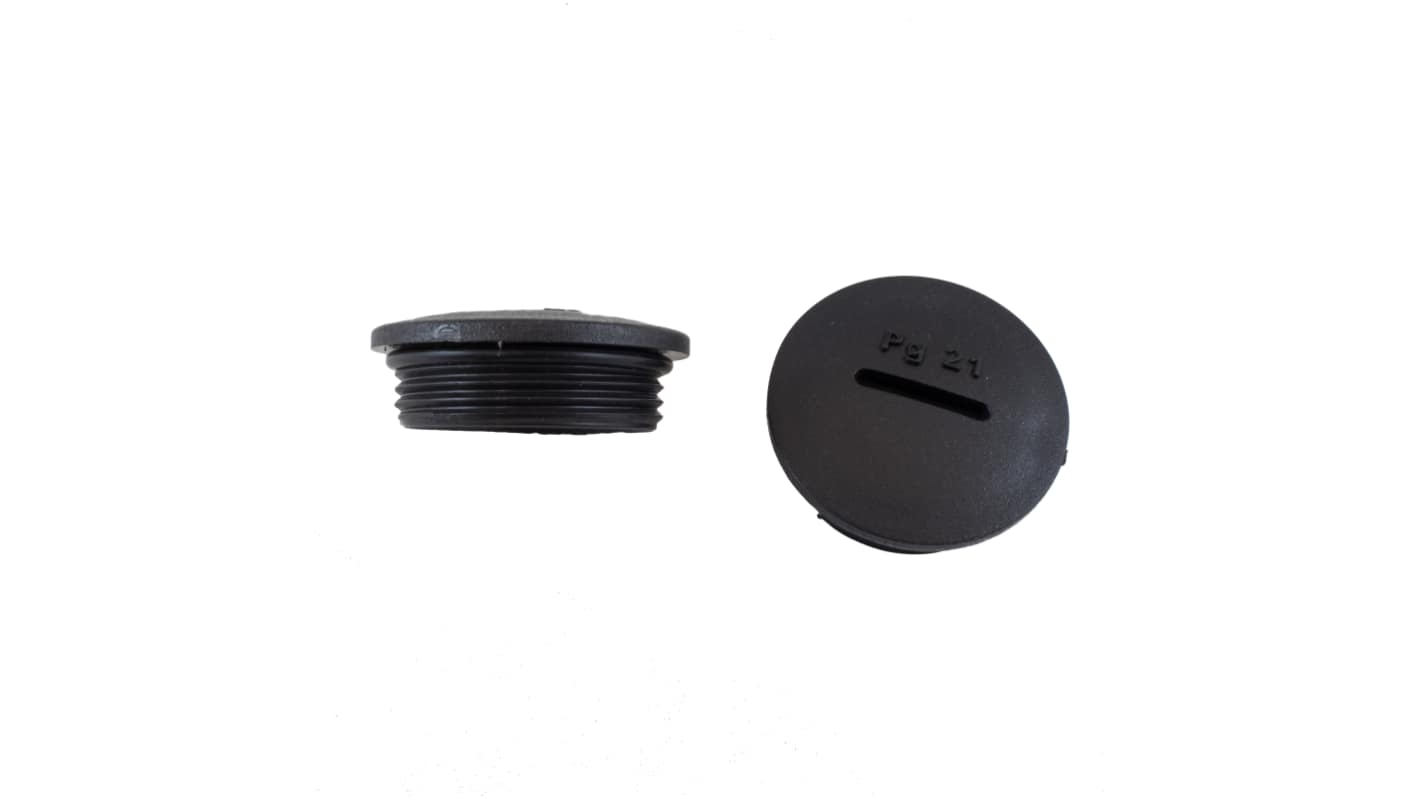

    Alpha Wire Blanking Blanking Plug, PG21, Plastic, 33mm Diameter, Threaded

    RS Stock No.:
    175-3747
    Mfr. Part No.:
    HPP21 BK080
    Brand:
    Alpha Wire
    Alpha Wire
    View all Cable Gland Plugs
    Available to back order for despatch 06.06.2023
    Add to Basket
    Units

    Added

    Price Each (In a Bag of 10)

    kr 3,678

    (exc. VAT)

    kr 4,598

    (inc. VAT)

    UnitsPer unitPer Bag*
    10 - 90kr 3,678kr 36,78
    100 - 240kr 3,568kr 35,68
    250 - 490kr 3,447kr 34,47
    500 +kr 3,347kr 33,47
    *price indicative
    RS Stock No.:
    175-3747
    Mfr. Part No.:
    HPP21 BK080
    Brand:
    Alpha Wire
    COO (Country of Origin):
    TR

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    TR

    Product Details

    Alpha Wire High-Quality Cable Glands


    Alpha Wire offer a range of cable glands, also known as cable fittings, ideal for all of your strain relief needs. Cable glands fortify systems and protect your infrastructure against wear and tear. Providing strain relief for standard and flex focused applications. The cable glands are available in NPT, metric and PG threading options with a temperature rating up to 150° C.
    The range of plastic cable glands from Alpha Wire include, threaded glands and flexible glands, both supplied with a gasket and locknut. Alpha Wire also provide hole plugs for sealing housing when no cable gland is used. The metal cable glands are made from brass with a rubber seal and NBR O-ring.

    Features and Benefits


    IP68 up to 5 bar rating for 30 min
    Large clamping range
    Robust rubber seals
    Up to +150°C temperature rating
    Flammability: V2 (According to UL94)

    Product Application Information


    Cable glands are watertight, dust resistant, dirt resistant and sand resistant (According to IP68). Cable glands can be used in telecommunications, control, instrumentation, data cables, and electrical power.

    What is IP68?


    The IP rating is a standard created by the IEC (International Electro-technical Commission). It determines whether a product is resistant to dirt, dust or fresh water. The first digit (6) indicates that the cable glands are resistant to harmful dust, and the second digit (8) indicates that the cable gland can be submerged beyond 1 metre under fresh water.

    What is UL94?


    UL94 is a flammability safety standard for plastic parts such as cable glands, designed to determine whether a flame will extinguish itself or spread once the material has been ignited. The V2 indicates that a flame will stop burning within 30 seconds on a vertical item such as a cable.

    Hole Plug, HPP21 BK080


    Temperature Range: -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent)
    Polyamide 6 body
    Colour: Black
    Size: PG 21
    Thread Length: 8 mm
    Thread Diameter: 28.3 mm


    Specifications

    AttributeValue
    Thread SizePG21
    MaterialPlastic
    Plug TypeBlanking
    Diameter33mm
    Threaded/UnthreadedThreaded
    ColourBlack
    IP RatingIP66, IP68
    Standards MetUL
    SeriesFIT
    Fire BehaviourSelf-extinguishing
    Minimum Operating Temperature-20°C
    Maximum Operating Temperature+150°C
