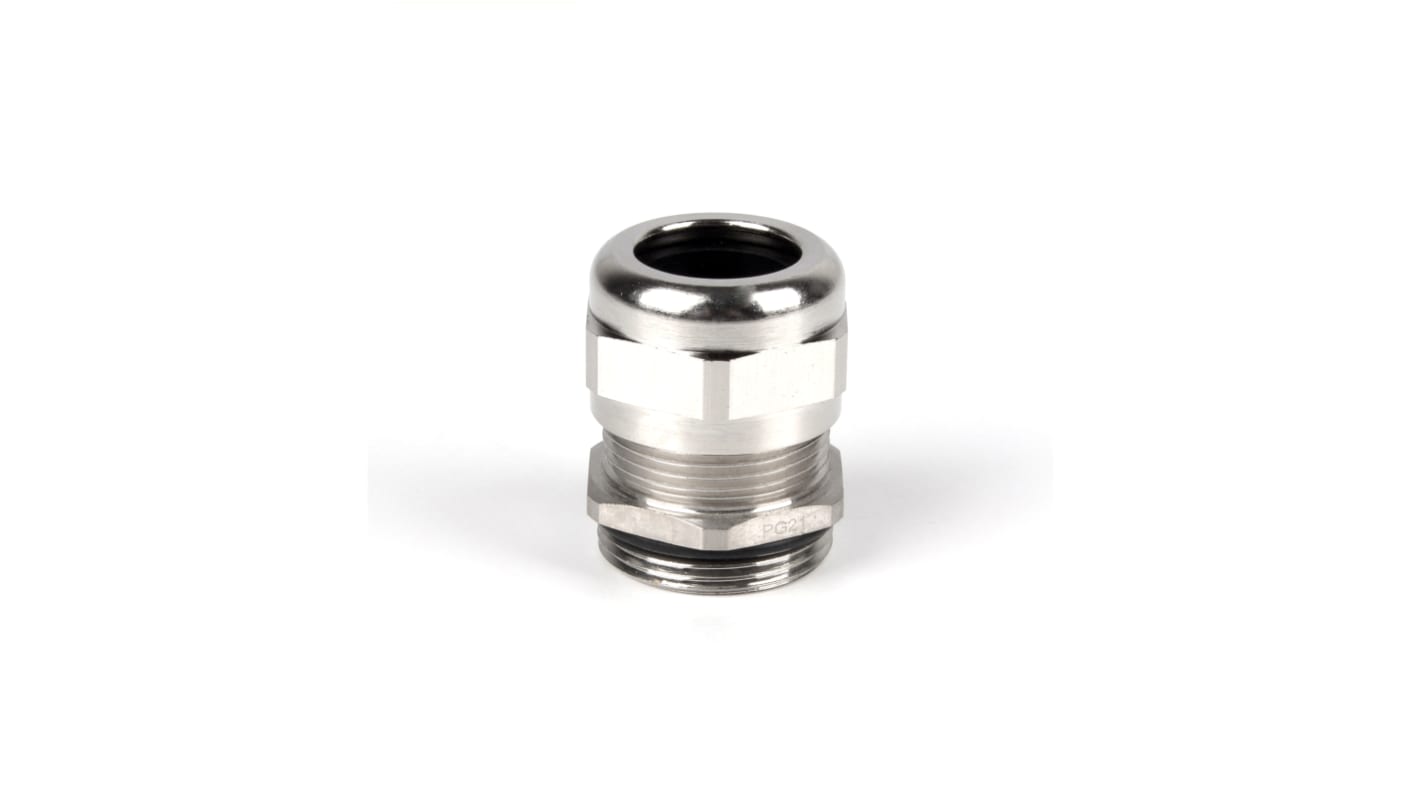

RS PRO Metallic Nickel Plated Brass Cable Gland, M32 Thread, 13mm min., 20mm max., IP68

RS Stock No.:: 210-0610
Distrelec Article No.:: 304-18-571
Brand:: RS PRO

RS PRO Metallic Nickel Plated Brass Cable Gland, M32 Thread, 13mm min., 20mm max., IP68

Subtotal (1 unit)*

Kr.131 45

(exc. VAT)

Kr.164 31

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

185 unit(s) ready to ship
Plus 57 unit(s) ready to ship from another location
Plus 600 unit(s) shipping from 10. oktober 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 131,45

*price indicative

RS Stock No.:: 210-0610
Distrelec Article No.:: 304-18-571
Brand:: RS PRO

RS PRO IP68 Metric Type EMC Cable Glands

From the trusted RS Pro brand, a range of IP68 EMC nickel-plated brass cable glands designed specifically to be used with copper-screened cables. The hexagon-shaped glands offer excellent cable retention and optimal strain relief ensuring a secure termination is maintained. The RS Pro metric type cable glands are constructed from nickel-plated brass with a flexible ECM contact which is easy to assemble, achieves a low resistance screen contact, strain relief and high protection class. With a choice of M16 up to M40 threads and various cable diameters, the RS PRO range of hexagon glands offers electrical engineers a reliable solution for numerous applications.

Features and Benefits

IP68 ingress protection, providing protection from water, pressure and dust particles

UL 94 V2 standards

Made from nickel-plated brass

Operating temperature range – 40°C to + 100°C

For use with Non-armoured cable

Flexible EMC contact which is easy to assemble

M16 to M40 metric threads available (please see datasheet for more details)

Various cable clamping sizes to suit your needs (please see datasheet for more details)

Applications

Cable glands are used throughout many industries to terminate and seal cable entries into electrical equipment and enclosures. They are vital accessories in ensuring cables are fitted and retained correctly providing a secure connection. Some of the most common areas to find cable glands are:
Robotics
Moving machine parts
Electrical Installations
Lighting
Wind and Solar
New Energy Vehicles

Environment

These RS PRO hexagon compression glands have an IP68 ingress protection rating. They are designed for use in areas that require dust and waterproof protection for extended periods of time.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Thread Size	M32
	Maximum Cable Diameter	20mm
	Minimum Cable Diameter	13mm
	Material	Nickel Plated Brass
	Colour	Metallic
	IP Rating	IP68
	Locknut Included	No
	Maximum Operating Temperature	+100°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand RS PRO
	Thread Size M32
	Maximum Cable Diameter 20mm
	Minimum Cable Diameter 13mm
	Material Nickel Plated Brass
	Colour Metallic
	IP Rating IP68
	Locknut Included No
	Maximum Operating Temperature +100°C
	Minimum Operating Temperature -40°C
