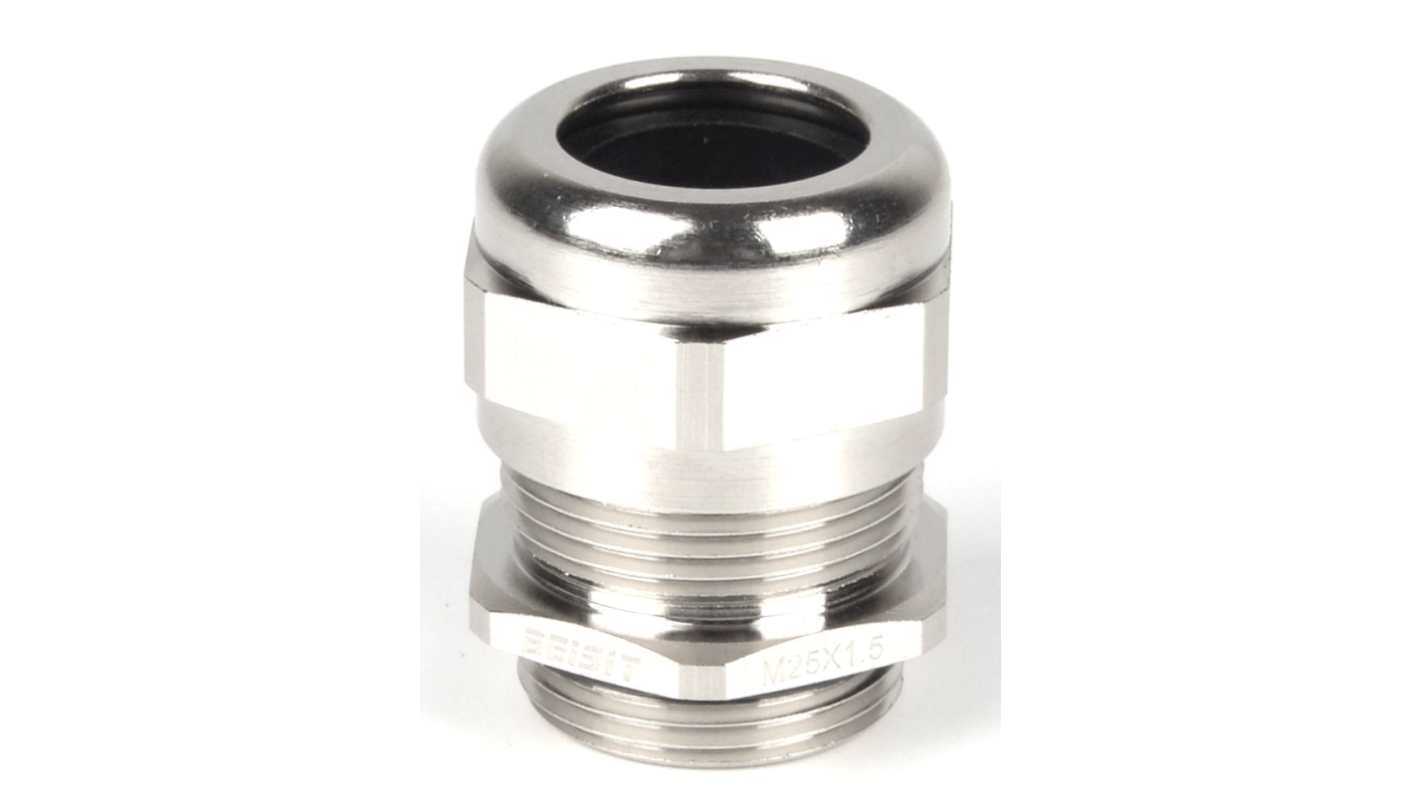

RS PRO Nickel Plated Brass Cable Gland, M25 Thread, 9mm min., 16mm max., IP68

RS Stock No.:: 211-6799
Brand:: RS PRO

RS PRO Nickel Plated Brass Cable Gland, M25 Thread, 9mm min., 16mm max., IP68

Subtotal (1 bag of 10 units)*

Kr.2 617 64

(exc. VAT)

Kr.3 272 05

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

12 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 +	Kr. 2 617,64	Kr. 261,764

*price indicative

RS Stock No.:: 211-6799
Brand:: RS PRO

RS PRO IP68 Metric Type Cable Glands

From the trusted RS Pro brand, a range of IP68 nickel-plated brass cable glands for use with unarmoured cable. The hexagon-shaped glands offer excellent cable retention and optimal strain relief ensuring a secure termination is maintained. The RS Pro metric type cable glands are constructed from nickel-plated brass with PA nylon fixture material ensuring excellent resistance to oils, fuels, water, silicone greases and hydraulic fluids whilst maintaining high abrasion resistance and high tensile strength. With a choice of M25 or M32 threads and various cable diameters, the RS PRO range of hexagon glands offers electrical engineers a reliable solution for numerous applications.

Features and Benefits

IP68 ingress protection, providing protection from water, pressure and dust particles

UL 94 V2 standards

Made from nickel-plated brass with PA Nylon fixture

Operating temperature range – 40°C to + 100°C

For use with Non-armoured cable

M25 to M32 metric threads available (please see datasheet for more details)

Various cable clamping sizes to suit your needs (please see datasheet for more details)

Applications

Cable glands are used throughout many industries to terminate and seal cable entries into electrical equipment and enclosures. They are vital accessories in ensuring cables are fitted and retained correctly providing a secure connection. Some of the most common areas to find cable glands are:
Robotics
Moving machine parts
Electrical Installations
Lighting
Wind and Solar
New Energy Vehicles

Environment

These RS PRO hexagon compression glands have an IP68 ingress protection rating. They are designed for use in areas that require dust and waterproof protection for extended periods of time.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Thread Size	M25
	Maximum Cable Diameter	16mm
	Minimum Cable Diameter	9mm
	Material	Nickel Plated Brass
	IP Rating	IP68
	Locknut Included	No
	Maximum Operating Temperature	100°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand RS PRO
	Thread Size M25
	Maximum Cable Diameter 16mm
	Minimum Cable Diameter 9mm
	Material Nickel Plated Brass
	IP Rating IP68
	Locknut Included No
	Maximum Operating Temperature 100°C
	Minimum Operating Temperature -40°C
