Martindale CMD1000 Cable Tracer

  • RS Stock No. 788-4587
  • Mfr. Part No. RSCD1000
  • Brand Martindale
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

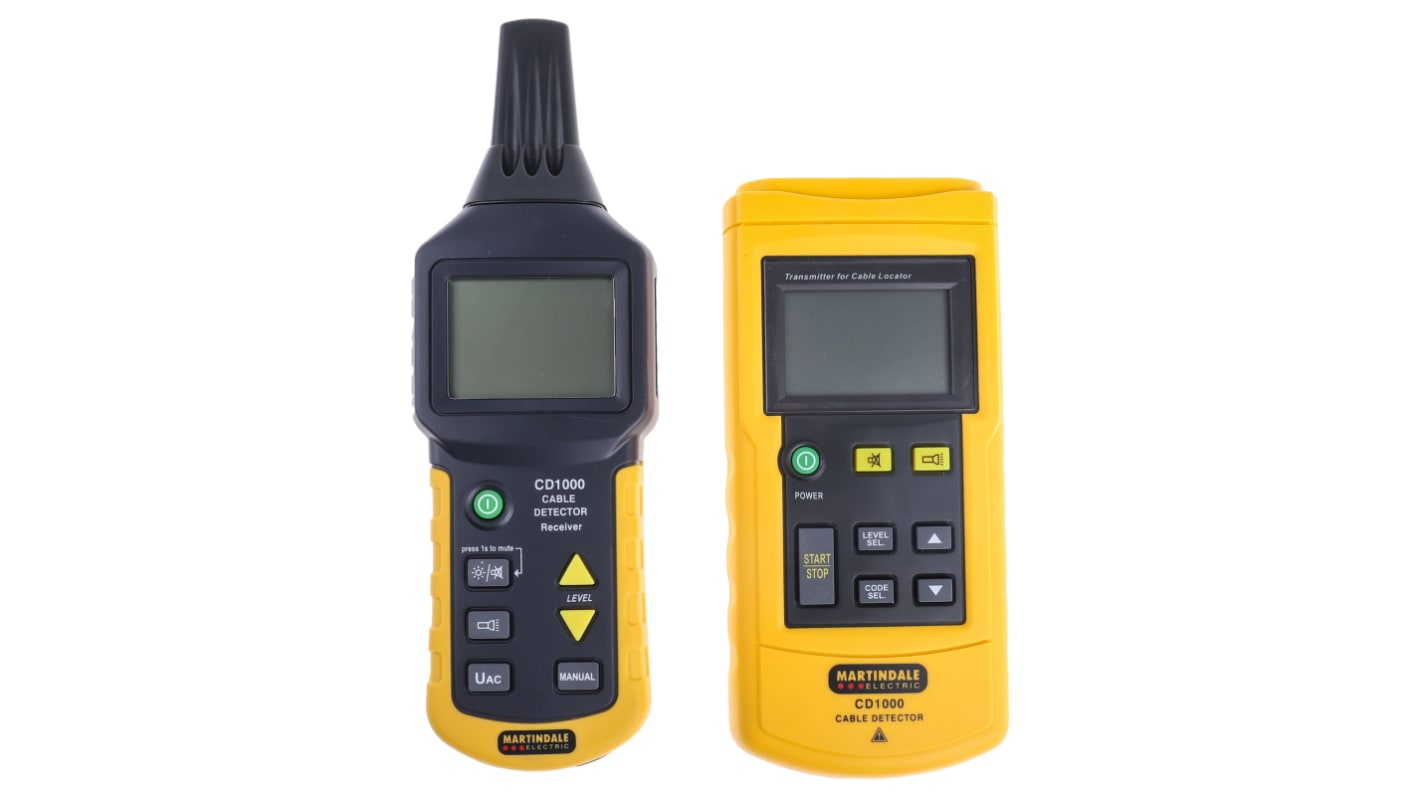

CD1000 Cable Detector Kit

The Martindale CD1000 Cable Detector is ideal for tracing cables in walls and underground, locating fuses/breakers on live or dead circuits and locating interruptions and open-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes.

For all applications (live or dead cables) without additional instruments
Proven digitally coded sender signal guarantees clear signal identification
Transmitter with LCD display for transmitting level, transmitting code
Receiver with a backlight LCD display for level of receiving signal, code of receiving signal and live voltage indication
Automatic or manual adjustment of receiving signal sensitivity
Mute function
Auto power off
Additional torch lamp for working in dark environments
Additional transmitters can be used for multiple users

Conforms to BS EN61010-1 CAT III 300V
Class II Double Insulation
Pollution degree: 2

Transmitter:

Conforms to BS EN 61010-1 CAT III 600V
Class II Double Insulation
Pollution degree: 2

Receiver:

Supplied with

Transmitter, Receiver, bag, TL47 test leads (with crocodile clips), earthing rod, 9V alkaline battery, 1.5V alkaline battery x 6 and instructions

Specifications
Attribute Value
Display Type LCD
Cable Detection Depth 0.4 (U AC) m, 0.5 (Dual Pole) m, 2 (Single Pole) m, 2.5 (Single Loop Line) m
Meter Type Cable Tracer
Safety Category CAT III 300 V, CAT III 600 V
Battery Type AAA, 9V
Power Source Battery
Includes Bag, Earthing Rod, Instructions, TL47, 1.5V Alkaline Battery (6), 9V Alkaline Battery
Maximum Frequency 60Hz
Maximum Operating Temperature +40°C
Maximum Safe Working Voltage 400V
Minimum Frequency 50 Hz
Minimum Operating Temperature 0°C
Minimum Safe Working Voltage 12V
Model Number p CMD1000
Safety Category Level CAT III
Safety Category Voltage 300 V, 600 V
10 In stock for delivery within 1 working days
Price Each
kr 4 855,39
(exc. VAT)
kr 6 069,24
(inc. VAT)
Units
Per unit
1 +
kr 4 855,39
