Steinbach & Vollman Stainless Steel Tumbler Lock, 32mm Panel-to-Tongue, 20.2 x 20.2mm Cutout, Key Unlock
- RS Stock No.:
- 341-0220
- Brand:
- Steinbach & Vollman
Available to back order for despatch 01.05.2024
Added
Price Each
Kr. 375,21
(exc. VAT)
Kr. 469,01
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 375,21 |
| 5 - 9 | Kr. 356,40 |
| 10 - 29 | Kr. 337,70 |
| 30 + | Kr. 315,15 |
- RS Stock No.:
- 341-0220
- Brand:
- Steinbach & Vollman
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

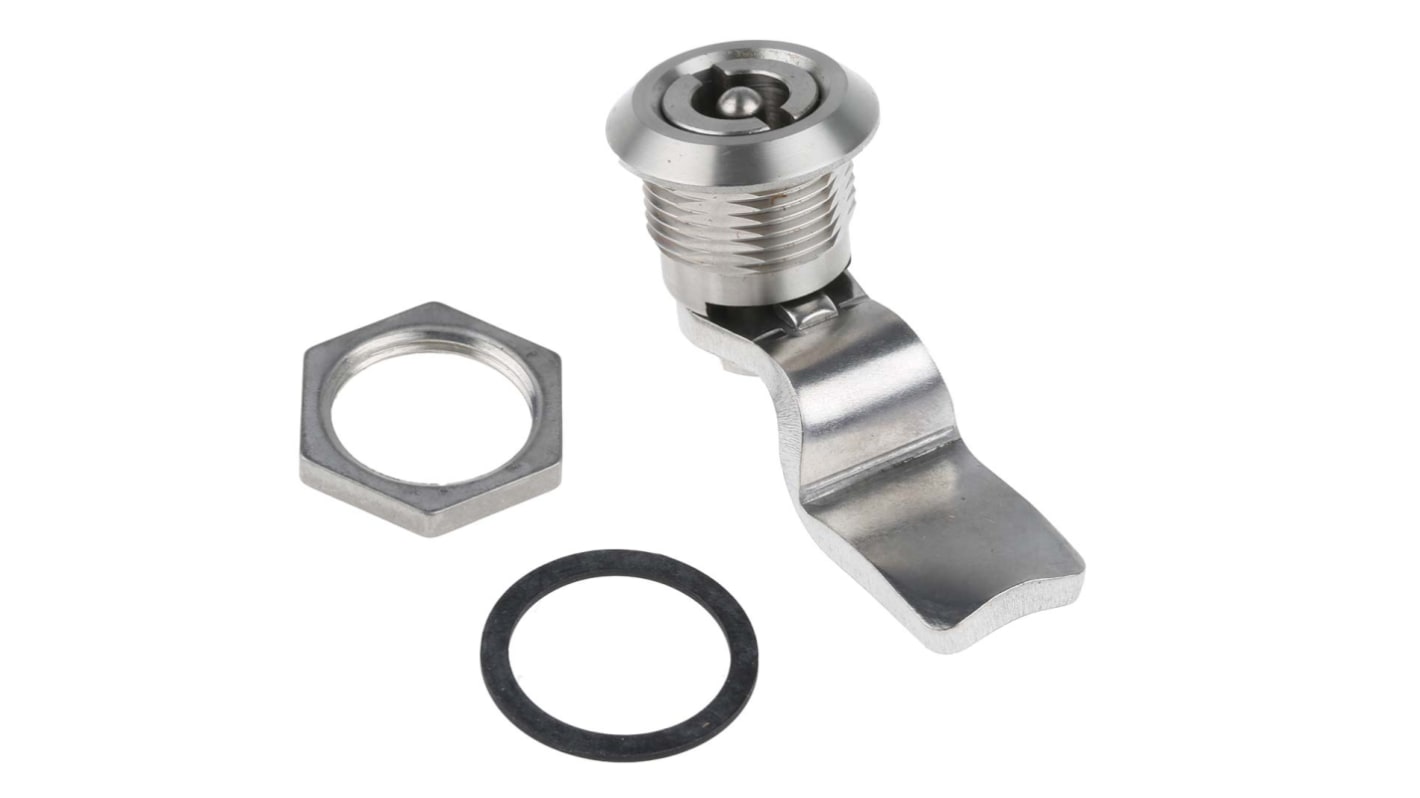

Steinbach & Vollman Pin Lock
The Steinbach & Vollman pin lock is a high-quality security tool with a 5mm pinhead and 32mm panel to tongue depth. The panel cut-out size is 20.2mm of length and 20.2mm of width. It is suitable for enclosures or equipment doors. It is made from stainless steel and has an L shaped grip.
Note:
For pin lock key, see RS stock number 341-0236.
Note:
For pin lock key, see RS stock number 341-0236.
Features and Benefits
Manufactured from stainless steel to withstand the harshest environments
Supplied fully assembled ready for installation
Cam lead-in ensures compression of sealing gasket
Maximum panel thickness is 8mm
Supplied fully assembled ready for installation
Cam lead-in ensures compression of sealing gasket
Maximum panel thickness is 8mm
Applications
Medical institutions
Food industries
Marine equipment storage
Transport industries
Food industries
Marine equipment storage
Transport industries
Specifications
Attribute | Value |
|---|---|
| Unlock Method | Key |
| Panel To Tongue Depth | 32mm |
| Panel Cut Out | 20.2 x 20.2mm |
| Maximum Panel Thickness | 8 mm, - |
| Panel Cut Out Length | 20.2mm |
| Panel Cut Out Width | 20.2mm |
| Material | Stainless Steel |
