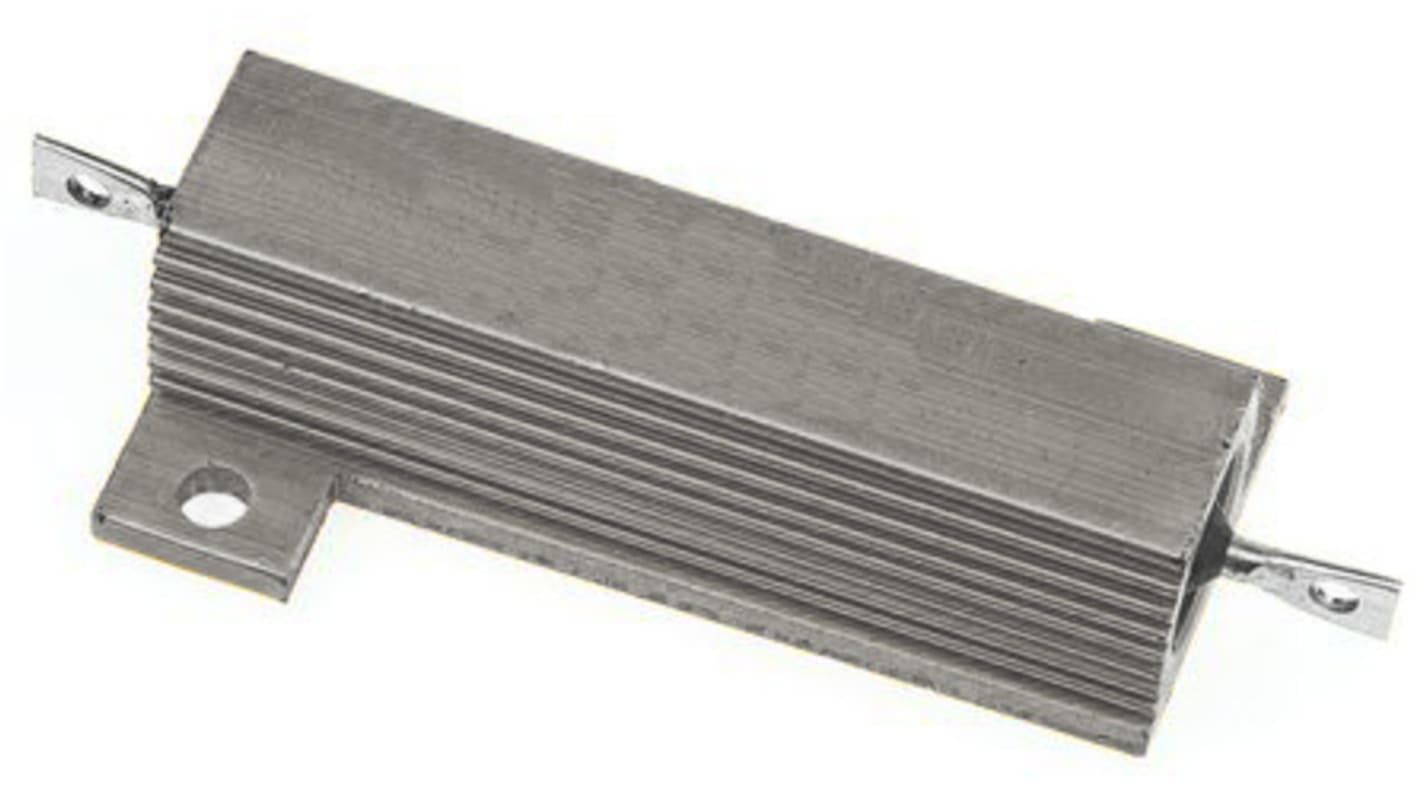

RS PRO, 100Ω 50W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 131-1299
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
Kr.186 53
(exc. VAT)
Kr.233 16
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 100 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 26. november 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 245 | Kr. 37,306 | Kr. 186,53 |
| 250 - 495 | Kr. 36,288 | Kr. 181,44 |
| 500 - 1245 | Kr. 35,372 | Kr. 176,86 |
| 1250 - 2495 | Kr. 34,388 | Kr. 171,94 |
| 2500 + | Kr. 33,656 | Kr. 168,28 |
*price indicative
- RS Stock No.:
- 131-1299
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 100Ω | |
| Power Rating | 50W | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±5% | |
| Technology | Wire Wound | |
| Termination Style | Axial | |
| Maximum Operating Temperature | +200°C | |
| Minimum Temperature Coefficient | -100ppm/°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Dimensions | 72.5 x 29.7 x 14.8mm | |
| Overall Width | 29.7mm | |
| Overall Length | 72.5mm | |
| Overall Height | 14.8mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 100Ω | ||
Power Rating 50W | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Axial | ||
Maximum Operating Temperature +200°C | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 72.5 x 29.7 x 14.8mm | ||
Overall Width 29.7mm | ||
Overall Length 72.5mm | ||
Overall Height 14.8mm | ||
- COO (Country of Origin):
- GB
RS Pro 50 W Aluminium Housed Wirewound Resistors
RS Pro 50 W Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Features
Compact size for Power rating
High Power to volume
Wound to maximise High Pulse Capability
High Power to volume
Wound to maximise High Pulse Capability
Applications
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
