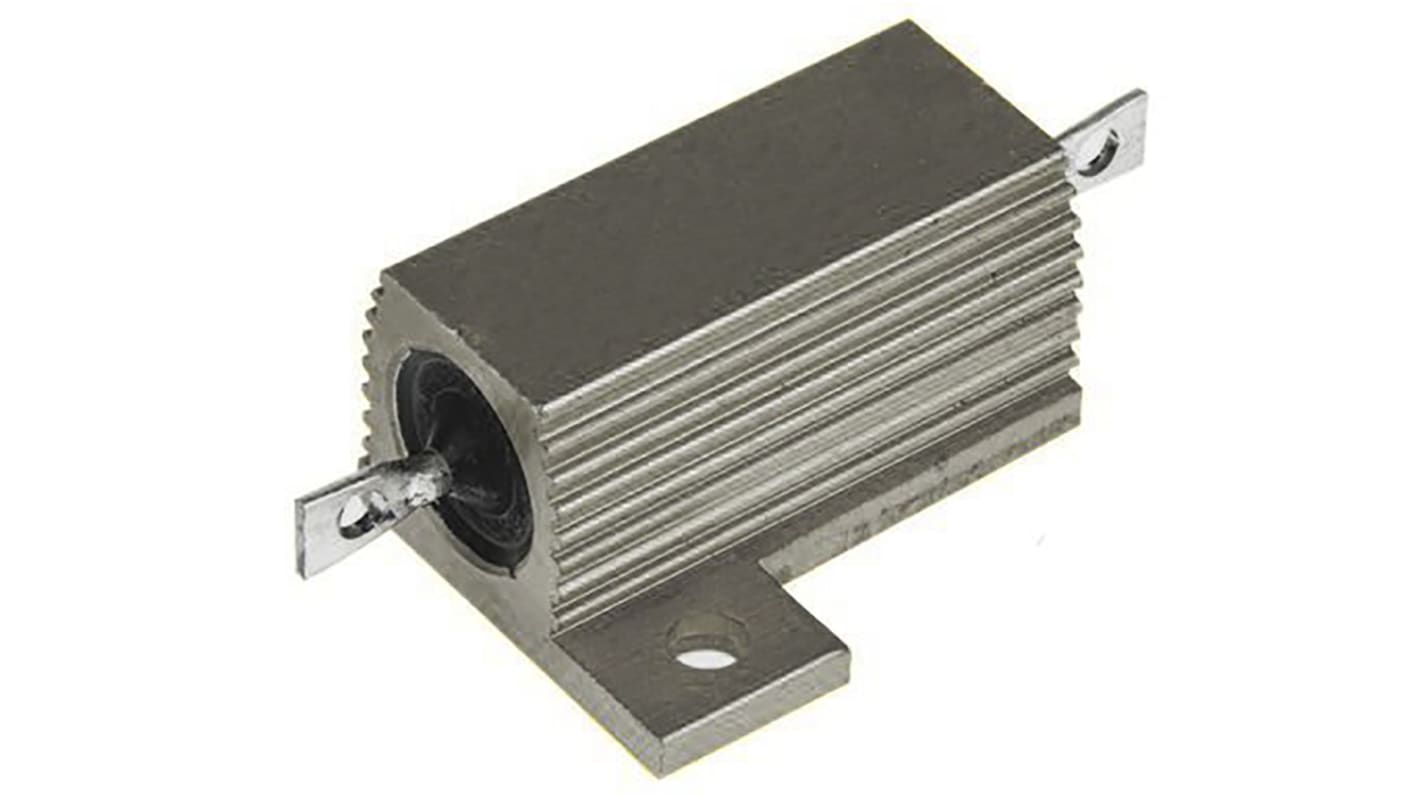

RS PRO, 2 Ω 25 W Aluminium Chassis Mount Resistor ±5 %

Name: RS PRO, 2 Ω 25 W Aluminium Chassis Mount Resistor ±5 %
Brand: RS PRO
SKU: 175-4098
Price: 70.61 NOK
Availability: InStock

Bulk discount available

Subtotal (1 pack of 5 units)*

Kr. 282,45

(exc. VAT)

Kr. 353,05

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Resistance	2Ω
	Product Type	Chassis Mount Resistor
	Power Rating	25W
	Series	RS25
	Package/Case	Aluminium
	Tolerance	±5 %
	Automotive Standard	No
	Technology	Aluminium
	Overall Length	27.3mm
	Maximum Operating Temperature	200°C
	Standards/Approvals	IEC 115, MIL 18546, RoHS
	Overall Height	14.8mm
	Overall Width	28mm

	Select all
	Brand RS PRO
	Resistance 2Ω
	Product Type Chassis Mount Resistor
	Power Rating 25W
	Series RS25
	Package/Case Aluminium
	Tolerance ±5 %
	Automotive Standard No
	Technology Aluminium
	Overall Length 27.3mm
	Maximum Operating Temperature 200°C
	Standards/Approvals IEC 115, MIL 18546, RoHS
	Overall Height 14.8mm
	Overall Width 28mm

Designed for direct heatsink mounting with thermal compound to achieve maximum performance.

High Power to volume

Wound to maximise High Pulse Capability

Values from R005 to 100K
