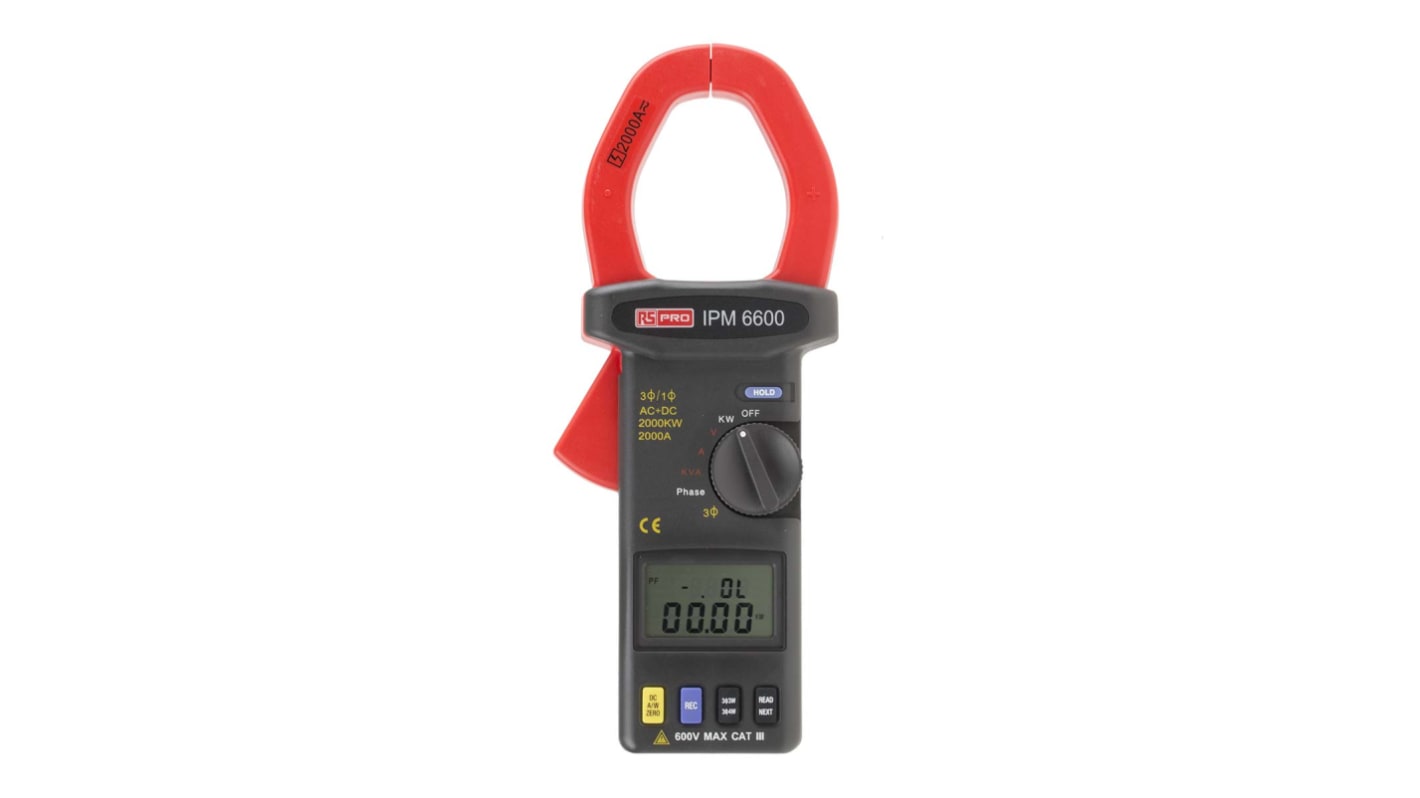

RS PRO IPM6600 Clamp Meter, 2000A dc, Max Current 2000A ac CAT III 600 V With RS Calibration
- RS Stock No.:
- 123-2344
- Brand:
- RS PRO
Price Each**
Kr. 7 431,37
(exc. VAT)
Kr. 9 289,21
(inc. VAT)
Available to back order for despatch 07.06.2025*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over kr 500,00
Not available for next day delivery
Units | Per unit |
|---|---|
| 1 + | Kr. 7 431,37 |
**price indicative
- RS Stock No.:
- 123-2344
- Brand:
- RS PRO
- COO (Country of Origin):
- TW
RS Pro IPM 6600 Power Clampmeter, 1200 kW
From the trusted RS PRO brand, this IPM 6600 is a great value, three-phase power clamp featuring AC+DC true power and True RMS AC voltage and current. Features include DCA/DCW Auto Zero when power clamp powering is ON, and AC/DC Auto Detection, Auto range.
Battery-powered for maximum portability, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.
It is also supplied in a carry case to keep the clampmeter safe and secure during transit.
Features and Benefits
• AC/DC power factor measurement
• AC/DC voltage measurement
• AC/DC current measurement
• 3 phase AC/DC balanced & unbalanced
• Apparent power & reactive power
• Phase angle
• Frequency measurement
• 10 000 count 4-digit dual LCD display
• Conductor size, cable 55 mm (approximately) and busbar 65 x 24 mm
• Dimensions 271 x 112 x 46 mm
• Weight 647 g (battery included)
• Dimensions 271 x 112 x 46 mm
• Powered by 9 V alkaline PP3 battery (supplied)
• Weight 647 g (battery included)
Applications
This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current and voltage. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods.
True RMS (Root Mean Square) reading has advantages over average RMS reading in that it compensates for interfering electronic loads or distorted sinewaves to give an accurate reading.
This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.
Why RS PRO?
RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.
When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.
Battery-powered for maximum portability, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.
It is also supplied in a carry case to keep the clampmeter safe and secure during transit.
Features and Benefits
• AC/DC power factor measurement
• AC/DC voltage measurement
• AC/DC current measurement
• 3 phase AC/DC balanced & unbalanced
• Apparent power & reactive power
• Phase angle
• Frequency measurement
• 10 000 count 4-digit dual LCD display
• Conductor size, cable 55 mm (approximately) and busbar 65 x 24 mm
• Dimensions 271 x 112 x 46 mm
• Weight 647 g (battery included)
• Dimensions 271 x 112 x 46 mm
• Powered by 9 V alkaline PP3 battery (supplied)
• Weight 647 g (battery included)
Applications
This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current and voltage. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods.
True RMS (Root Mean Square) reading has advantages over average RMS reading in that it compensates for interfering electronic loads or distorted sinewaves to give an accurate reading.
This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.
Why RS PRO?
RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.
When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.
Standards
BSEN61010 & BS61010-2-032 600V Cat III
Supplied with
Case, battery, user manual
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 2000A ac |
| Absolute Maximum DC Current Measurement | 2000A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Model Number | IPM6600 |
| Calibrated | RSCAL |
| AC Current Measurement Resolution | 0.1A |
| DC Current Measurement Resolution | 0.1A |
| Best DC Current Accuracy | ±1.5 % ± 5 Digits |
| Clamp Meter Type | Power Clamp Meter |
| Best AC Current Accuracy | ±1.5 % ± 5 Digits |
| Best AC Voltage Accuracy | ±1.5 % ± 5 Digits |
| Best DC Voltage Accuracy | ±1.5 % ± 5 Digits |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Power |
| Jaw Capacity Busbars | 65 (Dia.) x 24 (W)mm |
| DC Voltage Measurement Resolution | 0.1V |
| Battery Type | 9V |
| Safety Category | CAT III 600 V |
| Display Type | LCD |
| Weight | 647g |
| Maximum Conductor Size | 55mm |
| Maximum Operating Temperature | +50°C |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Power Source | Battery |
| Width | 46mm |
| Length | 112mm |
| Dimensions | 112 x 46 x 271mm |
| Minimum Operating Temperature | +4°C |
| AC Voltage Measurement Resolution | 0.1V |
| Height | 271mm |
