Fluke 323 Clamp Meter, 400 A dc 400 A 600 V dc 600 V ac CAT IV 300 V, CAT III 600 V
- RS Stock No.:
- 269-8971
- Mfr. Part No.:
- 323/T110
- Brand:
- Fluke
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 269-8971
- Mfr. Part No.:
- 323/T110
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Clamp Meter | |
| Maximum DC Current Measurement | 400A dc | |
| Maximum AC Voltage Measurement | 600V ac | |
| Maximum DC Voltage Measurement | 600V dc | |
| Maximum Resistance Measurement | 4kΩ | |
| Model Number | 323 | |
| DC Voltage Accuracy | ±1 % rdg + 5 Digits | |
| Resistance Measurement Accuracy | ±1 % rdg + 5 Digits | |
| AC Voltage Accuracy | 1.5 % rdg ±5 Digits | |
| Clamp Meter Type | AC Current Clamp Meter | |
| AC Current Accuracy | ±2 % rdg + 5 Digits | |
| Width | 75 mm | |
| Length | 34mm | |
| Weight | 265g | |
| Standards/Approvals | No | |
| Height | 207mm | |
| Functions Measured | AC Voltage, Resistance, AC Current, DC Voltage, Continuity | |
| True RMS | Yes | |
| Maximum AC Current Measurement | 400A | |
| Safety Category Voltage | 500V | |
| Safety Category Level | CAT IV 300 V, CAT III 600 V | |
| Maximum Conductor Size | 30 mm | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Clamp Meter | ||
Maximum DC Current Measurement 400A dc | ||
Maximum AC Voltage Measurement 600V ac | ||
Maximum DC Voltage Measurement 600V dc | ||
Maximum Resistance Measurement 4kΩ | ||
Model Number 323 | ||
DC Voltage Accuracy ±1 % rdg + 5 Digits | ||
Resistance Measurement Accuracy ±1 % rdg + 5 Digits | ||
AC Voltage Accuracy 1.5 % rdg ±5 Digits | ||
Clamp Meter Type AC Current Clamp Meter | ||
AC Current Accuracy ±2 % rdg + 5 Digits | ||
Width 75 mm | ||
Length 34mm | ||
Weight 265g | ||
Standards/Approvals No | ||
Height 207mm | ||
Functions Measured AC Voltage, Resistance, AC Current, DC Voltage, Continuity | ||
True RMS Yes | ||
Maximum AC Current Measurement 400A | ||
Safety Category Voltage 500V | ||
Safety Category Level CAT IV 300 V, CAT III 600 V | ||
Maximum Conductor Size 30 mm | ||
- COO (Country of Origin):
- CN

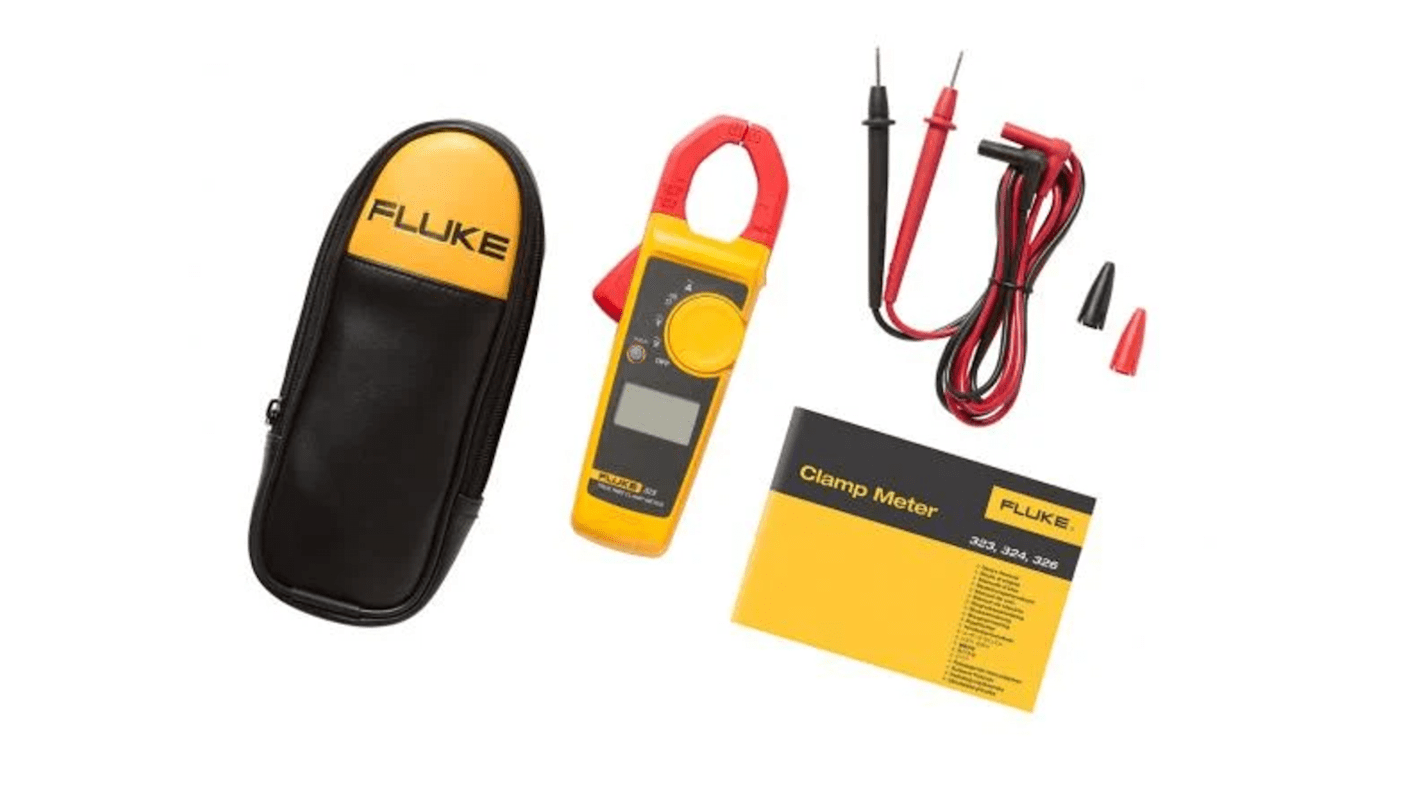

Fluke 323/T110 Clamp Meter and Fluke T-1 Bundle
Make an economic choice by purchasing these highly reliable Fluke tools as a bundle.
The Fluke two pole voltage, continuity electrical tester and clamp meter that has clear audible and vibrating voltage indicator and it has redesigned cable assembly for superb reliability on the job. The clamp meter that provides true RMS ac voltage and current for accurate measurements on non linear signal. It has slim, ergonomic design for measuring in tight cable compartments.
Features and Benefits
Ease of use and fast answer
Improved probe docking for secure storage
Easy to read display
Noise free clamp meter
