    Testo 770-1 AC/DC Clamp Meter, 400A dc, Max Current 400A ac CAT 4 600 V, CAT 3 1000 V

    RS Stock No.:
    905-5891
    Mfr. Part No.:
    0590 7701
    Brand:
    Testo
    Testo
    View all Clamp Meters
    27 In stock for delivery next working day
    11 available from Europe for delivery within 2 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    kr 1 478,51

    (exc. VAT)

    kr 1 848,14

    (inc. VAT)

    UnitsPer unit
    1 +kr 1 478,51

    Calibration Options:

    Testo 770-1 AC/DC Clamp Meter, Max Current 400A ac CAT 3 1000 V, CAT 4 600 V With RS Calibration
    Calibration Type:
    RSCAL
    RS Stock No.
    905-6910

    Price Each

    kr 1 991,51

    (exc. VAT)

    kr 2 489,39

    (inc. VAT)

    Testo 770-1 AC/DC Clamp Meter, Max Current 400A ac CAT 3 1000 V, CAT 4 600 V With UKAS Calibration
    Calibration Type:
    UKAS
    RS Stock No.
    905-6914

    Price Each

    kr 2 200,51

    (exc. VAT)

    kr 2 750,64

    (inc. VAT)

    RS Stock No.:
    905-5891
    Mfr. Part No.:
    0590 7701
    Brand:
    Testo
    COO (Country of Origin):
    CN

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

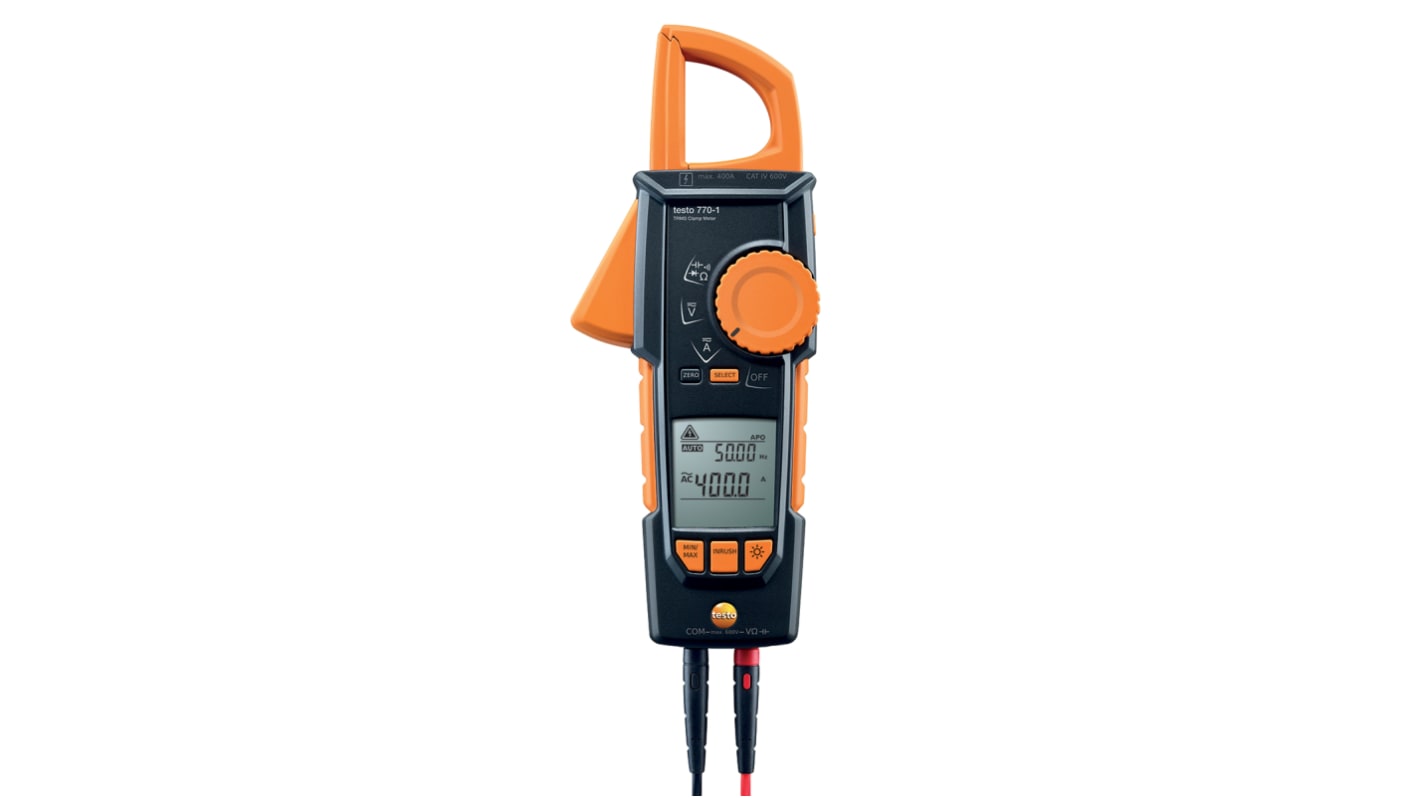

    Testo 770-1 Clampmeter


    Testo 770-1 is suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also enables reliable work. Testo 770-1 detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.


    Innovative clamp mechanism for easy operation in narrow spaces
    Extra functions such as inrush, power and μA measurement
    Auto ac/dc
    True RMS
    Voltage measuring range: 1 mV to 600 V ac/dc
    Current measuring range: 0.1 A to 400 A ac/dc
    Display (counts): 4000


    Benefits


    No more problems grabbing cables in confined spaces
    Grab cables with the clamp instead of touching them
    Clear visible measurement results


    Standards

    EN 61326-1, EN 61140

    Approvals

    TÜV, CSA, CE

    Supplied with

    Testo 770-1 TRMS clamp meter, batteries and 1 set of measuring cables.

    Testo AC/DC Clamp Meter, 400A AC/DC, 600V AC/DC - 770 Series - 0590 7701


    Measure current and voltage in switching cabinets with this high-performance clamp meter from Testo. It has an automatic parameter detection feature that makes it easy to measure values without the need to change the meter settings. Thanks to its two pincer arms, one of which can be fully retracted into the instrument, you can easily grab cables in tight spaces. The meter has a liquid-crystal display (LCD) screen for measurement results that are easy to read.


    Features & Benefits


    • Light weight of 302g for ease of handling
    • Battery-powered for portable use without the need for an external power supply
    • Wide operating temperature range of -10°C to +50°C for use in demanding conditions
    • Wide current measuring range of 0.1A to 400A for use in a variety of applications


    Applications


    • Distribution boards
    • Machine power panels


    What's the difference between a clamp meter and a multimeter?


    The major difference between a clamp meter and a multimeter is that a clamp meter can measure high currents, while a multimeter is more suitable for smaller, more precise measurements.



    Specifications

    AttributeValue
    Absolute Maximum AC Current Measurement400A ac
    Absolute Maximum DC Current Measurement400A dc
    Absolute Maximum AC Voltage Measurement600V ac
    Absolute Maximum DC Voltage Measurement600V dc
    Absolute Maximum Resistance Measurement40MΩ
    Model Number770-1
    AC Current Measurement Resolution100mA
    DC Current Measurement Resolution100mA
    Best DC Current Accuracy±(2% rdg + 5dgts)
    Clamp Meter TypeAC/DC Clamp Meter
    Best AC Current Accuracy±(2% rdg + 5dgts)
    Best AC Voltage Accuracy±(1% rdg + 3dgts)
    Functions MeasuredAC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
    Best DC Voltage Accuracy±(0.8% rdg + 3dgts)
    True RMSYes
    Battery TypeAAA
    AC Voltage Measurement Resolution1mV
    AC Current Measurement Range0.1 → 400 A
    AC Voltage Measurement Range0.001 → 600 V
    Weight302g
    Safety Category LevelCAT 3, CAT 4
    DC Current Measurement Range0.1 → 400 A
    Power SourceBattery
    Width96mm
    Length243mm
    Safety Category Voltage600 V, 1000 V
    Resistance Measurement Resolution100mΩ
    Height43mm
    Minimum Operating Temperature-10°C
    Safety CategoryCAT 4 600 V, CAT 3 1000 V
    DC Voltage Measurement Resolution1mV
    Display TypeLCD
    Maximum Operating Temperature+50°C
    Dimensions243 x 96 x 43mm
