Belden 1505A Series, 152.4m, RG59/U Coaxial, Unterminated75 Ω

View all Coaxial Cable

Subtotal (1 reel of 152 metres)*

Kr.9 792 31

(exc. VAT)

Kr.12 240 39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +Kr. 9 792,31Kr. 64,423

*price indicative

RS Stock No.:
331-9284
Distrelec Article No.:
300-84-955
Mfr. Part No.:
1505A.00152
Brand:
Belden
Find similar products by selecting one or more attributes.
Select all

Brand

Belden

Terminated/Unterminated

Unterminated

Coaxial Type

RG59/U

Outer Diameter

5.92mm

CPR Certification

Eca

Characteristic Impedance

75 Ω

Attenuation

10.9 dB/100ft @ 2GHz, 11.6 dB/100ft @ 2250MHz, 13.4 dB/100ft @ 3GHz, 16.4 dB/100ft @ 4500MHz

Length

152.4m

Sheath Colour

Black

Conductor Strand Type

Solid

Number of Strands

1

Sheath Material

Polyvinyl Chloride PVC

Insulation Material

Foam HDPE

Velocity ratio

0.82

Minimum Operating Temperature

-30°C

Core Strands

1/0.81

Capacitance

53.464pF/m

Shielding

Tinned Copper Braid

Conductor Material

Bare Copper

Size of Strands

20 AWG

Operating Temperature Range

-30 → +75 °C

Series

1505A

Maximum Operating Temperature

+75°C

COO (Country of Origin):
NL

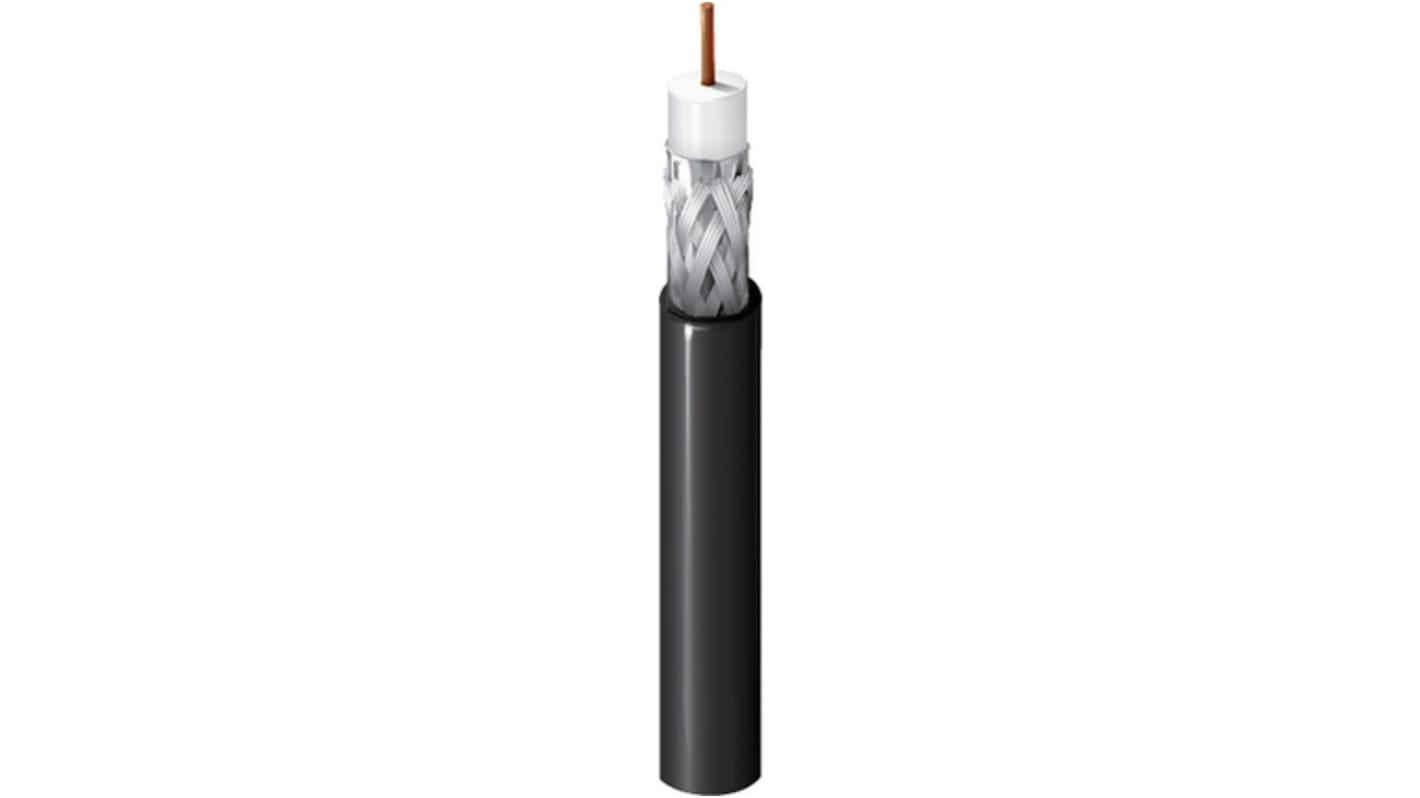

Belden 1505A Coaxial Digital Video Cable, RG-59/U


Choose the Belden 1505A digital video cable for applications where superior signal integrity is required.

These 20 AWG cables from Belden are designed for critical analog and digital video circuits, and high-quality applications. They are similar to the Belden 1694A cables however use a smaller outer diameter. They also use RG6 connectors.

Belden is a global industry leader for high quality, efficient and reliable cabling, networking and connectivity products. Their products are tested to strict quality standards to deliver safe, dependable connections for any installation, helping you to maximise uptime.

1505A.00152 Coax Cable, 300V, 75 Ohm


The 1505A.00152 SDI cable uses a solid bare copper conductor, ensuring high conductivity of electrical signals. It has a durable PVC (Polyvinyl Chloride) outer sheath which resists abrasions. It comes in a length of 152m.

Features and Benefits:


• UV resistant and suitable for indoor and outdoor use
• Duofoil® + 95% Tinned Copper Braid Shield provides effective protection against interference
• Foam PE (Polyethylene) insulation
• Wide operating temperature range of -20°C to +75°C

Applications:


Digital Video
6 Gb/s UHDTV
HD-SDI 1080p
