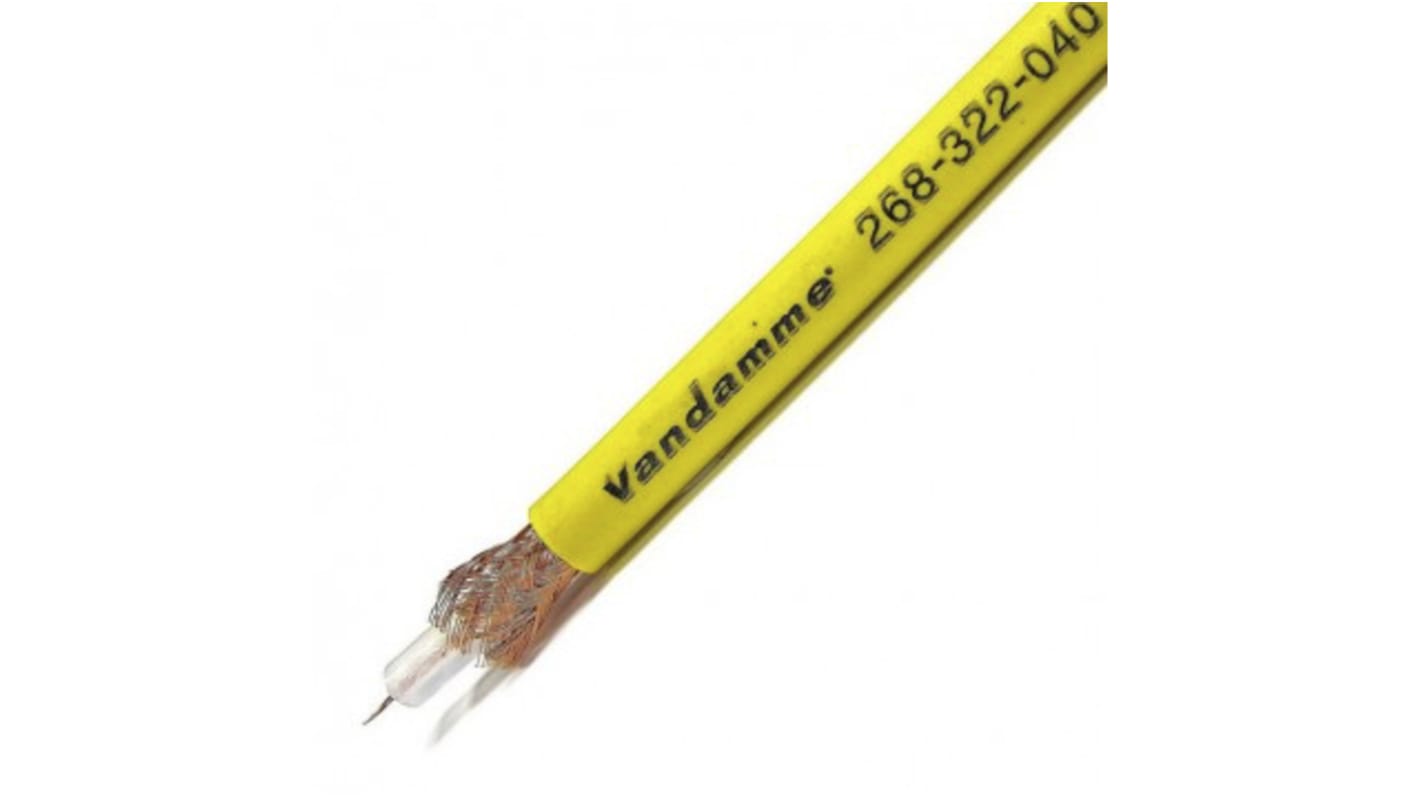

Van Damme Standard 75 Series SDI Coaxial Cable, 100m, RG59 Coaxial, Unterminated

RS Stock No.:: 768-2160
Mfr. Part No.:: 268-322-040
Brand:: Van Damme

Van Damme Standard 75 Series SDI Coaxial Cable, 100m, RG59 Coaxial, Unterminated

Available to back order for despatch 22.07.2024

Added

Price 1 Reel of 100 Metre(s)

Kr. 2 266,66

(exc. VAT)

Kr. 2 833,32

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	Kr. 2 266,66	Kr. 22,667
*price indicative

RS Stock No.:: 768-2160
Mfr. Part No.:: 268-322-040
Brand:: Van Damme

Technical Reference

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

Standard 75Ω Video Cable

Designed and created due to the increasing demand for a quality range of OFC Cables. Stringent copper purity tests have resulted in a highly flexible yet extremely robust range of cables. This range of cable caters for professionals in audio recording or broadcasting. Combining mechanically strong and reliable crimp terminations with a flexibility normally only seen in microphone cables. Its PVC/neoprene antistatic sheath keeps its flexibility and easy to handle even at sub zero temperatures. It is highly recommended for serial digital video.

Features and Benefits

Highly flexible but rugged
Uses RG59 BNC connectors
Variety of colours for ease of identification

Specifications

Attribute	Value
Terminated/Unterminated	Unterminated
Coaxial Type	RG59
Outer Diameter	6.15mm
Characteristic Impedance	75 Ω
Attenuation	17.42 dB/100m @ 180MHz, 18.36 dB/100m @ 200MHz, 28.11 dB/100m @ 400MHz, 38.31 dB/100m @ 743MHz
Length	100m
Sheath Colour	Yellow
Conductor Strand Type	Stranded
Sheath Material	Polyvinyl Chloride PVC
Size of Strands	0.2 mm
Conductor Material	Bare Copper
Capacitance	67pF/m
Insulation Material	PE
Number of Strands	7
Shielding	Bare Copper Braid
Velocity ratio	66%
Series	Standard 75
Core Strands	7/0.2
