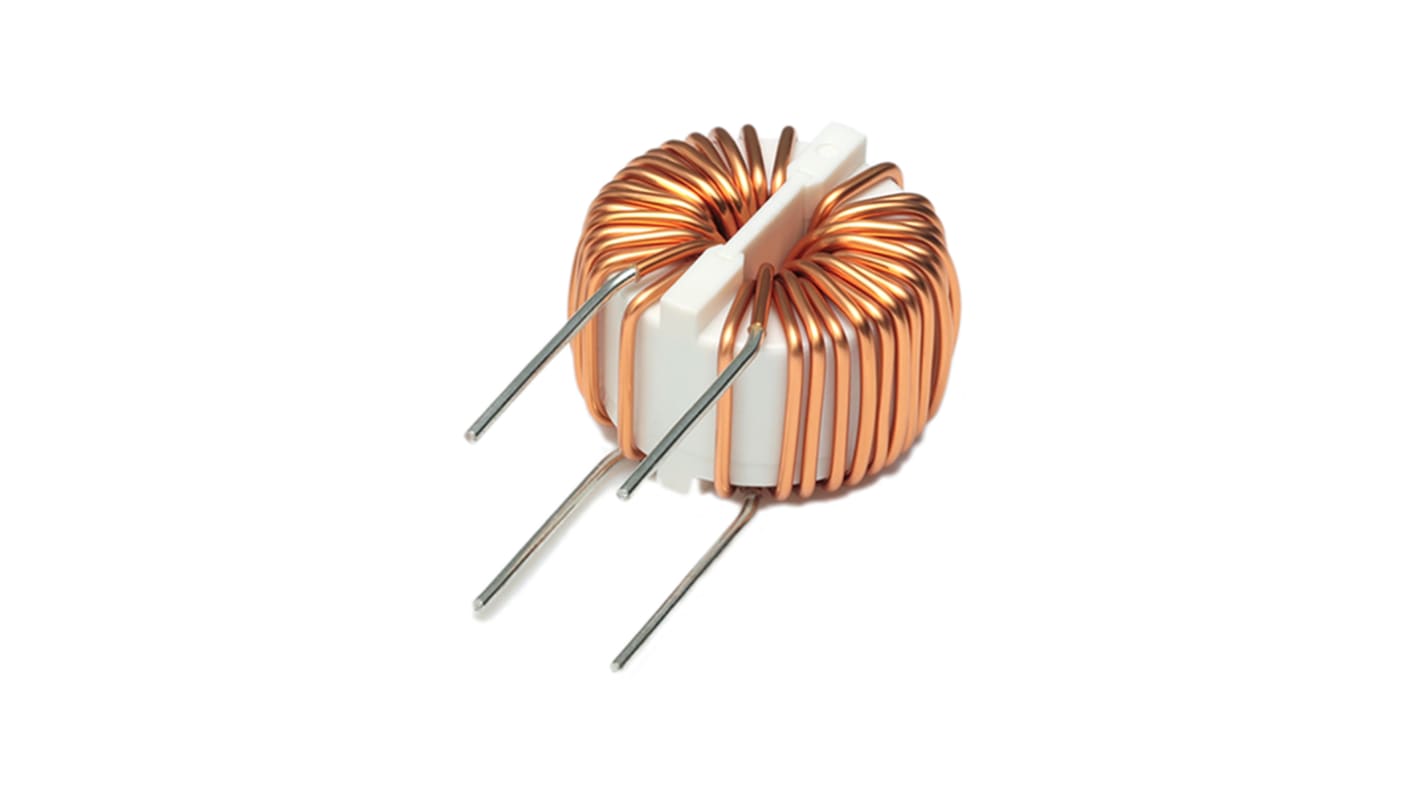

3 mH KEMET SC Common mode filter

  • RS Stock No. 169-6906
  • Mfr. Part No. SC-02-30G
  • Brand KEMET
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): VN
Product Details

Kemet SC-G Series Common Mode Chokes

Kemet SC Coil AC Line filters are suitable for use as common mode chokes and in consumer electronics. A range of different sizes and specifications are available.

Rated currents up to 2 A
DC resistances between 0.08 and 0.18 Ω
Inductances of between 1000 and 5000 uH

Specifications
Attribute Value
Inductance 3 mH
Series SC
DC Resistance 85mΩ
Maximum Current 2 A
Dimensions 17.5 x 14 x 17.5mm
Operating Temperature Range -25 → +80 °C
Mounting Type Through Hole
Maximum Operating Temperature +80°C
Length 17.5mm
Depth 14mm
Height 17.5mm
Minimum Operating Temperature -25°C
Available to back order for despatch 20.07.2020
Price Each (In a Box of 1300)
kr 13,074
(exc. VAT)
kr 16,342
(inc. VAT)
Units
Per unit
Per Box*
1300 - 5200
kr 13,074
kr 16 996,20
6500 +
kr 12,081
kr 15 705,30
*price indicative
