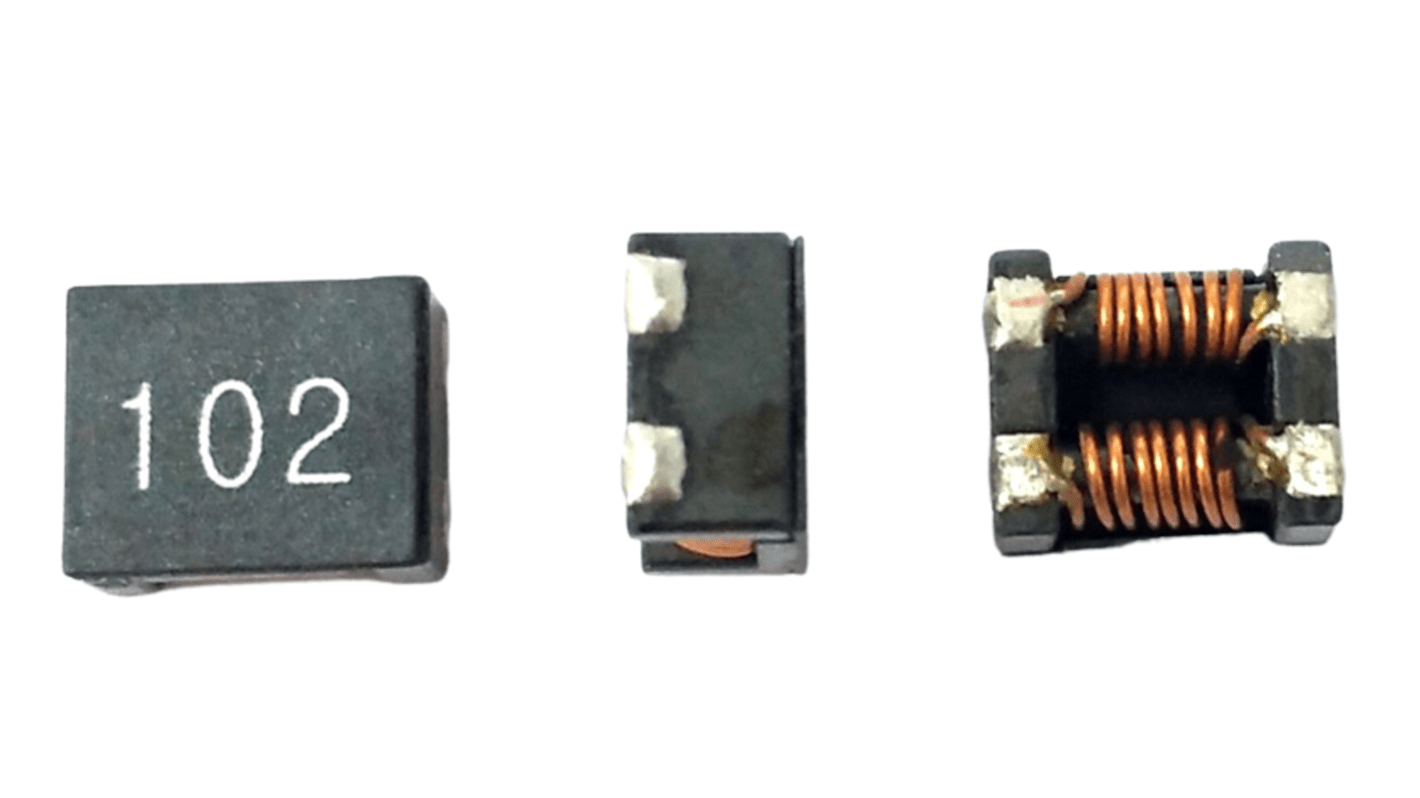

Abracon 2.5 A Common Mode Choke 60 mΩ 125V
- RS Stock No.:
- 249-9366
- Mfr. Part No.:
- ACMP-9050-222-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 reel of 700 units)*
Kr. 6 787,20
(exc. VAT)
Kr. 8 484,00
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 2 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 700 - 700 | Kr. 9,696 | Kr. 6 787,20 |
| 1400 - 1400 | Kr. 9,434 | Kr. 6 603,80 |
| 2100 - 4200 | Kr. 9,182 | Kr. 6 427,40 |
| 4900 - 9100 | Kr. 8,949 | Kr. 6 264,30 |
| 9800 + | Kr. 8,726 | Kr. 6 108,20 |
*price indicative
- RS Stock No.:
- 249-9366
- Mfr. Part No.:
- ACMP-9050-222-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Common Mode Choke | |
| Maximum DC Current | 2.5A | |
| Series | ACMP-9050 | |
| Impedance | 2200Ω | |
| Core Material | Ferrite | |
| Test Frequency | 100MHz | |
| Packaging | Tape and Reel | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | No | |
| Choke Voltage | 125V | |
| Height | 5mm | |
| Length | 9mm | |
| Maximum DC Resistance | 60mΩ | |
| Standards/Approvals | ISO9001-2015, RoHS, RoHS II | |
| Termination Style | Tin/Copper | |
| Depth | 7mm | |
| Package/Case | ACMP-9050 | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Common Mode Choke | ||
Maximum DC Current 2.5A | ||
Series ACMP-9050 | ||
Impedance 2200Ω | ||
Core Material Ferrite | ||
Test Frequency 100MHz | ||
Packaging Tape and Reel | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard No | ||
Choke Voltage 125V | ||
Height 5mm | ||
Length 9mm | ||
Maximum DC Resistance 60mΩ | ||
Standards/Approvals ISO9001-2015, RoHS, RoHS II | ||
Termination Style Tin/Copper | ||
Depth 7mm | ||
Package/Case ACMP-9050 | ||
The Abracon power common mode choke has excellent impedance characteristic. It is used in AC/DC power rectifiers . It is RoHS compliant and Pb free. It has operating temperature range from -40°C to +125°C (Including self-heating).
Rated Voltage of 125V
Insulation Resistance of 10 MΩ
Rated Current of 2.5A
Used in Switch Mode Power Supplies and regulators
Variable Frequency Drives
