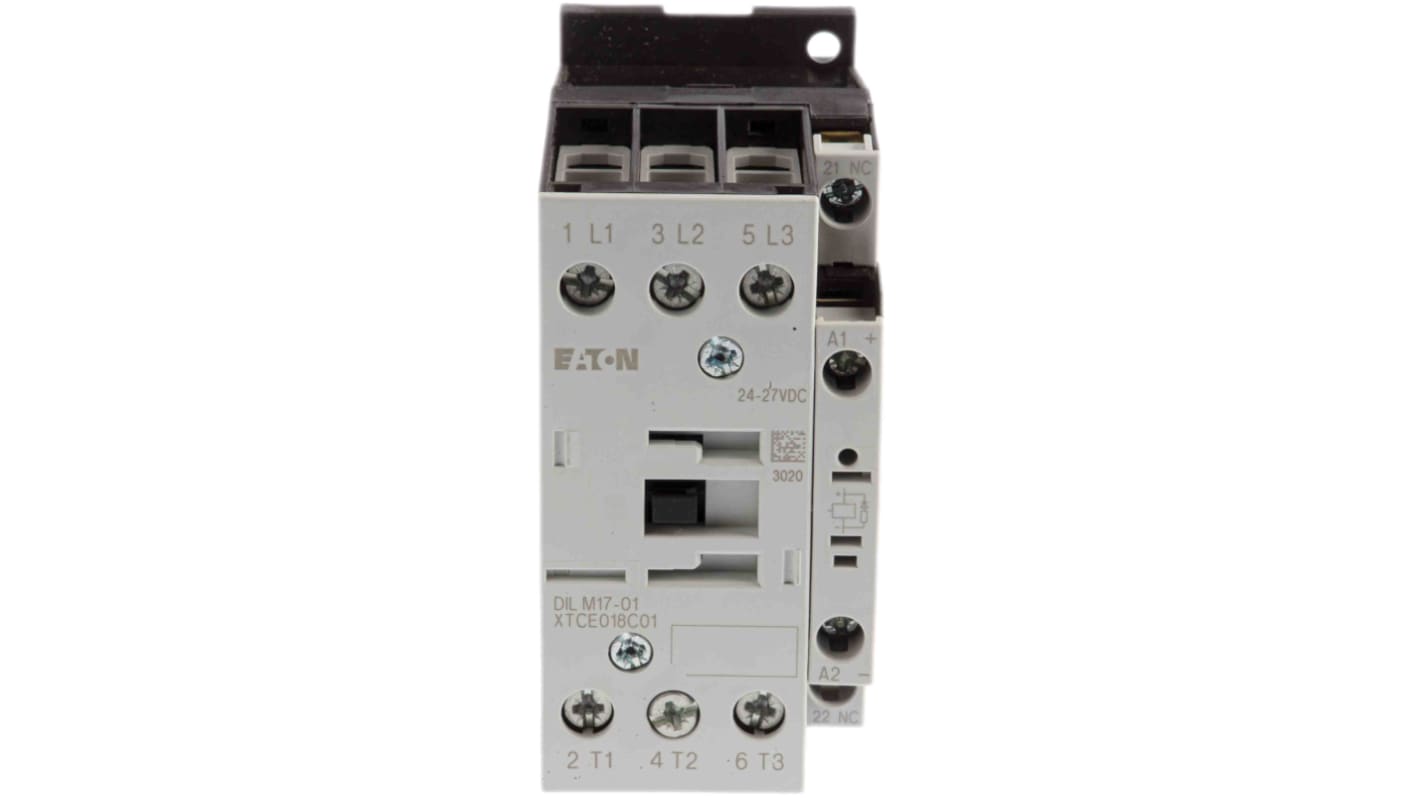

Eaton DILM Contactor, 24V dc Coil, 3-Pole, 17 A, 7.5 kW 24V dc, 3 NO, 400V ac

RS Stock No.:: 743-4920
Distrelec Article No.:: 136-22-415
Mfr. Part No.:: 277050 DILM17-01(RDC24)
Brand:: Eaton

Eaton DILM Contactor, 24V dc Coil, 3-Pole, 17 A, 7.5 kW 24V dc, 3 NO, 400V ac

Subtotal (1 unit)*

Kr. 1 632,64

(exc. VAT)

Kr. 2 040,80

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Temporarily out of stock

16 unit(s) shipping from 09 June 2026
Plus 2 unit(s) shipping from 15 June 2026
Plus 8 unit(s) shipping from 23 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 632,64

*price indicative

RS Stock No.:: 743-4920
Distrelec Article No.:: 136-22-415
Mfr. Part No.:: 277050 DILM17-01(RDC24)
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Coil Voltage	24V dc
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	17A
	Power Rating	7.5kW
	Series	DILM
	Function	Motor Control, Resistive Load
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NC
	Number of Auxiliary Contacts	1
	Terminal Type	Screw
	Operational Current Ie	40A
	Minimum Operating Temperature	-25°C
	Control Circuit Voltage Uc	24V dc
	Contactor Application	Motor Control
	Maximum Operating Temperature	40°C
	Width	45mm
	Standards/Approvals	EN 60947
	Length	85mm
	Depth	138mm
	Pole and Throw Configuration	3

	Select all
	Brand Eaton
	Coil Voltage 24V dc
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 17A
	Power Rating 7.5kW
	Series DILM
	Function Motor Control, Resistive Load
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NC
	Number of Auxiliary Contacts 1
	Terminal Type Screw
	Operational Current Ie 40A
	Minimum Operating Temperature -25°C
	Control Circuit Voltage Uc 24V dc
	Contactor Application Motor Control
	Maximum Operating Temperature 40°C
	Width 45mm
	Standards/Approvals EN 60947
	Length 85mm
	Depth 138mm
	Pole and Throw Configuration 3

Eaton Contactor, 3.2Nm Tightening Torque, 8kV Rated Impulse Withstand Voltage - DILM Series - 277050 DILM17-01(RDC24)

Looking for a compact control solution to safely switch your industrial loads? Check out this contactor from Eaton. It's designed especially for connecting to high-current load devices like motors and heating systems. The unit has spring-loaded contacts that make or break electrical connections to turn machines on or off. As it resists up to 8kV of surge voltage without being damaged, it reduces the risk of fire outbreaks and improves safety. Devices of this type are common features on assembly lines.

Features & Benefits

• Built-in suppressor circuit helps keep voltage levels down, prolonging the lifetime of the contacts

• Clearly labelled screw terminals for easy identification and accurate connection

• Dimensions of 85 (L) x 45 (W) x 138mm (H) make it well-suited to setups with limited space

• Mechanical lifespan of 10,000,000 operating cycles on both AC and DC networks for long-term performance

• Finger-proof and back-of-hand-proof to prevent direct contact with live parts

What's the operating temperature range of this contactor?

This unit gets on with the job in a temperature range of -25°C and +60°C, so it's the right choice for challenging settings.

Note

Eaton formerly known as Moeller
