RS PRO Base Mounted Current Transformer, 250A Input, 250:5, 5 A Output, 33 x 23mm Bore
- RS Stock No.:
- 171-8849
- Brand:
- RS PRO
54 In stock for same day dispatch
Added
Price Each
Kr. 506,77
(exc. VAT)
Kr. 633,46
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 506,77 |
| 5 - 9 | Kr. 486,53 |
| 10 - 24 | Kr. 466,18 |
| 25 - 49 | Kr. 445,94 |
| 50 + | Kr. 425,70 |
- RS Stock No.:
- 171-8849
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

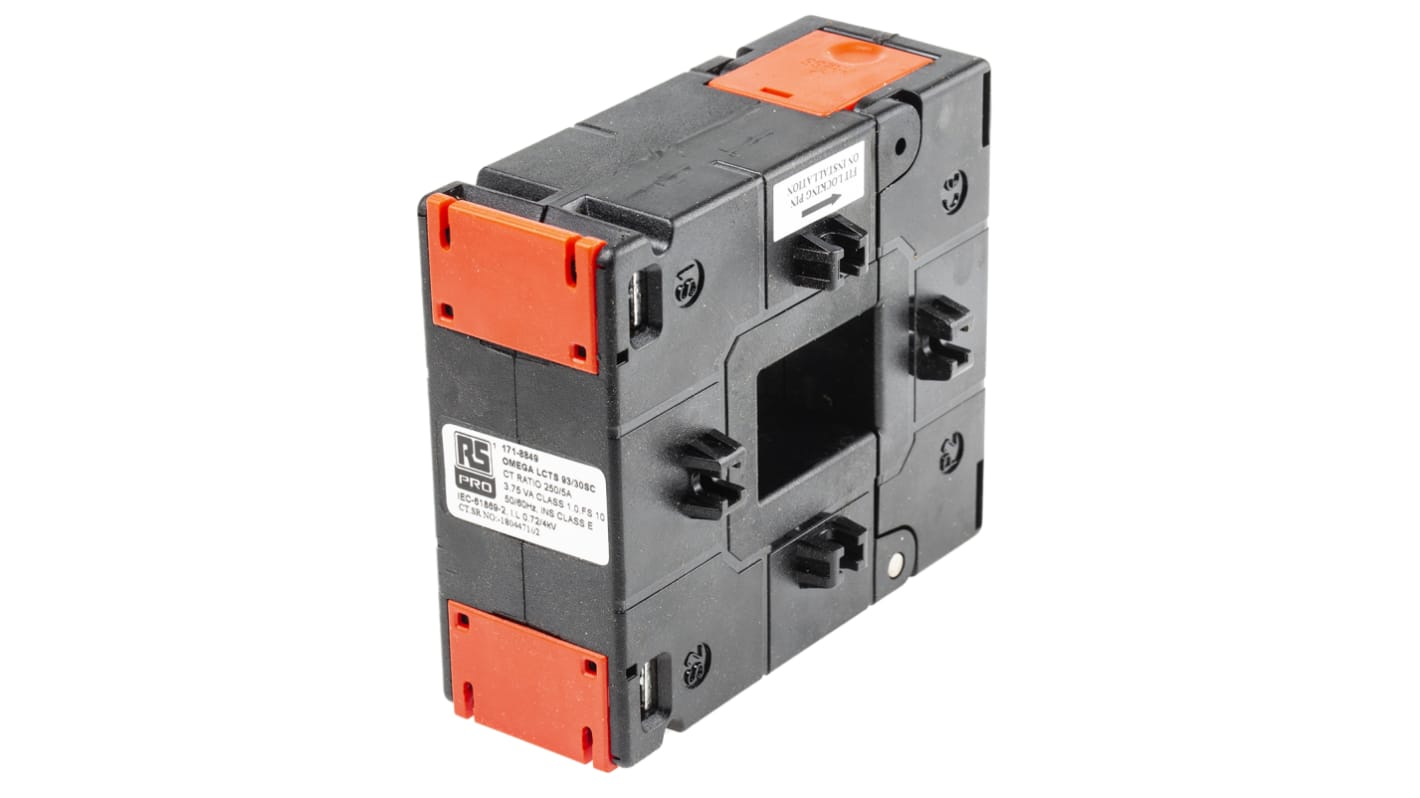

RS PRO Base Mounted Current Transformer, 33 x 23 mm diameter, 250 A Input, 5 A Output, 250:5
Accurately measure the current of an AC electrical system without disconnecting wires or interrupting power using this RS PRO base mounted current transformer. You'll find it in commercial premises such as power stations, electronics engineering facilities and engineering plants.
Made for speedy installation, you can surface or base mount this split-core transformer and wire it into your circuit in minutes. It comes in a flame retardant enclosure for protection against fire and added peace of mind. The component comes in polycarbonate casing and it has an Ingress Protection (IP) rating of IP20, so it's protected against touch with fingers, as well as dust and objects over 12 mm in size.
Made for speedy installation, you can surface or base mount this split-core transformer and wire it into your circuit in minutes. It comes in a flame retardant enclosure for protection against fire and added peace of mind. The component comes in polycarbonate casing and it has an Ingress Protection (IP) rating of IP20, so it's protected against touch with fingers, as well as dust and objects over 12 mm in size.
Features and Benefits
• Bore size of 33 x 23 mm
• Current ratio of 250:5
• Inner diameter of 33 x 23 mm
• Input current of 250 A
• Maximum temperature of +70°C
• Minimum temperature of +20°C
• Surface mounting type
• Output current of 5 A
• Overall depth of 40 mm
• Overall height of 106 mm
• Overall width of 93 mm
• Base-mounted transformer type
• Current ratio of 250:5
• Inner diameter of 33 x 23 mm
• Input current of 250 A
• Maximum temperature of +70°C
• Minimum temperature of +20°C
• Surface mounting type
• Output current of 5 A
• Overall depth of 40 mm
• Overall height of 106 mm
• Overall width of 93 mm
• Base-mounted transformer type
Specifications
Attribute | Value |
|---|---|
| Current Ratio | 250:5 |
| Bore Size | 33 x 23mm |
| Transformer Type | Base Mounted |
| Input Current | 250A |
| Output Current | 5 A |
| Overall Height | 106mm |
| Overall Width | 93mm |
| Overall Depth | 40mm |
| Minimum Temperature | +20°C |
| Maximum Temperature | +70°C |
| Mounting Type | Surface Mount |
| Dimensions | 93 x 40 x 106 mm |
