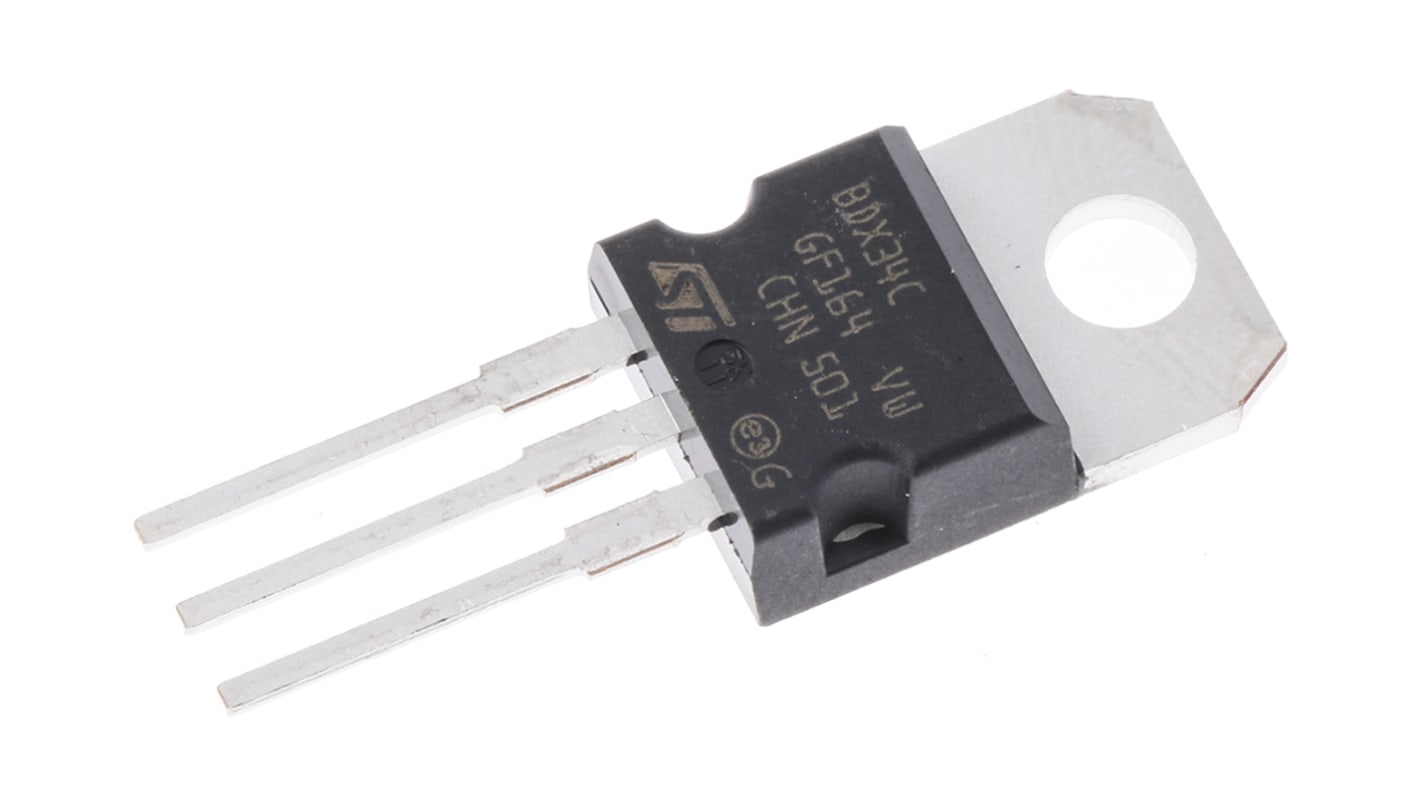

STMicroelectronics BDX34C PNP Darlington Transistor, 10 A 100 V HFE:750, 3-Pin TO-220

RS Stock No.:: 714-0509
Mfr. Part No.:: BDX34C
Brand:: STMicroelectronics

STMicroelectronics BDX34C PNP Darlington Transistor, 10 A 100 V HFE:750, 3-Pin TO-220

840 In stock for same day dispatch

240 available from Europe for delivery within 2 working day(s)

Price Each (In a Pack of 10)

Kr. 5,866

(exc. VAT)

Kr. 7,332

(inc. VAT)

Units	Per unit	Per Pack*
10 - 40	Kr. 5,866	Kr. 58,66
50 - 90	Kr. 5,511	Kr. 55,11
100 - 240	Kr. 5,233	Kr. 52,33
250 - 490	Kr. 4,922	Kr. 49,22
500 +	Kr. 4,70	Kr. 47,00

*price indicative

RS Stock No.:: 714-0509
Mfr. Part No.:: BDX34C
Brand:: STMicroelectronics

BDX33B BDX33C BDX34B BDX34C COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS Data Sheet
ESD Control Selection Guide V1

Attribute	Value
Transistor Type	PNP
Maximum Continuous Collector Current	10 A
Maximum Collector Emitter Voltage	100 V
Package Type	TO-220
Mounting Type	Through Hole
Pin Count	3
Transistor Configuration	Single
Number of Elements per Chip	1
Minimum DC Current Gain	750
Maximum Collector Base Voltage	100 V
Maximum Collector Emitter Saturation Voltage	2.5 V
Maximum Collector Cut-off Current	200µA
Length	10.4mm
Width	4.6mm
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-65 °C
Dimensions	10.4 x 4.6 x 9.15mm
Height	9.15mm

STMicroelectronics BDX34C PNP Darlington Transistor, 10 A 100 V HFE:750, 3-Pin TO-220

PNP Darlington Transistors, STMicroelectronics
