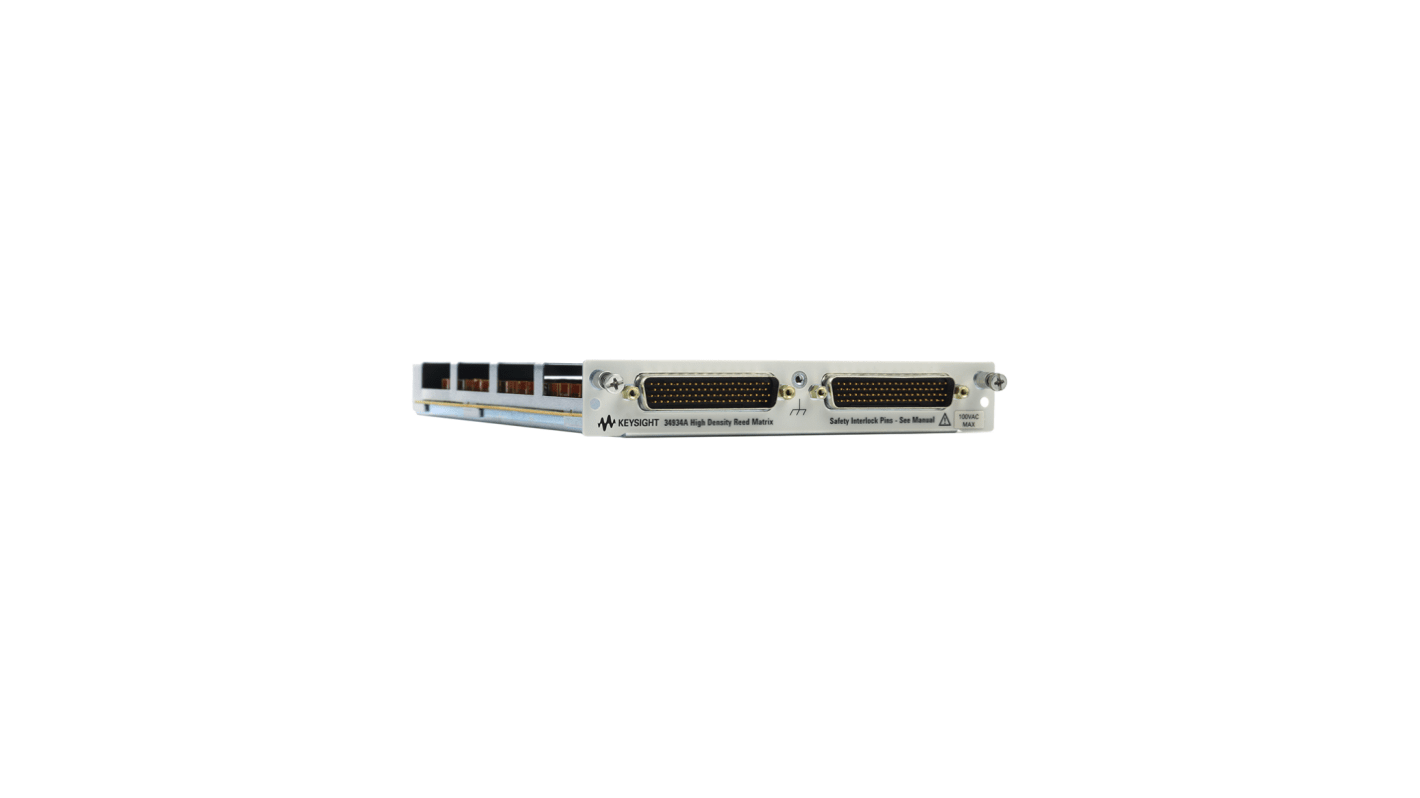

Keysight Technologies Data Acquisition Multiplexer for Use with 34980A Data Acquisition System

Give your microprocessor a helping hand with this Keysight Technologies data acquisition multiplexer. It's a smooth communicator as it lets you send numerous analogue and digital input signals to one output device, which helps to fast-track data processing. This ups your control system's overall communication efficiency. Thanks to its scan rate of 500 channels per second, you know the unit won't put the brakes on your testing and verification tasks. Automatic surge protection helps to keep your equipment safe and sound.

• Standard 78-pin D-sub connectors for quick and easy hookup to various cables
• Accommodates one- or two-wire configurations for versatility
• Integrated reed relays offer high-speed path switching for minimal signal delays
• Relay cycle counter to conveniently count and store each individual switch closure

• Design validation
• Manufacturing and quality tests
• Research and analysis
• Industrial automation

The Keysight 34934A module for the 34980A Multifunction Switch/Measure Unit offers the highest density matrix for connecting paths between your device under test and your test equipment, allowing for multiple instrument connections to multiple points on your device under test at the same time.
The matrix modules can be expanded with the row expansion kit allowing for up to 4096 cross points in a single mainframe. And with the unique row disconnect feature, you don't have to worry about the added capacitance when connecting multiple matrix modules.
This matrix is easily configured in 1- or 2-wire configurations. The optional configuration block and high density screw terminal block provide ample space for wiring and ensure robust connections to your device under test. The standard 78-pin Dsub connectors also allow for easy connection using standard Dsub cables or mass interconnect solutions.

The network device is designed for use with the Keysight Technologies 34980Amainframe (195-3167), which accepts up to eight plug-in accessories. For ease of use, you can mix and match the modules to design your own customised system.
