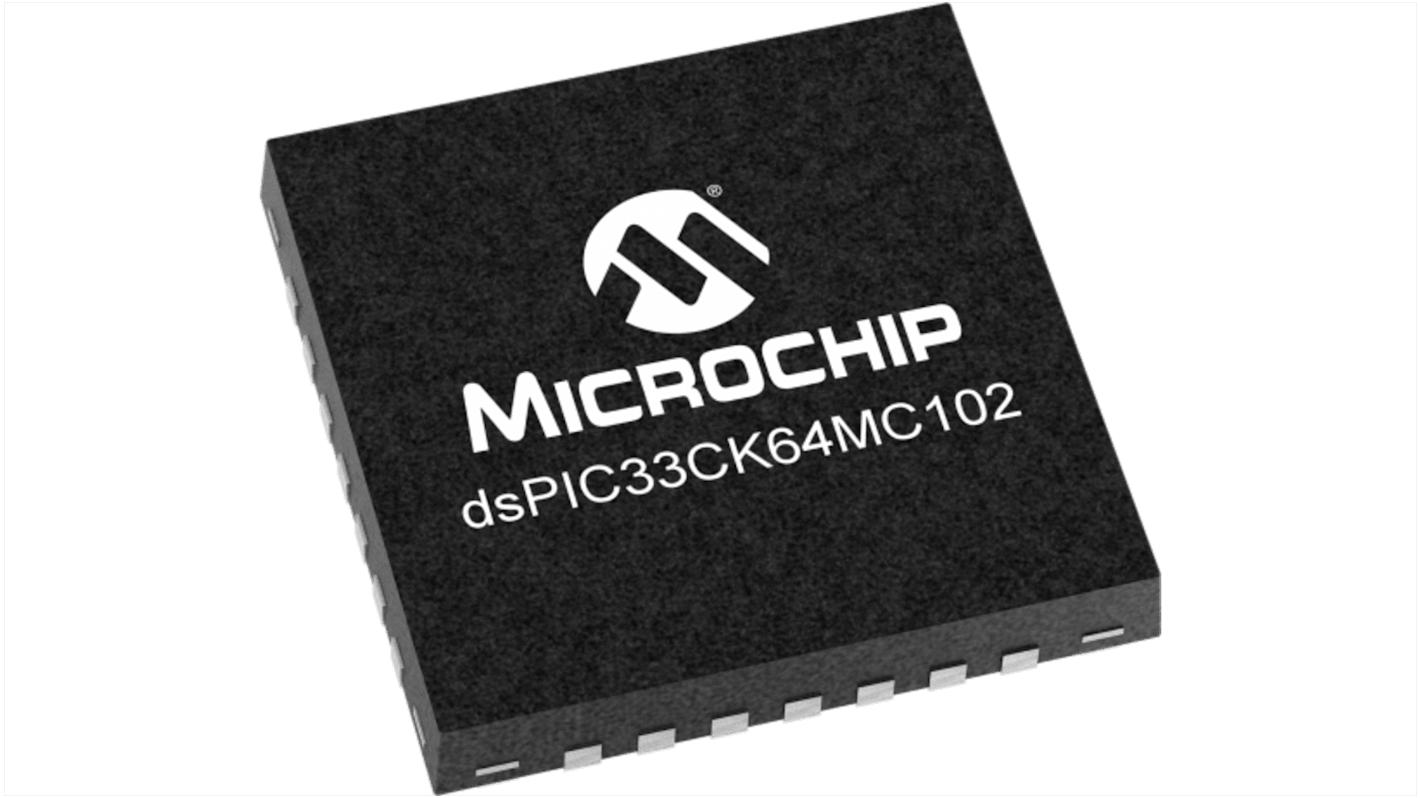

DSPIC33CK64MC102-I/2N Microchip dsPIC33CK64MC10X, 16 bit Digital Signal Processor 100 MHz 64kB FLASH 28-Pin SSOP/UQFN
- RS Stock No.:
- 215-5899
- Mfr. Part No.:
- DSPIC33CK64MC102-I/2N
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 5 units)*
Kr. 66,47
(exc. VAT)
Kr. 83,09
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Temporarily out of stock
- Shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | Kr. 13,294 | Kr. 66,47 |
| 10 + | Kr. 13,042 | Kr. 65,21 |
*price indicative
- RS Stock No.:
- 215-5899
- Mfr. Part No.:
- DSPIC33CK64MC102-I/2N
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Digital Signal Processor | |
| Maximum Clock Frequency | 100MHz | |
| Series | dsPIC33CK64MC10X | |
| Device Million Instructions per Second | 100MIPS | |
| Data Bus Width | 16bit | |
| RAM Size | 8kB | |
| Instruction Set Architecture | RISC, DSP | |
| Program Memory Size | 64kB | |
| Interface Type | FWI | |
| Program Memory Type | FLASH | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Package Type | SSOP/UQFN | |
| Pin Count | 28 | |
| Maximum Operating Temperature | 150°C | |
| Length | 6mm | |
| Standards/Approvals | No | |
| Height | 0.5mm | |
| Width | 6 mm | |
| ADC Resolution | 12bit | |
| Automotive Standard | AEC-Q100 | |
| Number of PWM Units | 4 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Digital Signal Processor | ||
Maximum Clock Frequency 100MHz | ||
Series dsPIC33CK64MC10X | ||
Device Million Instructions per Second 100MIPS | ||
Data Bus Width 16bit | ||
RAM Size 8kB | ||
Instruction Set Architecture RISC, DSP | ||
Program Memory Size 64kB | ||
Interface Type FWI | ||
Program Memory Type FLASH | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Package Type SSOP/UQFN | ||
Pin Count 28 | ||
Maximum Operating Temperature 150°C | ||
Length 6mm | ||
Standards/Approvals No | ||
Height 0.5mm | ||
Width 6 mm | ||
ADC Resolution 12bit | ||
Automotive Standard AEC-Q100 | ||
Number of PWM Units 4 | ||
The Microchip dsPIC33CK64MC10X family of Digital Signal Controllers (DSCs) features a single 100 MIPS dsPIC DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of automotive, motor control, high-performance and robust applications.
Functional Safety support (ISO26262)
Up to 64 Kbytes of Program Flash with ECC and Fault Injection testing feature
Up to 8 Kbytes of Data SRAM with Memory Built in Self-Test (MBIST)
Four sets of interrupt context saving registers, including ACC and CPU status for fast interrupt handling
Four independent PWM pairs (Eight total outputs) with up to 2 ns resolution
Up to three op amps with internal connection to ADC Module
