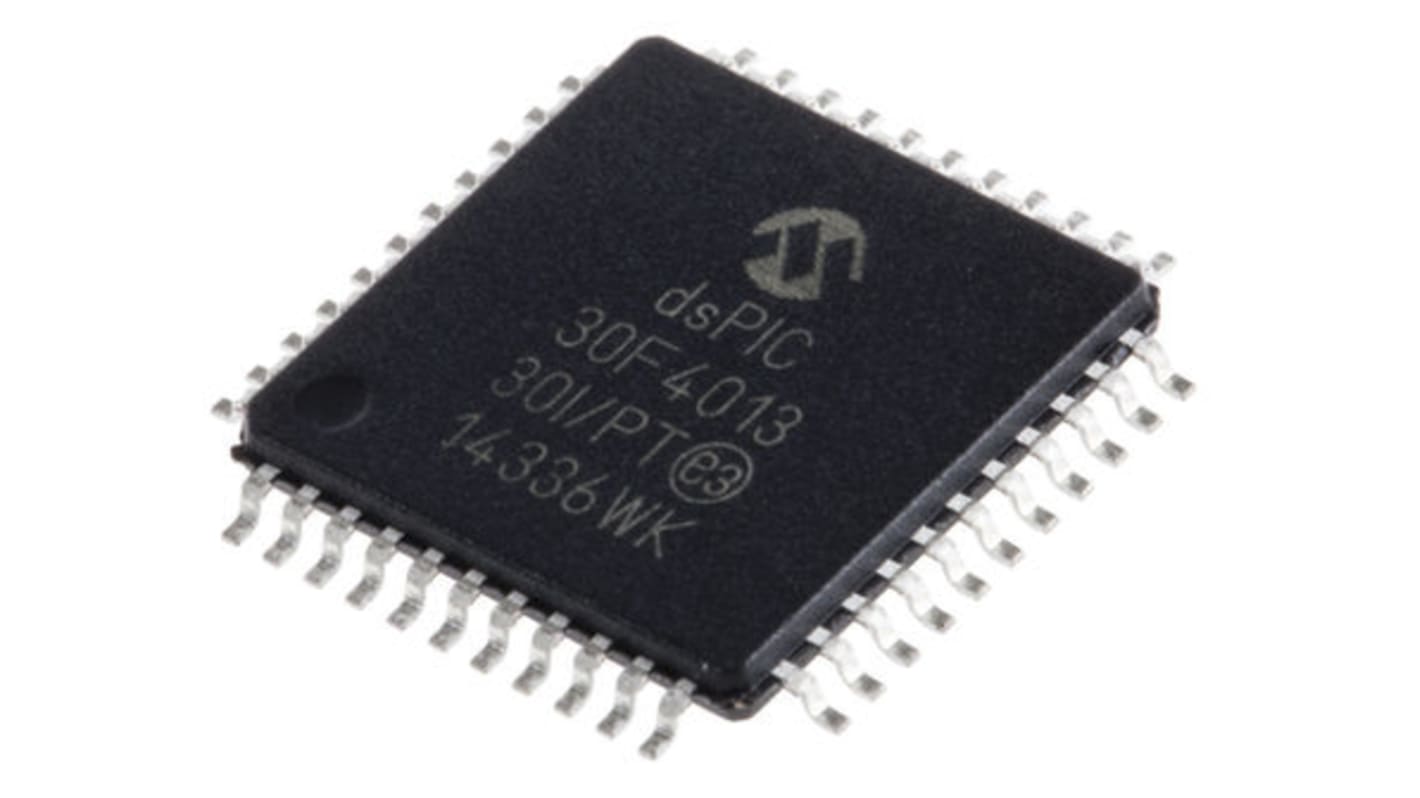

Microchip dsPIC30F, 16 bit Digital Signal Processor 30 MIPS 48kB FLASH 44-Pin TQFP
- RS Stock No.:
- 889-5281
- Mfr. Part No.:
- dsPIC30F4013-30I/PT
- Brand:
- Microchip
Subtotal (1 tray of 160 units)*
Kr. 10 533,60
(exc. VAT)
Kr. 13 167,04
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 1 120 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 160 + | Kr. 65,835 | Kr. 10 533,60 |
*price indicative
- RS Stock No.:
- 889-5281
- Mfr. Part No.:
- dsPIC30F4013-30I/PT
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Clock Frequency | 30MIPS | |
| Product Type | Digital Signal Processor | |
| Series | dsPIC30F | |
| Device Million Instructions per Second | 30MIPS | |
| Data Bus Width | 16bit | |
| RAM Size | 2kB | |
| Instruction Set Architecture | RISC | |
| Program Memory Size | 48kB | |
| Program Memory Type | FLASH | |
| Minimum Supply Voltage | 2.5V | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 5.5V | |
| Number of ADCs | 1 | |
| Package Type | TQFP | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 44 | |
| Maximum Operating Temperature | 85°C | |
| Length | 10mm | |
| Height | 1.05mm | |
| Standards/Approvals | No | |
| PWM Resolution | 16bit | |
| Number of PWM Units | 4 | |
| ADC Channels | 13 | |
| Automotive Standard | No | |
| ADC Resolution | 12bit | |
| Timer Resolution | 16bit | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Clock Frequency 30MIPS | ||
Product Type Digital Signal Processor | ||
Series dsPIC30F | ||
Device Million Instructions per Second 30MIPS | ||
Data Bus Width 16bit | ||
RAM Size 2kB | ||
Instruction Set Architecture RISC | ||
Program Memory Size 48kB | ||
Program Memory Type FLASH | ||
Minimum Supply Voltage 2.5V | ||
Mount Type Surface | ||
Maximum Supply Voltage 5.5V | ||
Number of ADCs 1 | ||
Package Type TQFP | ||
Minimum Operating Temperature -40°C | ||
Pin Count 44 | ||
Maximum Operating Temperature 85°C | ||
Length 10mm | ||
Height 1.05mm | ||
Standards/Approvals No | ||
PWM Resolution 16bit | ||
Number of PWM Units 4 | ||
ADC Channels 13 | ||
Automotive Standard No | ||
ADC Resolution 12bit | ||
Timer Resolution 16bit | ||
dsPIC30F Digital Signal Controller
The dsPIC30F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The dsPIC30F is best suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate SMPS peripherals, motor control peripherals and a Codec interface that enable efficient digital power converters, advanced motor control algorithms and speech and audio applications. Small package DSCs with high performance ADC are well suited for smart sensing applications.
