Schneider Electric Harmony Relay RSL Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole

View this category

Subtotal (1 unit)*

Kr. 218,39

(exc. VAT)

Kr. 272,99

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 39 unit(s) ready to ship
  • Plus 136 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 218,39

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
179-9443
Distrelec Article No.:
301-12-603
Mfr. Part No.:
RSL1PRBU
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Coil Voltage

24V ac/dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

Harmony Relay RSL

Number of Poles

1

Maximum Input Voltage

28.8V

Minimum Input Voltage

21.6V

Switching Voltage

277V

Terminal Type

Cage Clamp

Depth

78.7mm

Height

101mm

Length

6.2mm

Contact Material

Silver Alloy

Better World Verification

Green Premium

Better World Product

Yes

Relay Switching Classification

Slimline Relay

Standards Met

CSA, UL

Special Features

LED Indicator, Slim Relay

Dimensions

101 x 78.6 x 6.2mm

Maximum Operating Temperature

+55°C

Input Voltage Range

21.6 → 28.8V

Life

10000000 cycles

Operating Temperature Range

-40 °C → +55°C

Relay Type

Interface Relay

Accessory Type

Interface Relay

Minimum Operating Temperature

-40°C

COO (Country of Origin):
CN

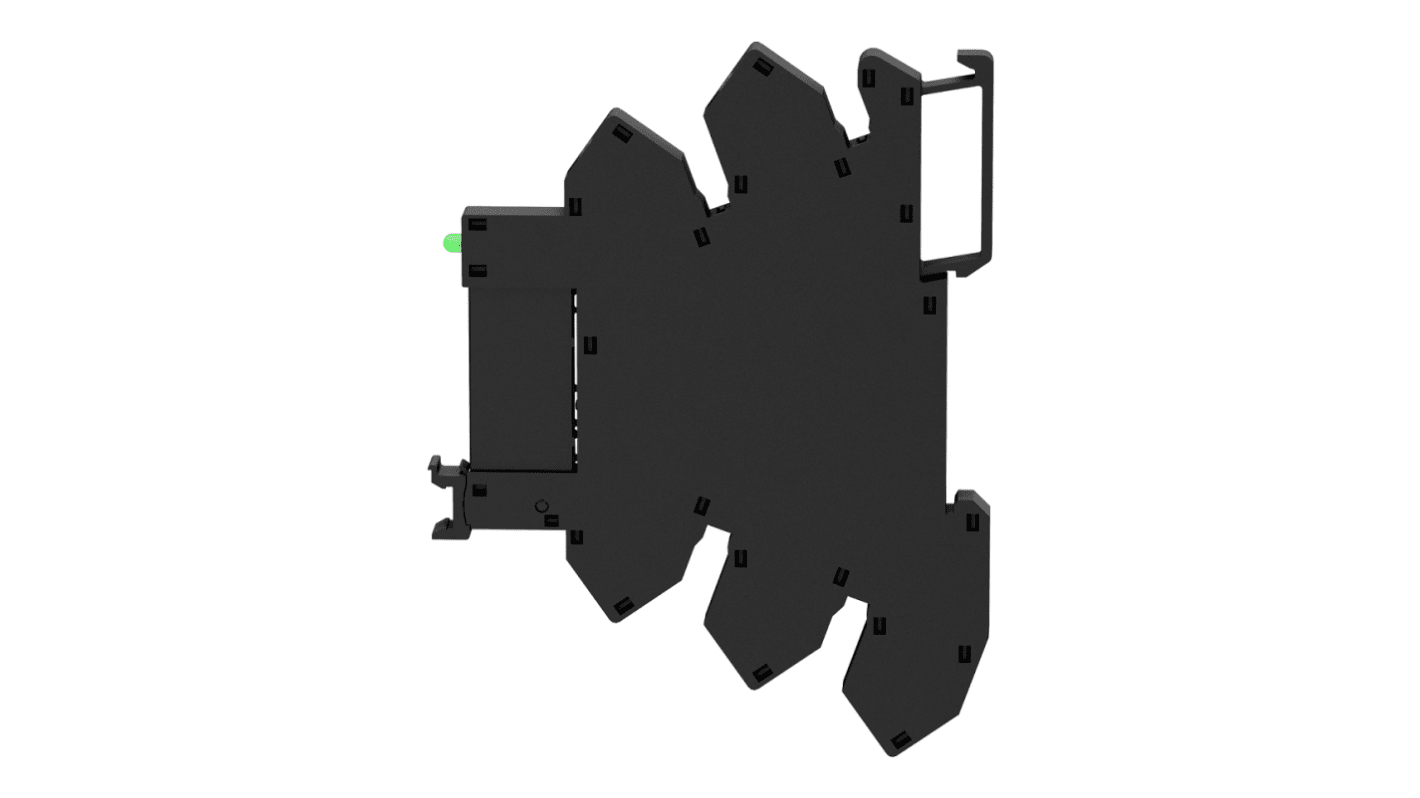

Schneider Electric Harmony Relay RSL Series Interface Relay, 24V AC/DC Coil Voltage, SPDT Contact Configuration - RSL1PRBU


This interface relay is designed for dependable performance in automation and control circuits. It integrates seamlessly within various systems, ensuring effective communication and control between components. Its SPDT configuration supports a range of applications, making it suitable for electrical and mechanical industries.

Features & Benefits


• Operates with a control voltage of 24V DC for effective performance

• Slimline design optimises installation space on DIN rails

• High cycle life supports up to 10 million operations for extended service

• Includes LED indicators for clear visibility of operational status

• Equipped with cage clamp terminals for secure and straightforward connections

• Rated insulation voltage of 250V ensures safe operation in diverse conditions

Applications


• Utilised in automation control systems for dependable switching

• Appropriate for various electrical installations requiring compact relays

• Suitable for machinery control in industrial environments

• Commonly used in panel building for optimal space utilisation

How does it handle voltage variations within its specified range?


It operates effectively within an input voltage range of 21.6V to 28.8V, accommodating minor fluctuations while maintaining functionality.

What type of loads can it handle?


This relay has a maximum switching capacity of 1500VA and 150W, making it suitable for both AC and DC loads within specified limits.

Can it be used in extreme temperature conditions?


Yes, it is designed to operate between -40°C and +55°C, ensuring reliability in challenging environmental conditions.

What is the minimum switching current required for proper operation?


The minimum switching current is 100mA, which is necessary for adequate performance and reliability.

Is it easy to install in existing setups?


The relay features flat pins for PCB-type connections and can be mounted directly onto a 35mm DIN rail, facilitating straightforward integration into current systems.
