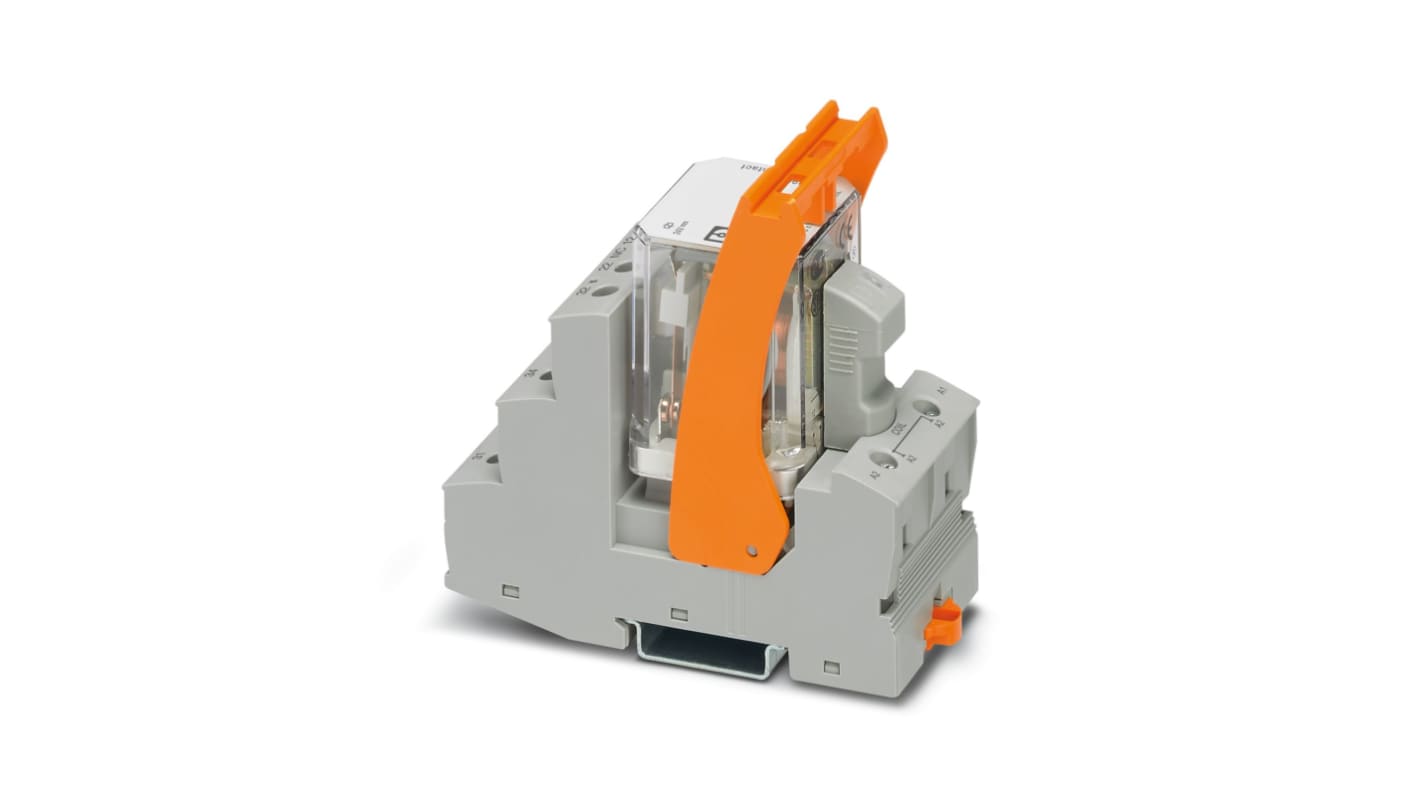

Phoenix Contact RIFLINE complete Series Relay Module, DIN Rail, 24 V dc Coil, 3PDT, 56 mA
- RS Stock No.:
- 270-9470
- Mfr. Part No.:
- 2903288
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
Kr. 323,52
(exc. VAT)
Kr. 404,40
(inc. VAT)
- RS Stock No.:
- 270-9470
- Mfr. Part No.:
- 2903288
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Relay Module | |
| Coil Voltage | 24 V dc | |
| Contact Configuration | 3PDT | |
| Mount Type | DIN Rail | |
| Series | RIFLINE complete | |
| Terminal Type | Screw | |
| Switching Current | 10 mA | |
| Switching AC Voltage | 440 V ac | |
| Coil Type | Monostable | |
| Switching DC Voltage | 250 V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 56 mA | |
| Maximum Operating Temperature | 60°C | |
| Contact Material | Silver Nickel Alloy | |
| Width | 44 mm | |
| Length | 91mm | |
| Standards/Approvals | EN 60068-2-60, IEC 60947-5-1, UL 508, CSA, DNV GL, EAC | |
| Height | 96mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Relay Module | ||
Coil Voltage 24 V dc | ||
Contact Configuration 3PDT | ||
Mount Type DIN Rail | ||
Series RIFLINE complete | ||
Terminal Type Screw | ||
Switching Current 10 mA | ||
Switching AC Voltage 440 V ac | ||
Coil Type Monostable | ||
Switching DC Voltage 250 V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Current 56 mA | ||
Maximum Operating Temperature 60°C | ||
Contact Material Silver Nickel Alloy | ||
Width 44 mm | ||
Length 91mm | ||
Standards/Approvals EN 60068-2-60, IEC 60947-5-1, UL 508, CSA, DNV GL, EAC | ||
Height 96mm | ||
RoHS Status: Exempted
- COO (Country of Origin):
- CN
The Phoenix Contact preassembled relay module with screw connection consist of relay base, power contact relay, plug in display or interference suppression module and retaining bracket. It has easy wiring due to push in connection technology.
Monostable drive and function
