Phoenix Contact EMG 10-REL/KSR-G 24/1-LC Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPST, 1-Pole
- RS Stock No.:
- 308-1282
- Mfr. Part No.:
- 2942108
- Brand:
- Phoenix Contact
1 In stock for same day dispatch
71 available from Europe for delivery within 2 working day(s).
Added
Price Each
Kr. 408,65
(exc. VAT)
Kr. 510,81
(inc. VAT)
Units | Per unit |
1 - 4 | Kr. 408,65 |
5 - 11 | Kr. 396,22 |
12 + | Kr. 383,35 |
- RS Stock No.:
- 308-1282
- Mfr. Part No.:
- 2942108
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact EMG Non-Latching Relays

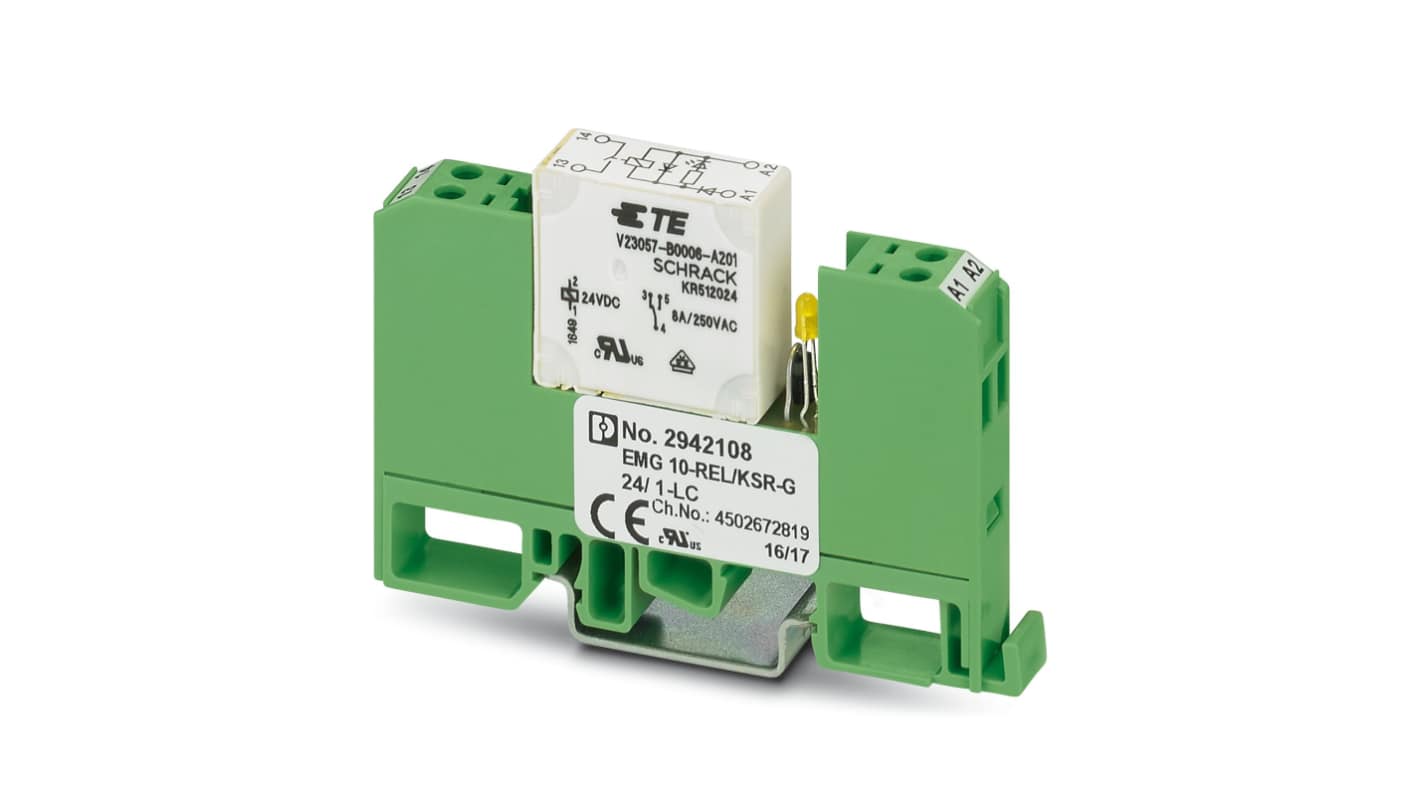

EMG 10-REL/KSR-G 24/ 1-LC Relay Module - 2942108
The 2942108 from Phoenix Contact is a miniature switching relay (pre-soldered into the unit) that is mountable on a DIN rail. The relay is rated up to 24 V DC, with a response time of 7ms & release of just 11ms. This module also comes with a yellow LED on the front to help you easily diagnose if the module is getting the correct voltage. The contact is a single contact, 1N/O contact.
Connecting wires to the unit is effortless, with the module featuring a screw connection. Not to mention, this is a miniature unit with a width of only 10.6mm making it fit in any rack or can't box with ease.
Connecting wires to the unit is effortless, with the module featuring a screw connection. Not to mention, this is a miniature unit with a width of only 10.6mm making it fit in any rack or can't box with ease.
Features and benefits:
- SPNO relay (Single-pole normally open)
- Safe isolation according to DIN EN 50178 between coil and contact
- Integrated input circuit and interference suppression circuit
- Pre-soldered relay to make to installation process that much easier
- Small width & DIN rail mountable means it will sit in any racking or cabinet with ease
- Screw connection method (M3 screw) for the wires - 8mm stripping needed
- Reverse polarity protection & free-wheeling diode damping diode
- Yellow LED on the unit provides easy to see voltage display
- Single contact - 1 N/O contact
- Operating temperatures of -20 °C ... 40 °C with an IP20 protection level
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | SPST |
Mounting Type | DIN Rail |
Number of Poles | 1 |
Terminal Type | Screw |
Depth | 10.6mm |
Height | 53.5mm |
Length | 75mm |
Series | EMG 10-REL/KSR-G 24/1-LC |
Contact Material | Silver Alloy |
Maximum Operating Temperature | +40°C |
Minimum Operating Temperature | -20°C |
