RS PRO General Purpose Momentary Foot Switch - Thermoplastic Case Material, SP-CO, 1.75 A Contact Current, 24V Contact
- RS Stock No.:
- 808-6995
- Brand:
- RS PRO
58 In stock for same day dispatch
Added
Price Each
Kr. 758,70
(exc. VAT)
Kr. 948,38
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 758,70 |
- RS Stock No.:
- 808-6995
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

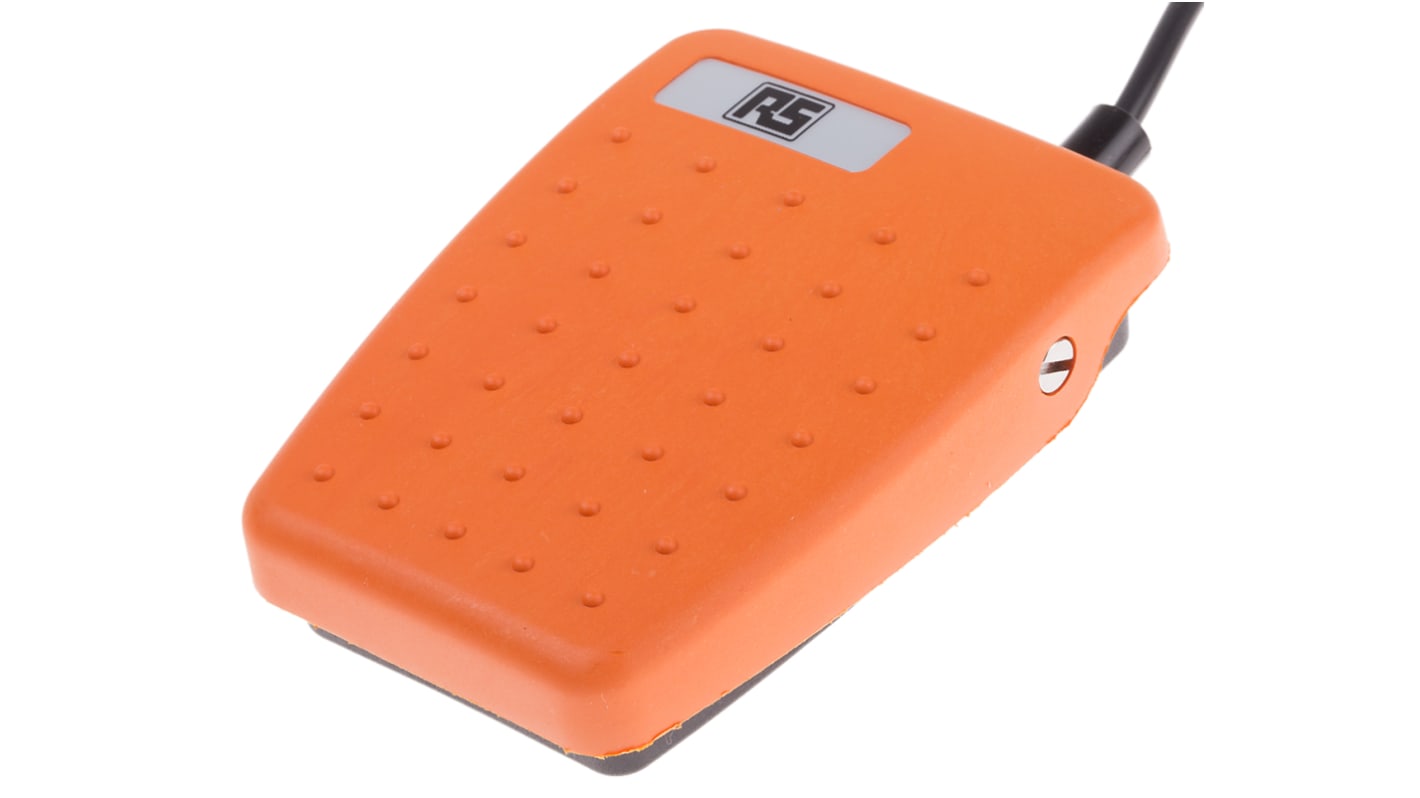

RS Low Profile Waterproof Industrial Footswitch
This range of waterproof foot switches from RS is created with a tough, glass filled plastic body providing an IPX7 level of ingress protection and low profile enclosure, making it perfect for use within harsh industrial environments. These foot switches are designed to be waterproof allowing a wider applications in surroundings where contact with water is likely.
Waterproof switch
Low profile enclosure
Single pole changeover contacts
Straight 2 meter cable
IPX7 rating
Low profile enclosure
Single pole changeover contacts
Straight 2 meter cable
IPX7 rating
Specifications
Attribute | Value |
|---|---|
| Foot Switch Type | Momentary Foot Switch |
| Contact Configuration | SP-CO |
| Switch Operation | Momentary |
| Case Material | Thermoplastic |
| Contact Voltage Rating AC | 24V |
| Contact Voltage Rating DC | 24V |
| Contact Current Rating | 1.75 A |
| Switch Environment | General Purpose |
| IP Rating | IPX7 |
| Guard Cover | No |
| Contact Material | Silver |
| Colour | Orange |
| Standards Met | ANSI/AAMI ES60601-1:2005/(R)2012, CSA C22.2 No. 60601-1:14, EN 60601-1:2006, EN 60950, UL 60601-1:2005, UL File No E353500 |
| Dimensions | 96 x 72 x 26mm |
| Length | 96mm |
| Width | 72mm |
| Height | 26mm |
