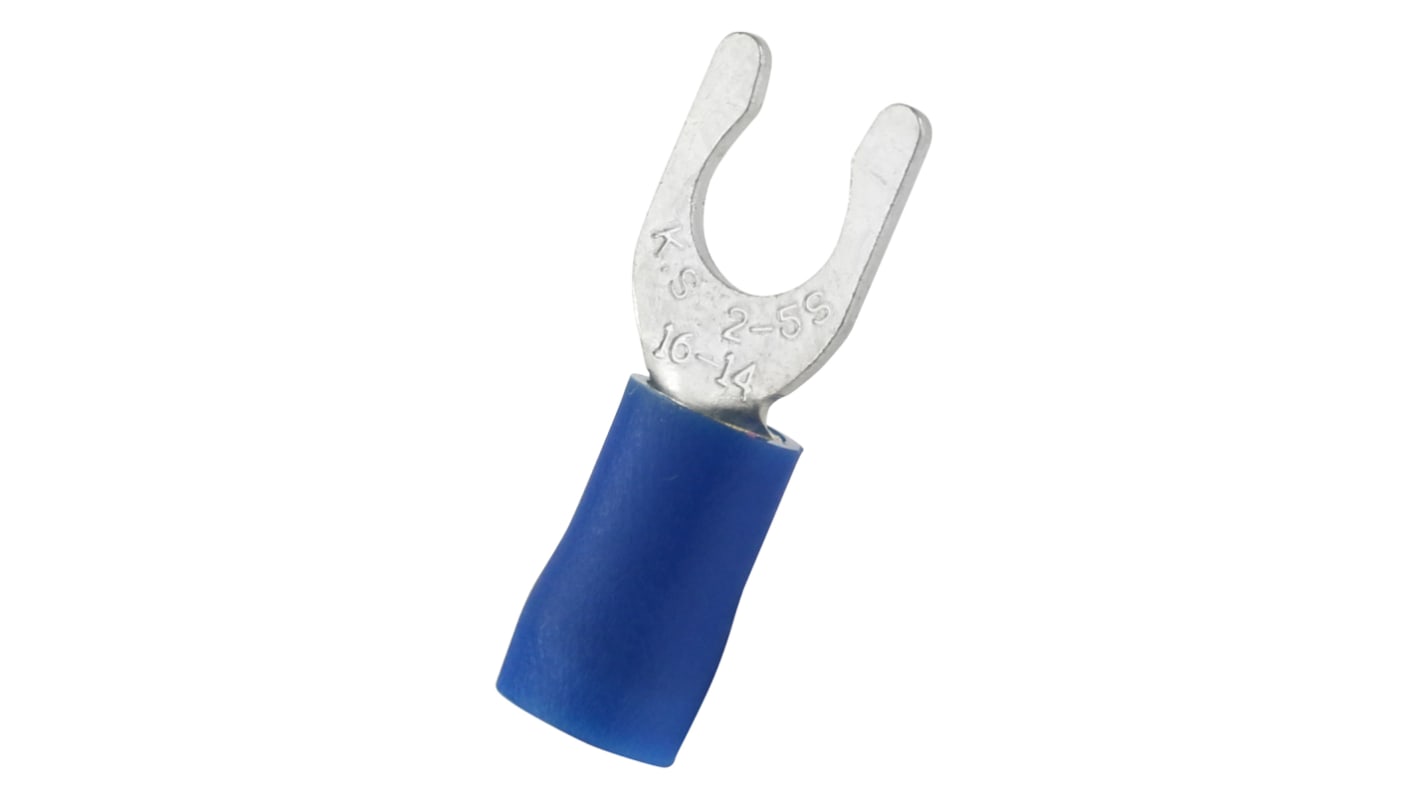

RS PRO Insulated Crimp Spade Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 5.3mm Stud Size Vinyl, Blue
- RS Stock No.:
- 178-8361
- Brand:
- RS PRO
1200 In stock for same day dispatch
Added
Price Each (In a Bag of 100)
Kr. 1,235
(exc. VAT)
Kr. 1,544
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | Kr. 1,235 | Kr. 123,50 |
| 1000 - 1900 | Kr. 1,129 | Kr. 112,90 |
| 2000 - 4900 | Kr. 1,033 | Kr. 103,30 |
| 5000 - 9900 | Kr. 0,949 | Kr. 94,90 |
| 10000 + | Kr. 0,864 | Kr. 86,40 |
| *price indicative | ||
- RS Stock No.:
- 178-8361
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO Insulated spade connector has overall length of 21.5mm with thickness of 0.8mm and 600V of voltage rating.
Colour: Blue
Maximum Temperature Range: 105°C
Maximum Temperature Range: 105°C
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Width | 8.1mm |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | 5.3mm |
| Colour | Blue |
| Overall Length | 21.5mm |
| Contact Material | Copper |
| Thickness | 0.8mm |
