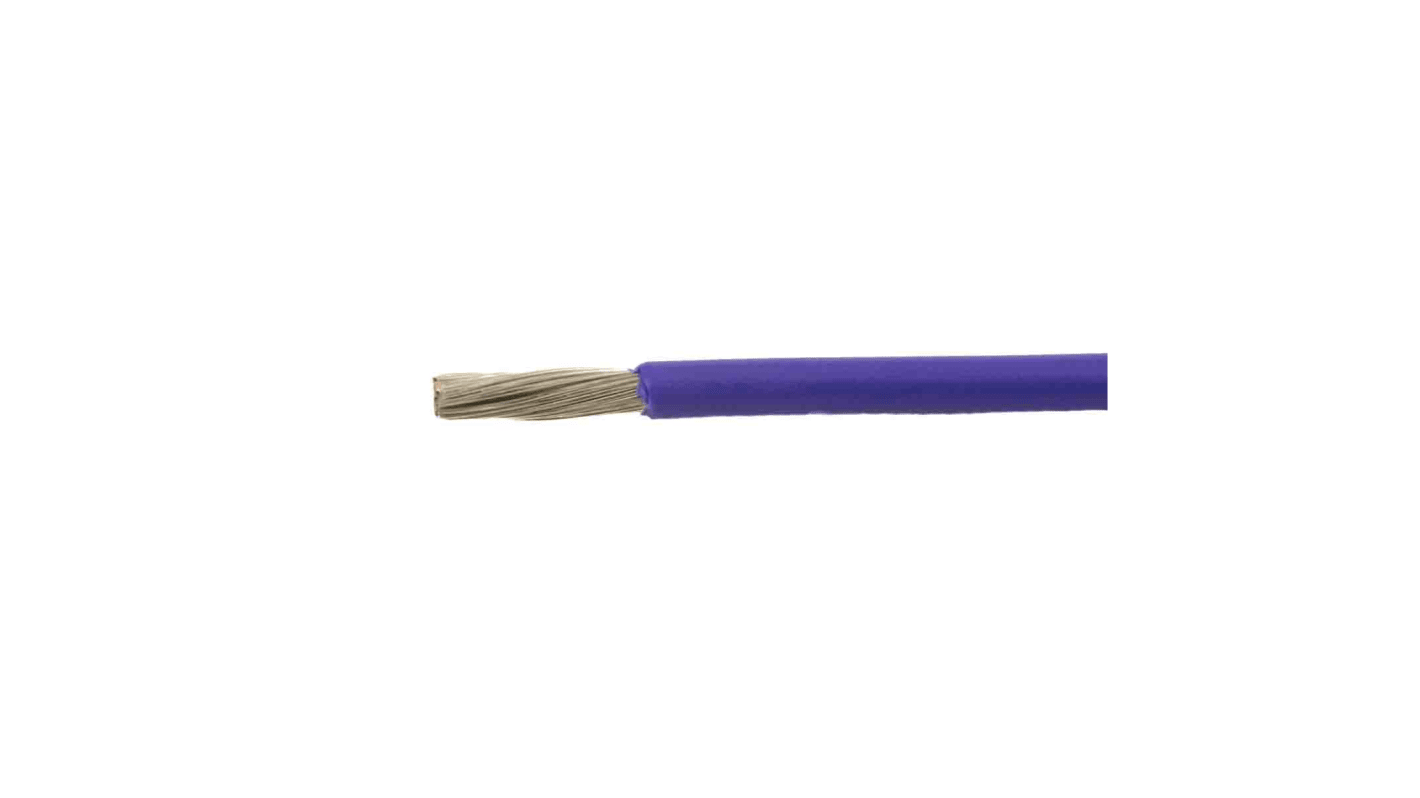

Alpha Wire Ecogen Ecowire Metric Series Purple 0.25 mm² Hook Up Wire, 24 AWG, 32, 50 m, Polyphenylene Ether, 67025 VI033
- RS Stock No.:
- 201-2733
- Mfr. Part No.:
- 67025 VI033
- Brand:
- Alpha Wire
Subtotal (1 reel of 100 metres)*
Kr. 949,80
(exc. VAT)
Kr. 1 187,20
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 100 + | Kr. 9,498 | Kr. 949,80 |
*price indicative
- RS Stock No.:
- 201-2733
- Mfr. Part No.:
- 67025 VI033
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.25 mm² | |
| Jacket Colour | Purple | |
| American Wire Gauge | 24AWG | |
| Core Strands | 32 | |
| Cable Length | 50m | |
| Voltage | 600 V | |
| Outside Diameter | 0.64 mm | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Stranded | |
| Jacket Material | Polyphenylene Ether | |
| Standards/Approvals | CE, CSA, UL | |
| Sub Type | Hookup Wire | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant | |
| Series | Ecogen Ecowire Metric | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.25 mm² | ||
Jacket Colour Purple | ||
American Wire Gauge 24AWG | ||
Core Strands 32 | ||
Cable Length 50m | ||
Voltage 600 V | ||
Outside Diameter 0.64 mm | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Cable Type Stranded | ||
Jacket Material Polyphenylene Ether | ||
Standards/Approvals CE, CSA, UL | ||
Sub Type Hookup Wire | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant | ||
Series Ecogen Ecowire Metric | ||
The Alpha Wire 50m violet 67025 hook-up wire derives its advantage from modified polyphenylene ether insulation. The cross sectional area of the wire is 0.25mm² and it is inherently lighter and more durable than PVC.
Temperature range from -40°C to 105°C
Voltage rating 600Vrms
