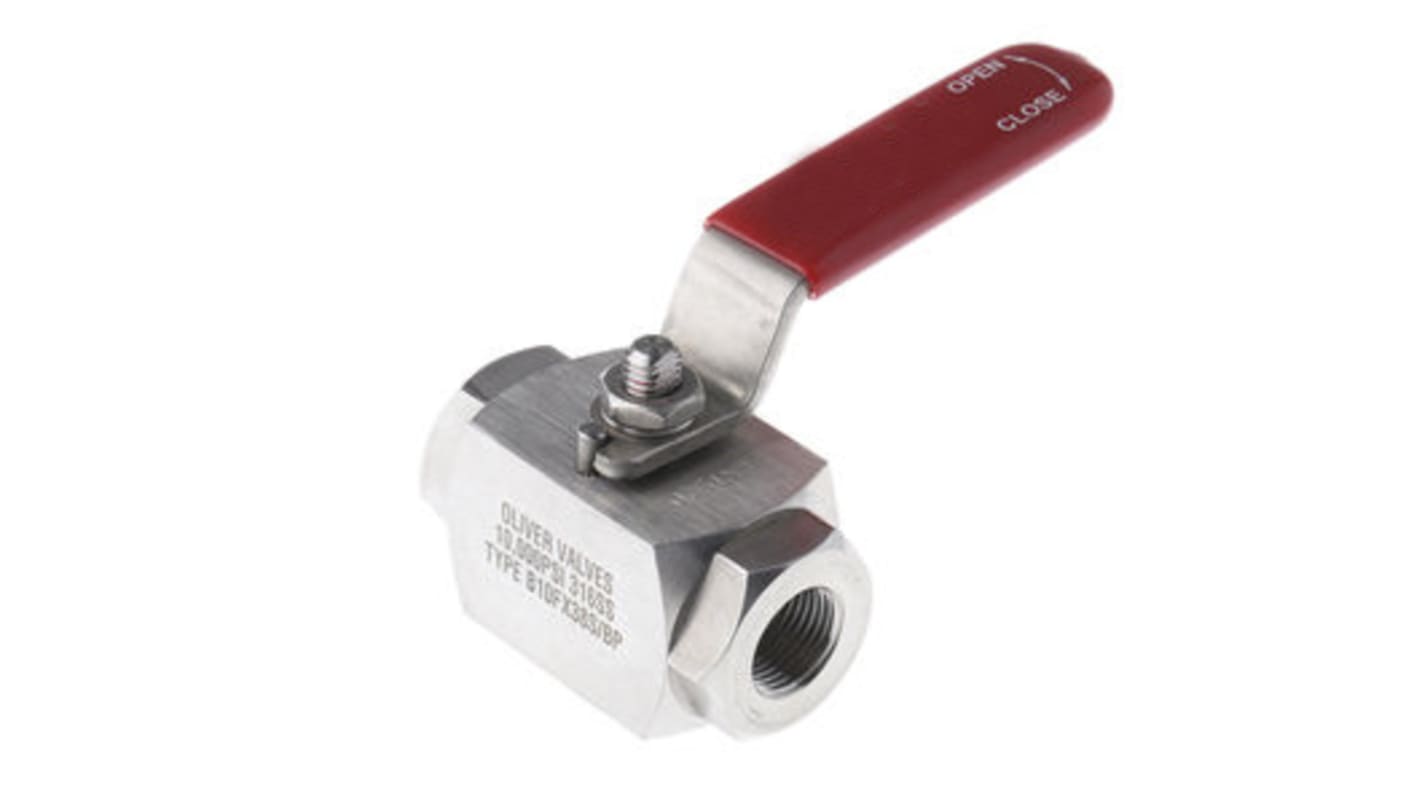

RS PRO Stainless Steel Hydraulic Ball Valve G 3/8
- RS Stock No.:
- 324-5026
- Brand:
- RS PRO
10 In stock for same day dispatch
Added
Price Each
Kr. 1 207,47
(exc. VAT)
Kr. 1 509,34
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 1 207,47 |
| 5 - 9 | Kr. 1 169,96 |
| 10 + | Kr. 1 132,56 |
- RS Stock No.:
- 324-5026
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Stainless Steel Ball Valve
316 stainless steel 2 way ball valves with 3 ball valve options. Valves can be locked in either the open or closed position, panel mount which is cost effective and there is also a firesafe/antistatic option.
Reduced bore design
Available in BSP and NPT sizes
Suitable for use with water and oil
PTFE seals
Available in BSP and NPT sizes
Suitable for use with water and oil
PTFE seals
Specifications
Attribute | Value |
|---|---|
| Manufacturer Series | B6BI |
| Number of Ports | 2-way |
| Connection Port Thread | G 3/8 |
| Body Material | Stainless Steel |
| Seal Material | PTFE (Stem Seal), Teflon/kel-F (Ball Seal) |
| Maximum Operating Pressure | 6000 psi |
| Thread Standard | G |
| Thread Size | 3/8in |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
