Parker Synthetic Rubber Hydraulic Hose Assembly, 420 bar Max Pressure
- RS Stock No.:
- 174-632
- Mfr. Part No.:
- 797TC-8
- Brand:
- Parker
Subtotal (1 reel of 40 metres)*
Kr. 15 023,92
(exc. VAT)
Kr. 18 779,90
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | Kr. 15 023,92 | Kr. 375,598 |
*price indicative
- RS Stock No.:
- 174-632
- Mfr. Part No.:
- 797TC-8
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Product Type | Hydraulic Hose Assembly | |
| Connection Size A | 1/2 in | |
| Inside Diameter | 12.7mm | |
| Maximum Operating Pressure | 420 bar | |
| Outside Diameter | 21.1mm | |
| Inner Hose Material | Rubber | |
| Reinforcing Material | Steel | |
| Cover Material | Synthetic Rubber | |
| Minimum Operating Temperature | -40°F | |
| Maximum Operating Temperature | 125°C | |
| Series | 77 | |
| Standards/Approvals | Type DC, ISO 18752, MSHA TC, ST & CP covers only | |
| Select all | ||
|---|---|---|
Brand Parker | ||
Product Type Hydraulic Hose Assembly | ||
Connection Size A 1/2 in | ||
Inside Diameter 12.7mm | ||
Maximum Operating Pressure 420 bar | ||
Outside Diameter 21.1mm | ||
Inner Hose Material Rubber | ||
Reinforcing Material Steel | ||
Cover Material Synthetic Rubber | ||
Minimum Operating Temperature -40°F | ||
Maximum Operating Temperature 125°C | ||
Series 77 | ||
Standards/Approvals Type DC, ISO 18752, MSHA TC, ST & CP covers only | ||
RoHS Status: Exempted

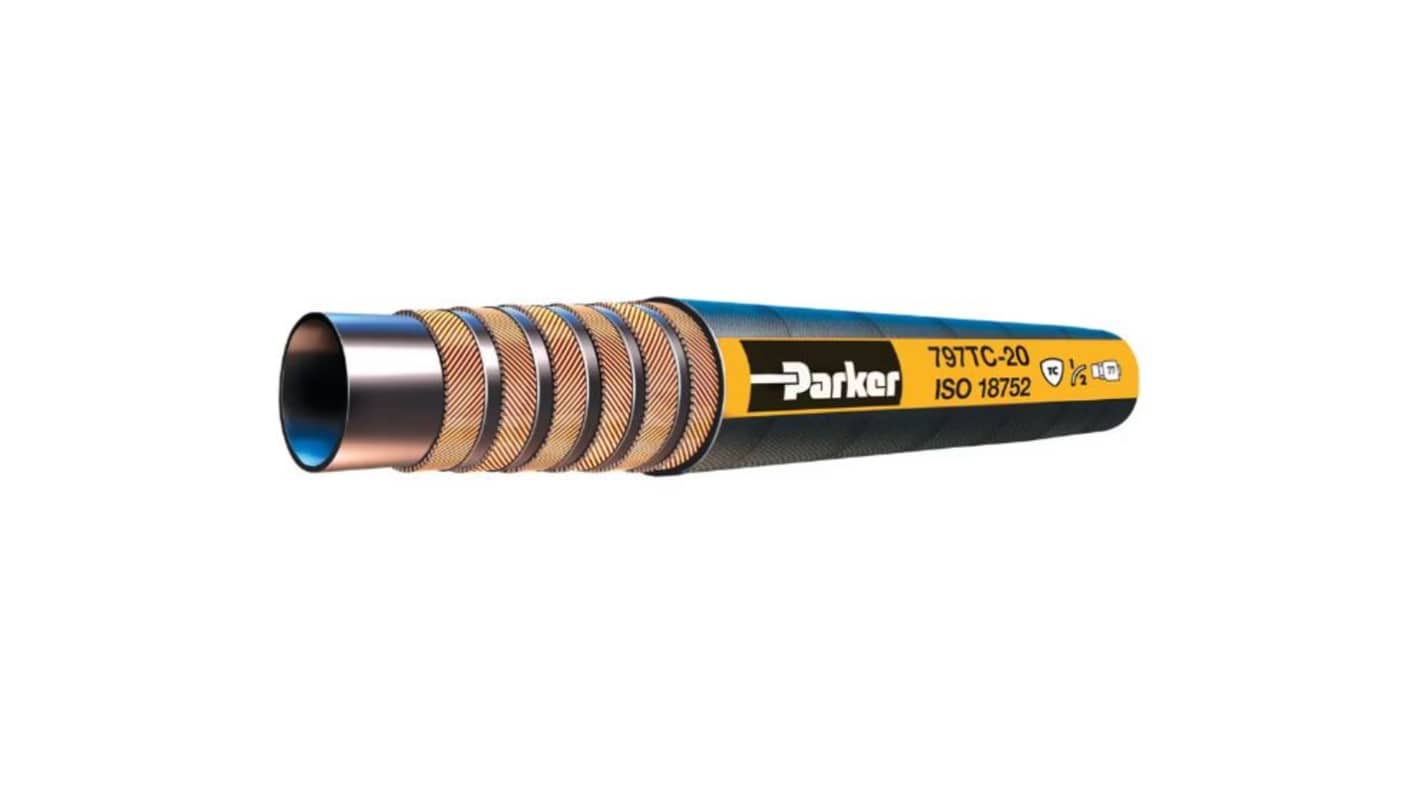

The Parker Hydraulic Constant Working Pressure Hose designed to deliver consistency and reliability. The 797 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 797 hose is designed, built and tested to the ISO 18752 performance specifications.
Half SAE bend radius for ease of installation and low force to flex
30% smaller O.D. compared to standard SAE spiral hose
6000 PSI constant working pressure in all sizes
Less hose weight than SAE spiral
