NEWHAVEN DISPLAY INTERNATIONAL NHD-C0216CiZ-FSW-FBW-3V3 NHD LCD LCD Display, White on White, 2 Rows by 16 Characters,
- RS Stock No.:
- 264-4041
- Mfr. Part No.:
- NHD-C0216CiZ-FSW-FBW-3V3
- Brand:
- NEWHAVEN DISPLAY INTERNATIONAL
58 In stock for same day dispatch
Added
Price Each
Kr. 129,54
(exc. VAT)
Kr. 161,92
(inc. VAT)
Units | Per unit |
1 - 4 | Kr. 129,54 |
5 + | Kr. 119,54 |
- RS Stock No.:
- 264-4041
- Mfr. Part No.:
- NHD-C0216CiZ-FSW-FBW-3V3
- Brand:
- NEWHAVEN DISPLAY INTERNATIONAL
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

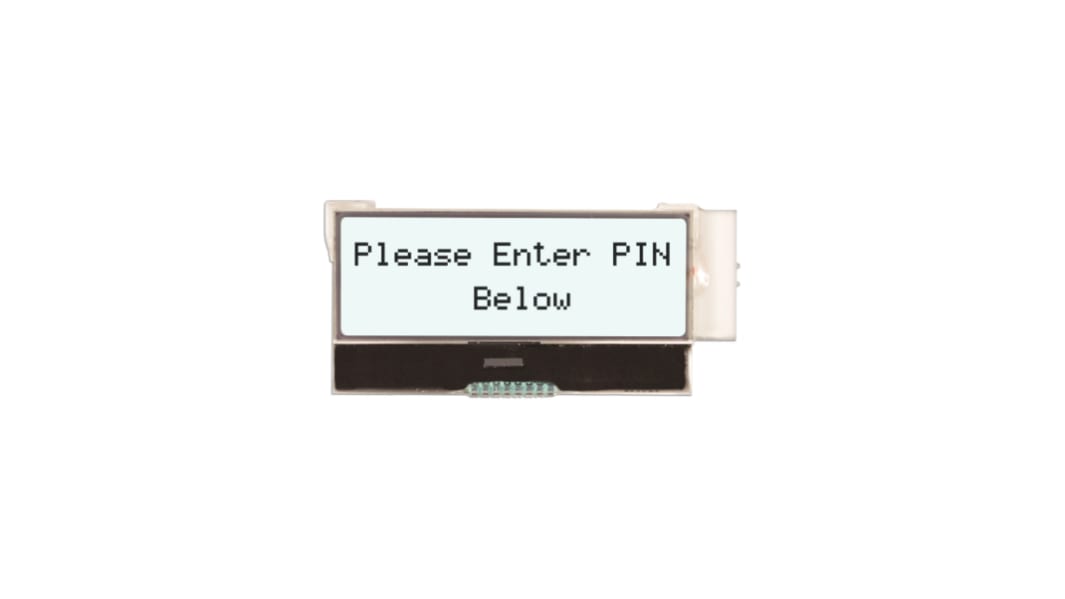

The NEWHAVEN DISPLAY INTERNATIONAL 16 x 2 character Chip-On-Glass (COG) LCD shows dark pixels when powered on. This display can achieve higher contrast and is visible with ambient light or a backlight. As a COG display, there's no PCB and the controller/driver is directly bonded to the glass of the display. The liquid crystal display offers a wide operating temperature range from -20 to 70 degrees Celsius. This display with built-in AiP31032 controller has a 6:00 optimal view, I2C interface, operates at 3.0V supply voltage and is RoHS compliant.
Display type FSTN
Display mode transflective
Backlight white
Display mode transflective
Backlight white
Specifications
Attribute | Value |
---|---|
Display Type | LCD |
Character Matrix | 2 Rows by 16 Characters |
Characters per Row | 16 |
Character Rows | 2 |
Character Width | 2.2mm |
Character Height | 4.7mm |
Viewing Area Dimensions | 45.7 x 14.3mm |
Interface Type | I2C |
Dimensions | 56.8 x 26.2 x 5.5mm |
Background Colour | White |
Touch Screen Type | None |
Illumination Colour | White |
Controller Type | AiP31032 |
Display Mode | Transflective |
Maximum Operating Temperature | -30°C |
Voltage Rating | 3V |
Minimum Operating Temperature | +80°C |
Series | NHD |
