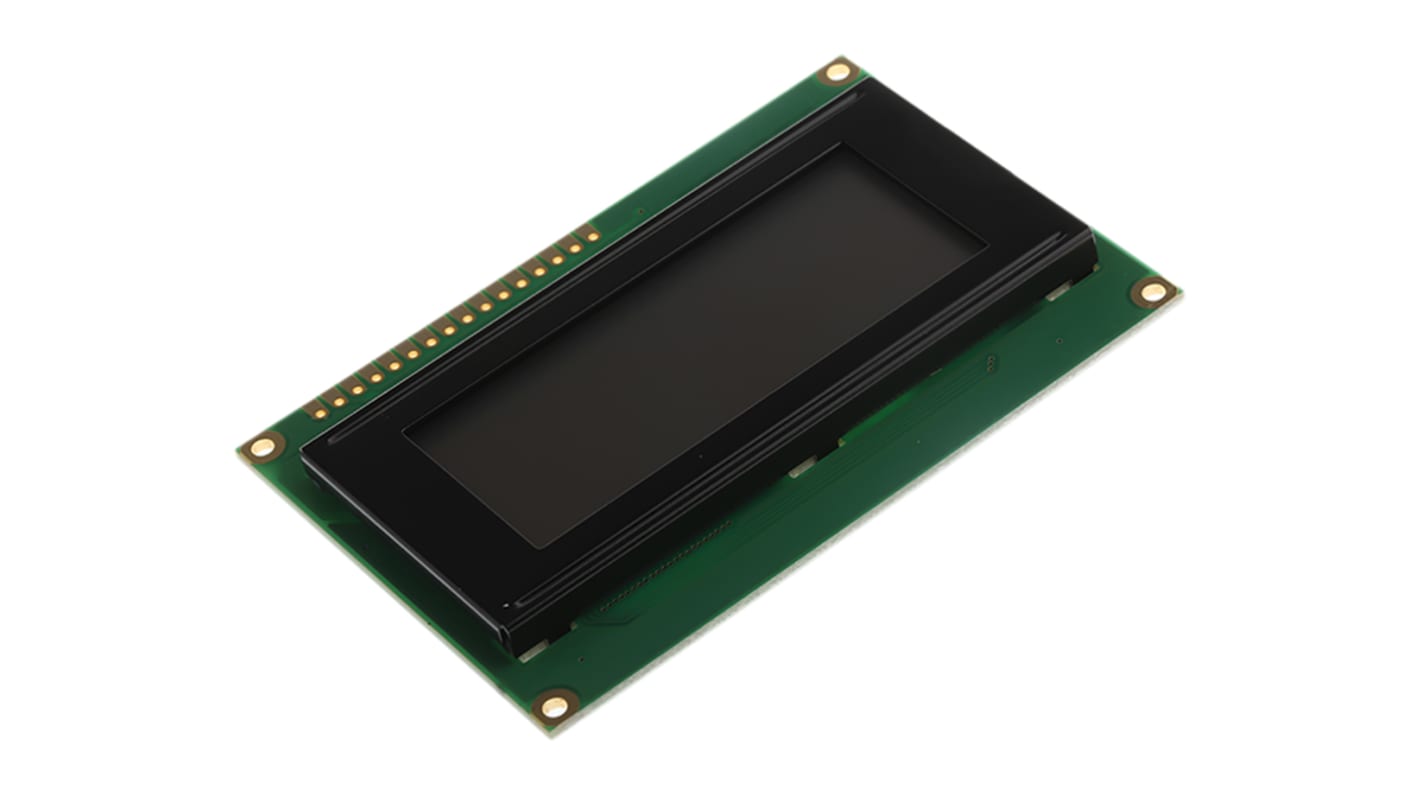

Name: Powertip PC1604ARSA Alphanumeric LCD Display, 4 Rows by 16 Characters, Reflective
Brand: Powertip
SKU: 294-8702
Price: 303.30 NOK
Availability: Discontinued

Powertip Reflective LCD TN / STN

Reflective alphanumeric TN and STN dot matrix modules with integral LCD display drivers utilising a 5x7 dot matrix format (except 20x4 which uses 5x8) with cursor.

160 characters and symbols
Supertwist (STN) modules give 100% improvement in contrast ratio and viewing angle compared to the Twisted Nematic (TN) type
CMOS controller and driver
Parallel Interface to 4 or 8 bit microprocessor
Display commands: clear, shift, on/off, read, write
Cursor commands: home, on/off, shift, set direction
Operating temperature range 0°C to +50°C

* All modules operate on +5V.d.c. which can be obtained by using voltage converter stock no. 651-490, in the semiconductors - power supply and control section.

Note

Reverse polarity connection to the module will cause irreparable damage.

Caution

Observe ANTI-STATIC precautions when storing or handling these LCD modules.

Powertip Alphanumeric LCD Displays

Select all	Attribute	Value
	Brand	Powertip
	Display Type	Alphanumeric
	Character Matrix	4 Rows by 16 Characters
	Character Rows	4
	Characters per Row	16
	Character Width	4.8mm
	Character Height	3mm
	Viewing Area Dimensions	62 x 25mm
	Viewing Area Height	62mm
	Viewing Area Width	25.6mm
	External Depth	9.7mm
	External Height	60mm
	External Width	87mm
	External Dimensions	87 x 9.7 x 60mm
	Controller Type	ST7066U
	Display Matrix Technology	STN, TN
	Display Mode	Reflective
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+50°C
	Operating Temperature Range	0 → +50°C
	Driver Mounting	COB

	Select all
	Brand Powertip
	Display Type Alphanumeric
	Character Matrix 4 Rows by 16 Characters
	Character Rows 4
	Characters per Row 16
	Character Width 4.8mm
	Character Height 3mm
	Viewing Area Dimensions 62 x 25mm
	Viewing Area Height 62mm
	Viewing Area Width 25.6mm
	External Depth 9.7mm
	External Height 60mm
	External Width 87mm
	External Dimensions 87 x 9.7 x 60mm
	Controller Type ST7066U
	Display Matrix Technology STN, TN
	Display Mode Reflective
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +50°C
	Operating Temperature Range 0 → +50°C
	Driver Mounting COB
