Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Function	NAND
	Mounting Type	Surface Mount
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	SOIC
	Pin Count	14
	Logic Family	ALS
	Maximum Operating Supply Voltage	5.5 V
	Maximum High Level Output Current	-0.1mA
	Maximum Propagation Delay Time @ Maximum CL	33 ns @ 4.5 V → 5.5 V
	Minimum Operating Supply Voltage	4.5 V
	Maximum Low Level Output Current	24mA
	Length	8.65mm
	Output Type	Open Collector
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+70 °C
	Minimum Operating Temperature	0 °C
	Dimensions	8.65 x 3.91 x 1.58mm
	Width	3.91mm
	Height	1.58mm

	Select all
	Brand Texas Instruments
	Logic Function NAND
	Mounting Type Surface Mount
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type SOIC
	Pin Count 14
	Logic Family ALS
	Maximum Operating Supply Voltage 5.5 V
	Maximum High Level Output Current -0.1mA
	Maximum Propagation Delay Time @ Maximum CL 33 ns @ 4.5 V → 5.5 V
	Minimum Operating Supply Voltage 4.5 V
	Maximum Low Level Output Current 24mA
	Length 8.65mm
	Output Type Open Collector
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +70 °C
	Minimum Operating Temperature 0 °C
	Dimensions 8.65 x 3.91 x 1.58mm
	Width 3.91mm
	Height 1.58mm

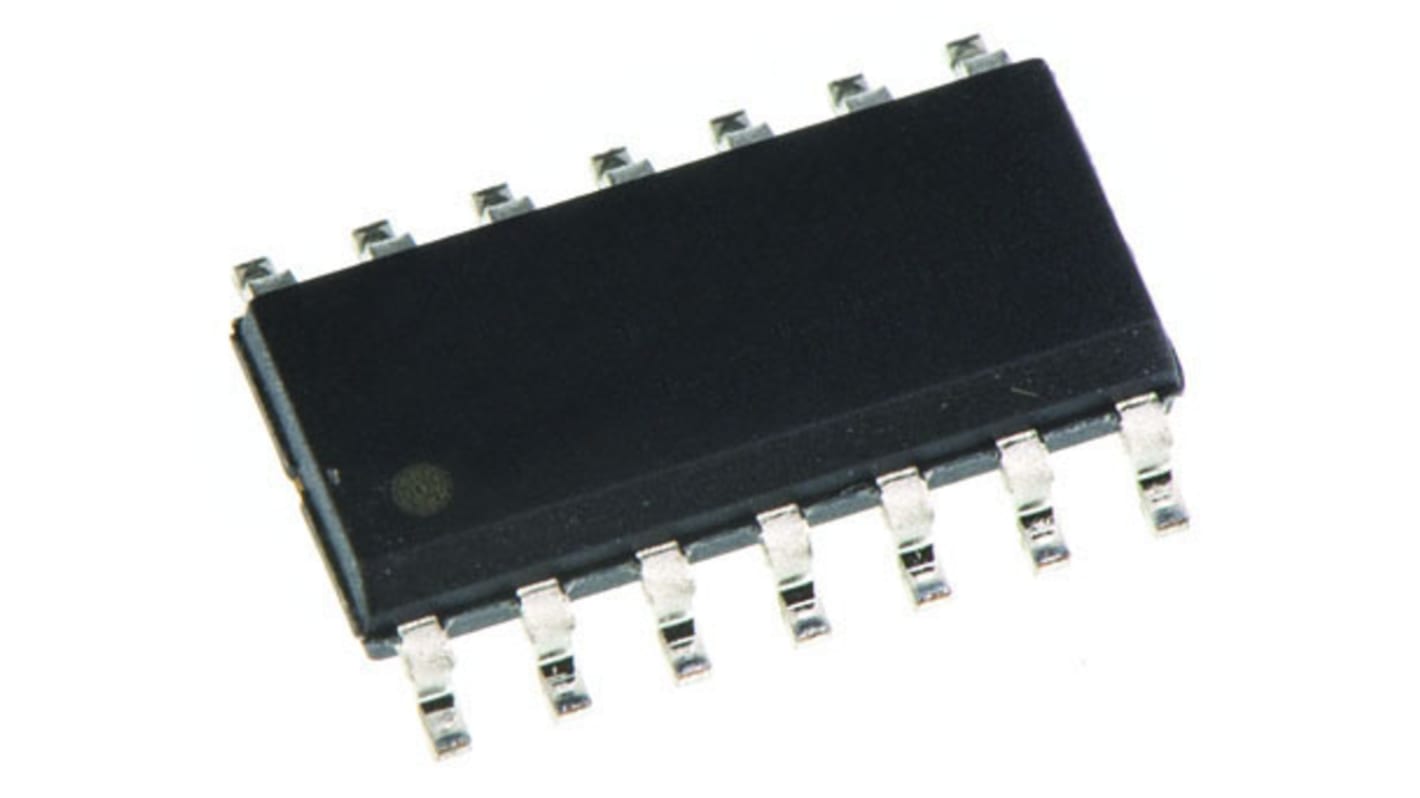

Texas Instruments SN74ALS38BD, Quad 2-Input NAND Logic Gate, 14-Pin SOIC

FREE delivery for orders over kr 500,00

74ALS Family, Texas Instruments
