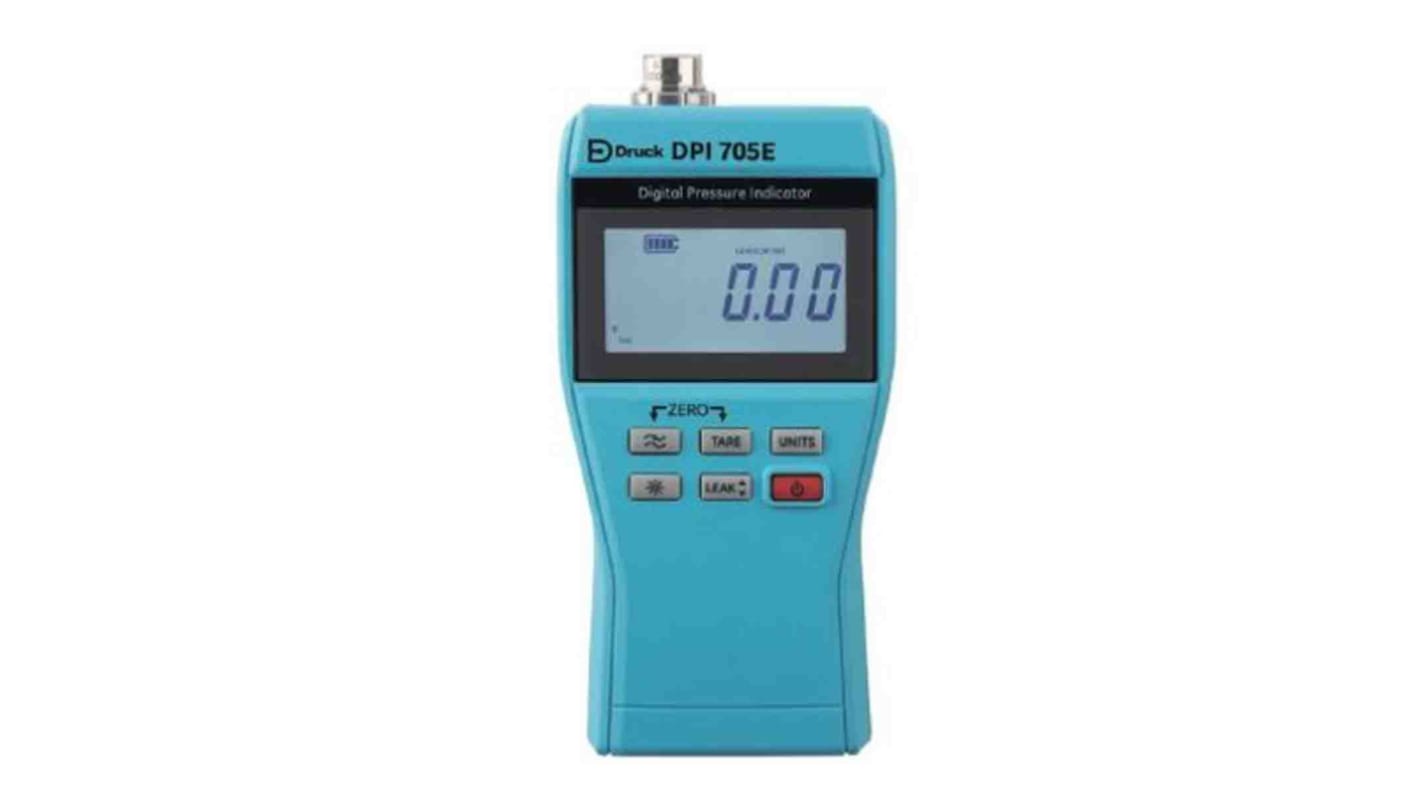

Druck DPI705E G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 2 bar, RSCAL

RS Stock No.:: 201-2961
Mfr. Part No.:: DPI705E-2-07G-P1-H0-U0-OP0
Brand:: Druck

Druck DPI705E G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 2 bar, RSCAL

Subtotal (1 unit)*

Kr. 10 451,94

(exc. VAT)

Kr. 13 064,92

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

Plus 7 unit(s) shipping from 09 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 10 451,94

*price indicative

RS Stock No.:: 201-2961
Mfr. Part No.:: DPI705E-2-07G-P1-H0-U0-OP0
Brand:: Druck

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Druck
	Accuracy	±0.05 %
	Product Type	Manometer
	Number of Pressure Ports	1
	Maximum Pressure Measurement	2bar
	Minimum Pressure Measurement	-25mbar
	Pressure Port Type	G1/8
	Leak Testing	Yes
	Minimum/Maximum Recordings	Yes
	Model Number	DPI705E
	Intrinsically Safe	No
	IP Rating	IP54
	Power Source	4 x AA
	Minimum Operating Temperature	-10°C
	Battery Type	AA
	Maximum Overpressure	1400bar
	Battery Life	1year
	Display Type	LCD Backlight
	Maximum Operating Temperature	50°C
	Length	200mm
	Height	43mm
	Standards/Approvals	CE, RCM, RoHS, UL 61010-1
	Width	95mm
	Weight	563g
	Hazardous Area Certification	No
	Calibrated	RSCAL

	Select all
	Brand Druck
	Accuracy ±0.05 %
	Product Type Manometer
	Number of Pressure Ports 1
	Maximum Pressure Measurement 2bar
	Minimum Pressure Measurement -25mbar
	Pressure Port Type G1/8
	Leak Testing Yes
	Minimum/Maximum Recordings Yes
	Model Number DPI705E
	Intrinsically Safe No
	IP Rating IP54
	Power Source 4 x AA
	Minimum Operating Temperature -10°C
	Battery Type AA
	Maximum Overpressure 1400bar
	Battery Life 1year
	Display Type LCD Backlight
	Maximum Operating Temperature 50°C
	Length 200mm
	Height 43mm
	Standards/Approvals CE, RCM, RoHS, UL 61010-1
	Width 95mm
	Weight 563g
	Hazardous Area Certification No
	Calibrated RSCAL

Datasheet DPI-705E Series

COO (Country of Origin):: GB

Druck Manometer, 2 bar Maximum Pressure Measurement, -25m bar Minimum Pressure Measurement - DPI705E-2-07G-P1-H0-U0-OP0

This handheld device measures gas and low-pressure differentials for field and workshop use. It operates across a range from -25 mbar to 2 bar, provides leak-testing capability and presents results on an LCD with backlight for visibility in dim conditions. The instrument is designed for portable pressure checks where ingress protection is required and where intrinsically safe certification is not necessary.

Features and Benefits:

• ±0.05% accuracy delivers precise readings for calibration tasks
• IP54 rating protects against dust ingress and light water spray
• 4 x AA long-life battery supply supports extended field use
• G1/8 pressure port enables straightforward connection to test rigs
• 1400 bar maximum overpressure tolerance safeguards against spikes

Applications

• Suitable for on-site leak testing of pneumatic systems
• Used for commissioning low-pressure control valves
• Ideal for pressure verification in workshop calibration benches
• Can be used for HVAC differential pressure checks
• Used with portable rigs requiring LCD visibility in low light

What port type does it use for connection?

It uses a G1/8 threaded pressure port suitable for standard fittings.

How long will the batteries typically last in service?

The four AA cells provide approximately one year of operational life under normal use patterns.

What environmental temperatures can be expected during operation?

Operation is specified between -10°C and 50°C.

Is the instrument suitable for hazardous-area deployment?

It has no hazardous-area certification and is not rated for intrinsically safe environments.

Note

Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
